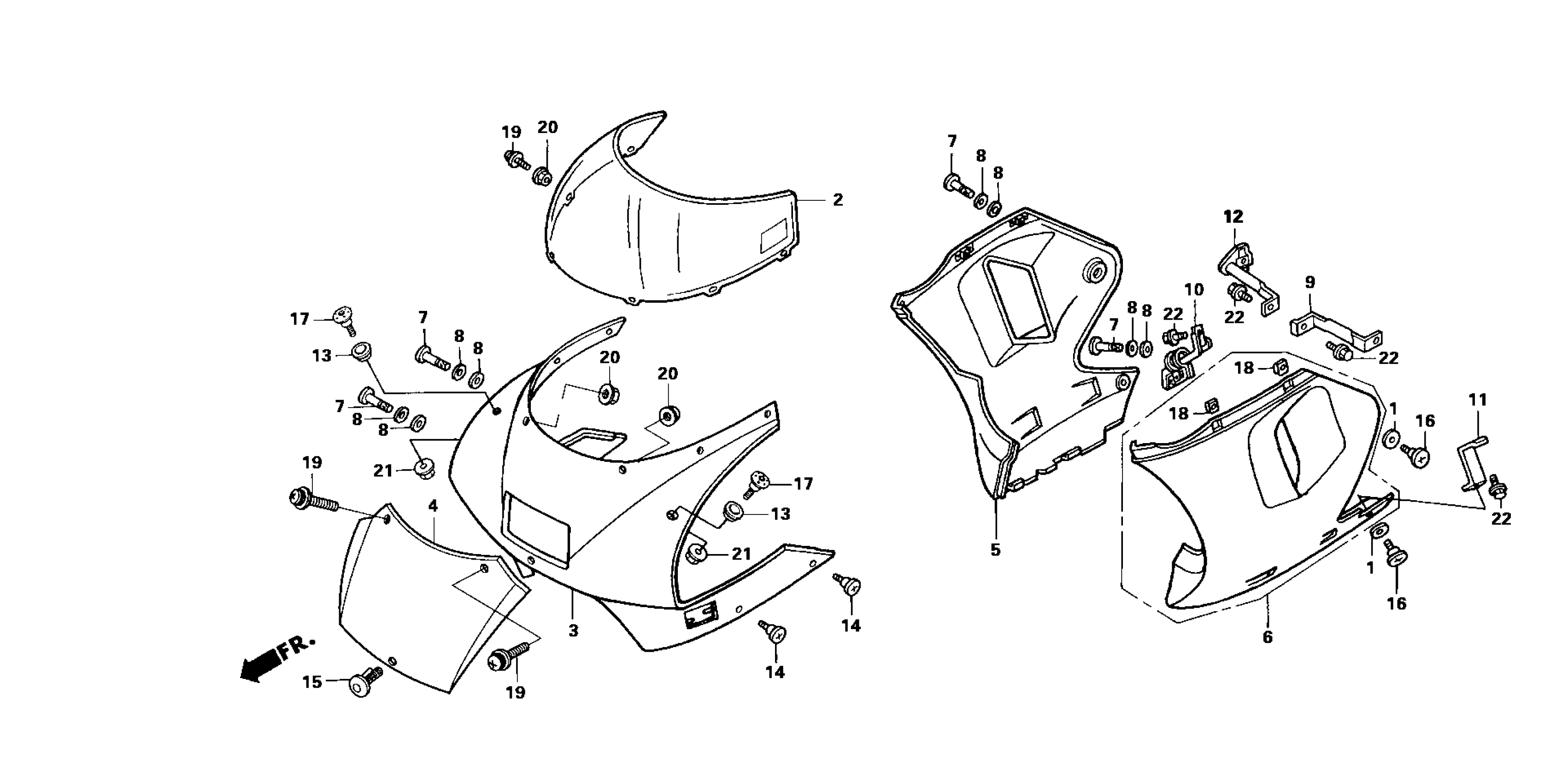

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 COWL Diagram

#

Description
Price

1

RUBBER, FR. FUEL TANK

17627-467-000

$2.17

2

WINDSCREEN ASSY.

64100-GT4-405

Unavailable

2

WINDSCREEN ASSY. This part replaces 64100-GT4-710.

64100-GT4-405

Unavailable

3

COWL (UPPER)

64200-NLA-000

Unavailable

4

PLATE, FR. NUMBER

64210-NLA-000

Unavailable

5

COWL, R. (LOWER)

64250-NLA-000

Unavailable

6

COWL, L. (LOWER)

64260-NLA-000

Unavailable

7

STUD (6X14) This part replaces 64507-MN4-000.

64508-ML7-921

$13.37

8

RETAINER (6MM) This part replaces 64509-KE8-700.

64509-KE8-701

$2.25

9

STAY L, FR. COWL

64532-GT4-000

Unavailable

10

STAY R, RR. COWL

64533-GT4-000

$15.51

11

STAY L, RR. COWL

64534-GT4-000

Unavailable

12

STAY R, FR. COWL

64535-GT4-000

Unavailable

13

COLLAR, REARVIEW MIRROR

88112-GAA-750

Unavailable

14

SCREW, SPECIAL (5MM)

90102-GT4-000

$2.54

15

CLIP, BUMPER SETTING

90108-SW3-003

$4.96

16

SCREW, FAIRING SETTING

90112-GT4-000

$5.43

17

SCREW, PAN (6X14)

90113-MAT-000

Unavailable

18

NUT, SPRING (5MM)

90320-GC3-000

Unavailable

19

SCREW-WASHER (4X14)

93891-04014-07

$0.93

20

NUT, FLANGE (4MM)

94050-04000

$1.12

21

NUT, FLANGE (6MM)

94050-06000

$0.59

22

BOLT, FLANGE (6X12)

95701-06012-07

$1.48
