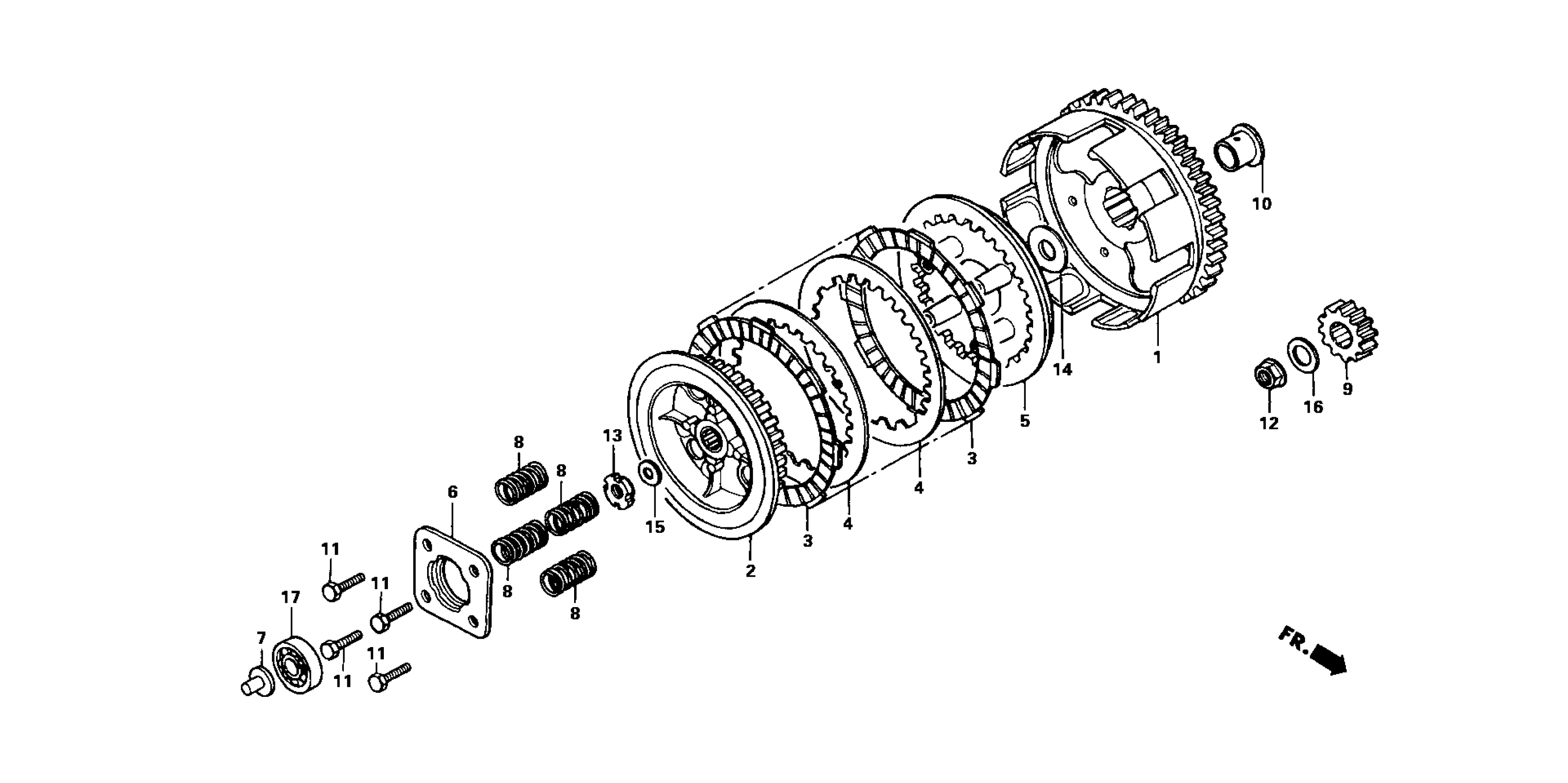

Honda NSR50RA (04) MINI 50, JPN, VIN# RS50-1100516 TO RS50-1101643 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER

22100-GT4-000

Unavailable

2

CENTER, CLUTCH

22121-GT5-000

$47.28

3

DISK, CLUTCH FRICTION

22201-MR8-000

$14.79

4

PLATE, CLUTCH

22311-KN4-680

$6.31

4

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

5

PLATE, CLUTCH PRESSURE

22350-115-020

$41.76

6

PLATE, CLUTCH LIFTER

22361-GT4-970

Unavailable

7

ROD, CLUTCH LIFTER

22365-GT4-970

Unavailable

8

SPRING, CLUTCH

22401-166-000

$4.67

9

GEAR, PRIMARY DRIVE (17T)

23121-GE2-000

Unavailable

10

COLLAR (17X30.6)

28242-GT4-000

Unavailable

11

BOLT, HEX. (6X25)

90030-KL8-740

$4.06

12

NUT, FLANGE (12MM)

94050-12000

$1.49

13

NUT, LOCK (14MM)

90231-KBA-930

$2.36

14

WASHER, PLAIN (17MM)

90401-GC4-730

$6.45

15

WASHER B, THRUST (14MM)

90428-958-000

$4.66

16

WASHER, PLAIN (12MM) This part replaces 90440-166-000.

90440-GT4-970

$2.48

17

BEARING, RADIAL BALL This part replaces 91007-KE1-003.

91007-KM7-702

Unavailable

17

BEARING, RADIAL BALL

91007-KM7-702

Unavailable

17

BEARING, RADIAL BALL This part replaces 91008-KE8-003.

91007-KM7-702

Unavailable
