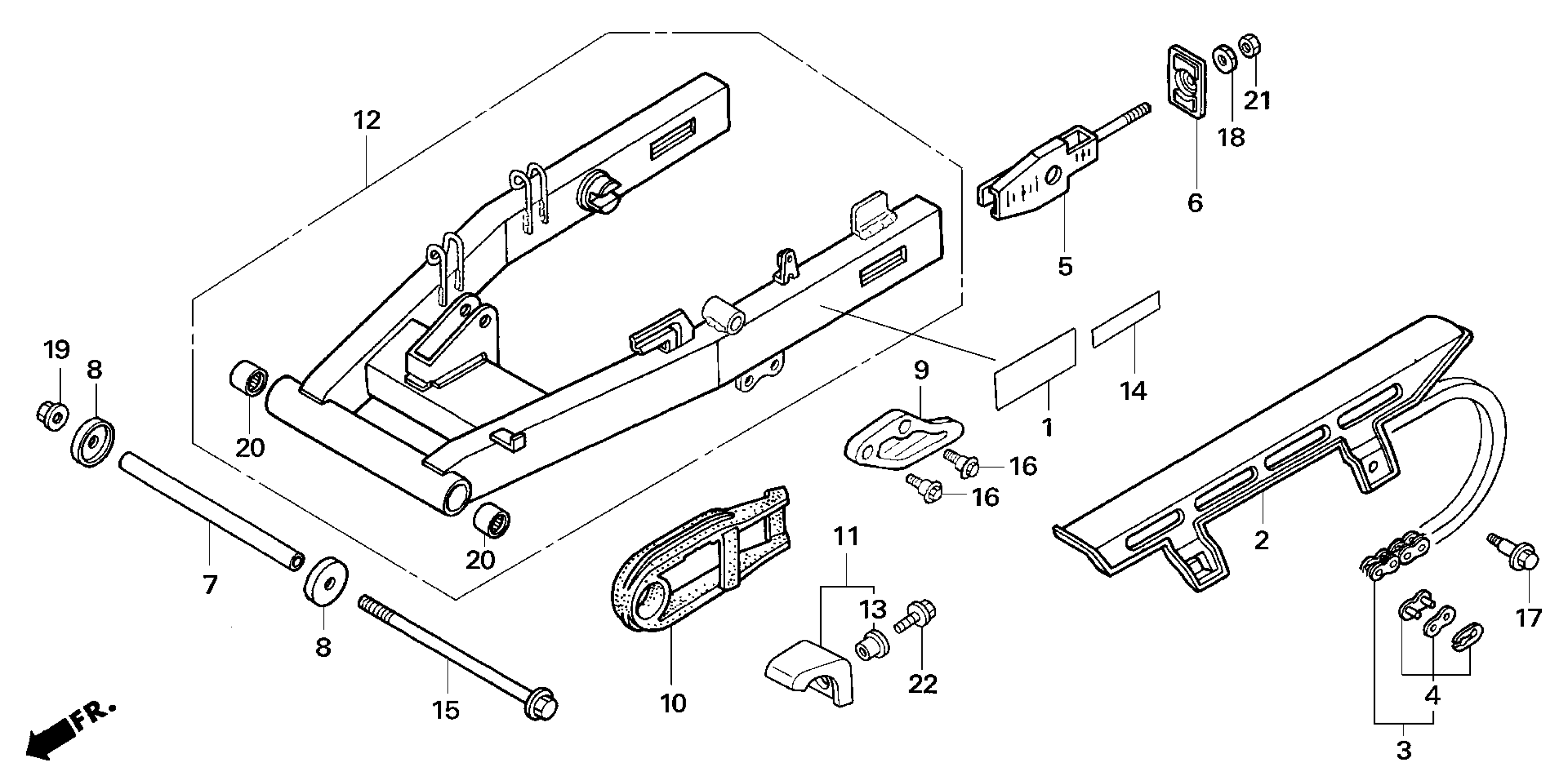

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 SWINGARM Diagram

#

Description
Price

2

CASE, DRIVE CHAIN

40510-GT4-020

Unavailable

3

CHAIN, DRIVE (RK420MSZ-100RJ) (RK EXCEL)

40530-NX2-003

Unavailable

4

MASTER LINK (RK EXCEL)

40531-GM7-641

$3.31

5

ADJUSTER, CHAIN

40543-GEY-910

Unavailable

5

ADJUSTER, CHAIN This part replaces 40543-GS3-000.

40543-GEY-910

Unavailable

6

CAP, SWINGARM END

40546-GS3-000

Unavailable

7

COLLAR, SWINGARM PIVOT (NOT AVAILABLE)

52141-GT4-970

Unavailable

8

DUST SEAL (31X41)

52144-GT4-971

Unavailable

9

GUARD, CHAIN

52156-GAN-670

$42.30

10

SLIDER, CHAIN

52171-GS9-000

Unavailable

11

SLIDER ASSY., CHAIN (LOWER)

52185-GN1-000

$19.54

12

SWINGARM SET

52200-NX2-000

Unavailable

13

WASHER (6MM)

61107-KK6-000

$3.06

14

LABEL, NOISE INFORMATION

87529-KA3-730

$3.39

15

BOLT, FLANGE (12X252)

90103-GT4-000

$15.52

16

BOLT, FLANGE (6MM)

90110-147-000

$3.83

17

BOLT, FLANGE (6MM)

90111-187-000

$5.59

18

NUT, SPECIAL (6MM)

90302-KBP-900

$1.94

19

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

20

BEARING, NEEDLE (20X26X20) (NTN)

91070-GC4-601

$24.72

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

BOLT, FLANGE (6X14) (SOURCE: VINTAGE PARTS INC.)

96300-06014-07

Unavailable
