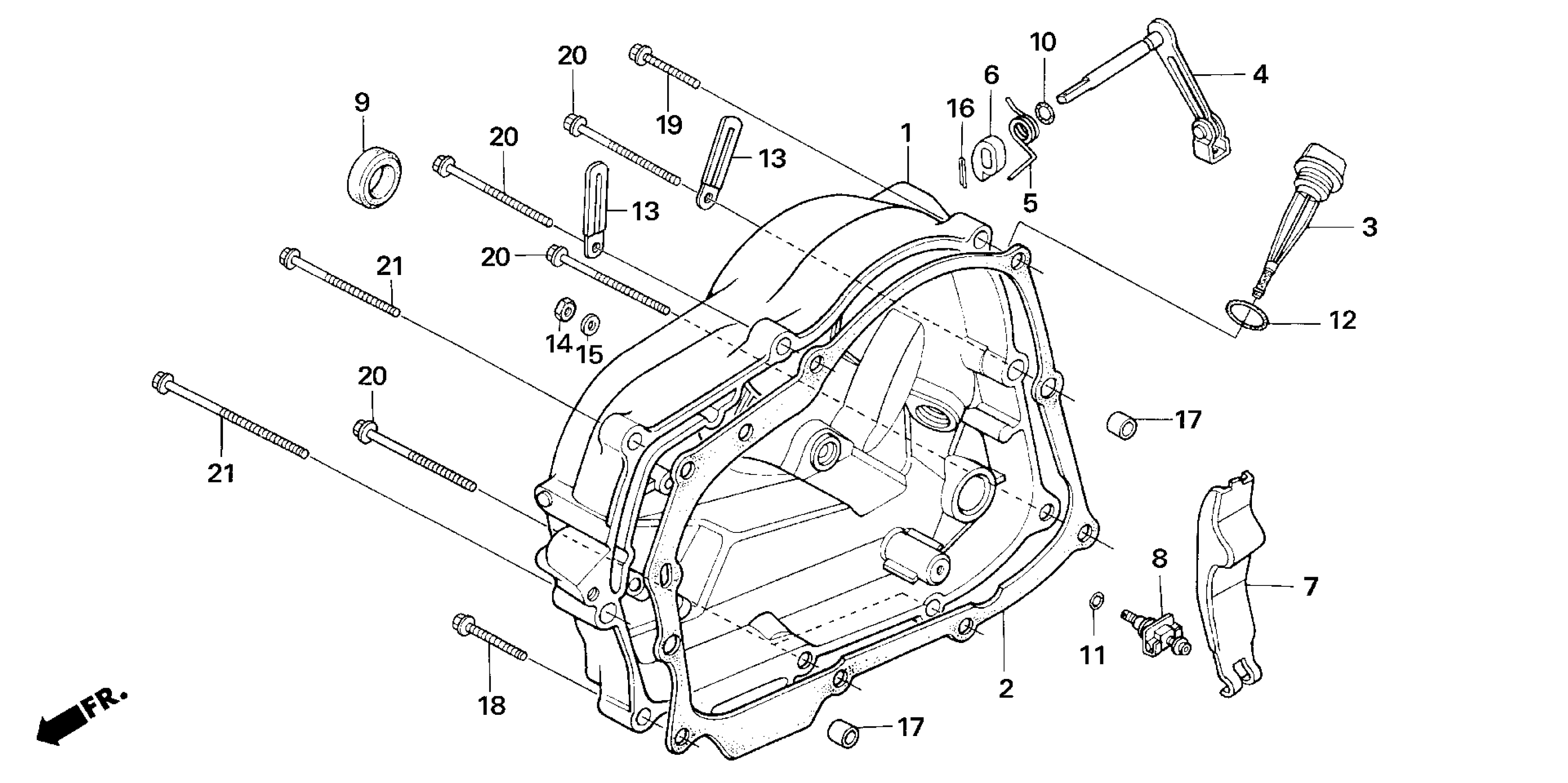

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-GN1-872

Unavailable

GASKET, R. This part replaces 11393-KN4-750.

11393-KN4-752

$16.94

GASKET, R. This part replaces 11393-KN4-751.

11393-KN4-752

$16.94

DIPSTICK, OIL

15650-KA9-680

$7.78

LEVER, CLUTCH

22810-NX2-000

Unavailable

SPRING, CLUTCH LEVER

22815-149-000

$2.54

CAM, CLUTCH LIFTER

22821-116-000

$7.75

LEVER, CLUTCH ADJUSTING

22830-436-000

$22.56

SCREW, CLUTCH ADJUSTING

22831-436-000

$26.90

OIL SEAL (18X29X7)

91204-286-003

$4.31

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

O-RING (6MM)

91301-704-000

$2.92

O-RING (18X3)

91307-035-000

$2.92

CLIP (2X60)

91410-679-000

$10.06

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

BOLT, FLANGE (6X100)

96001-06100-00

$1.95
