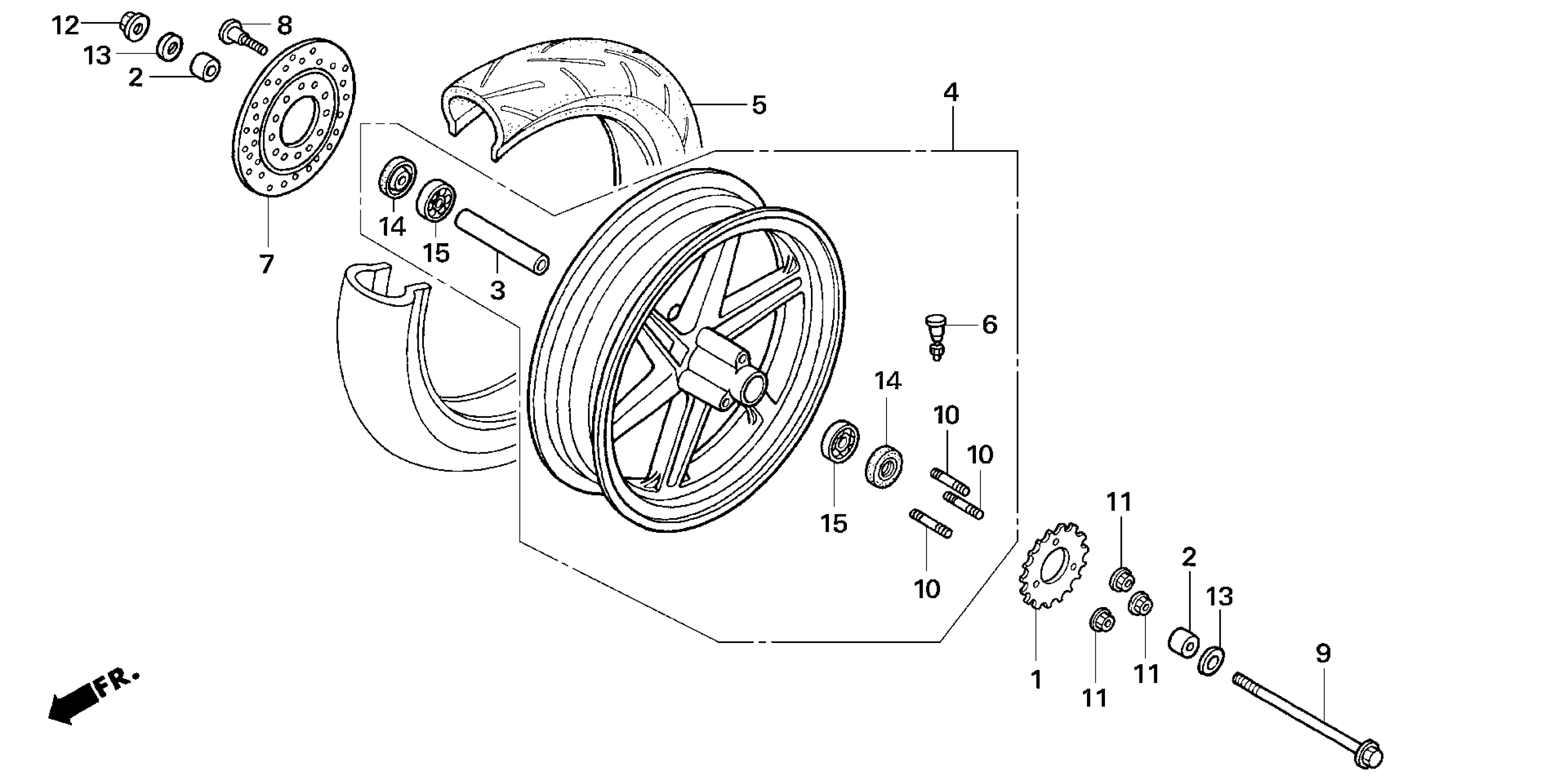

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 REAR WHEEL Diagram

SPROCKET, FINAL DRIVEN (28T)

41201-NX2-000

Unavailable

COLLAR, RR. WHEEL SIDE

42311-GS9-000

Unavailable

COLLAR, RR. WHEEL DISTANCE

42620-GAS-900

Unavailable

WHEEL SUB-ASSY., RR. *NH105* (MAT BLACK)

42650-KTK-000ZD

Unavailable

TIRE, RR. (DUNLOP) (NOT AVAILABLE)

42711-NLA-004

Unavailable

VALVE, RIM (CHENG SHIN)

42753-KBN-902

$8.39

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.44

DISK, RR. BRAKE

43251-KTK-003

$120.39

BOLT, FR. DISK (8X24) (SAGA)

90105-KL8-741

$5.50

BOLT, FR. DISK (8X24)

90105-KR3-000

$5.64

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.78

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.78

BOLT, RR. SWINGARM PIVOT

90121-KE2-980

$40.10

BOLT, STUD (10X31)

90125-GE2-740

$5.78

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.42

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

WASHER, PLAIN (12MM)

90440-GT4-970

$2.38

OIL SEAL (26X37X6) (ARAI)

90753-051-003

$7.13

BEARING, RADIAL BALL (6301U)

96140-63010-10

$13.32
