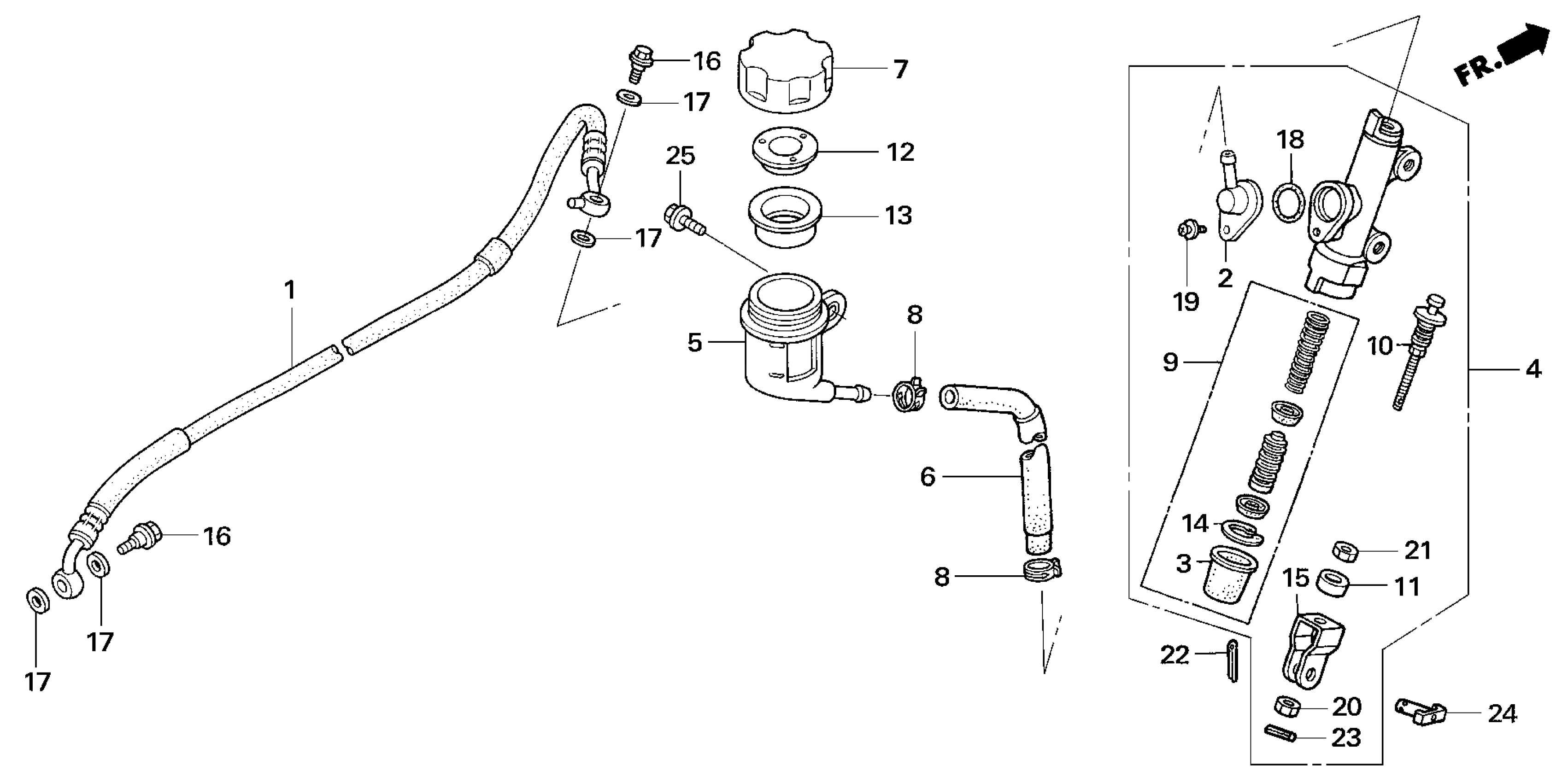

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRK

43310-NX2-003

Unavailable

2

CONNECTOR

43503-MEE-006

$7.05

3

BOOT

43504-MB2-006

$10.04

4

SUB-ASSY., RR. MASTER CYLINDE

43510-NX2-006

Unavailable

5

CUP, MASTER CYLINDER OIL

43511-KS6-702

$25.90

6

HOSE, MASTER CYLINDER OIL

43512-NX2-006

Unavailable

7

CAP, MASTER CYLINDER

43513-KS6-701

$14.57

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

9

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

9

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

10

ROD, PUSH (NISSIN)

43530-KBA-921

$21.00

11

COLLAR, PUSH ROD

43532-GT4-000

$8.18

12

PLATE, DIAPHRAGM

45518-GM9-711

$4.48

13

DIAPHRAGM

45520-GM9-711

$9.15

14

CIRCLIP

46182-500-013

$4.90

15

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-MB2-006

Unavailable

16

BOLT, OIL (10X22)

90145-MS9-612

$7.54

17

WASHER, OIL BOLT

90545-300-000

$3.99

18

O-RING (14.8X2.4)

91212-422-006

$2.56

19

SCREW-WASHER (4X12)

93893-04012-07

$1.49

19

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

20

NUT, HEX. (8MM)

94001-08000-0S

$1.49

21

NUT, HEX. (8MM)

94002-08000-0S

$1.49

22

PIN, SPLIT (2.0X15)

94201-20150

$1.49

23

PIN, SPRING (2X10)

94305-20102

$1.49

24

PIN D, JOINT

95015-54000

$4.24

25

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
