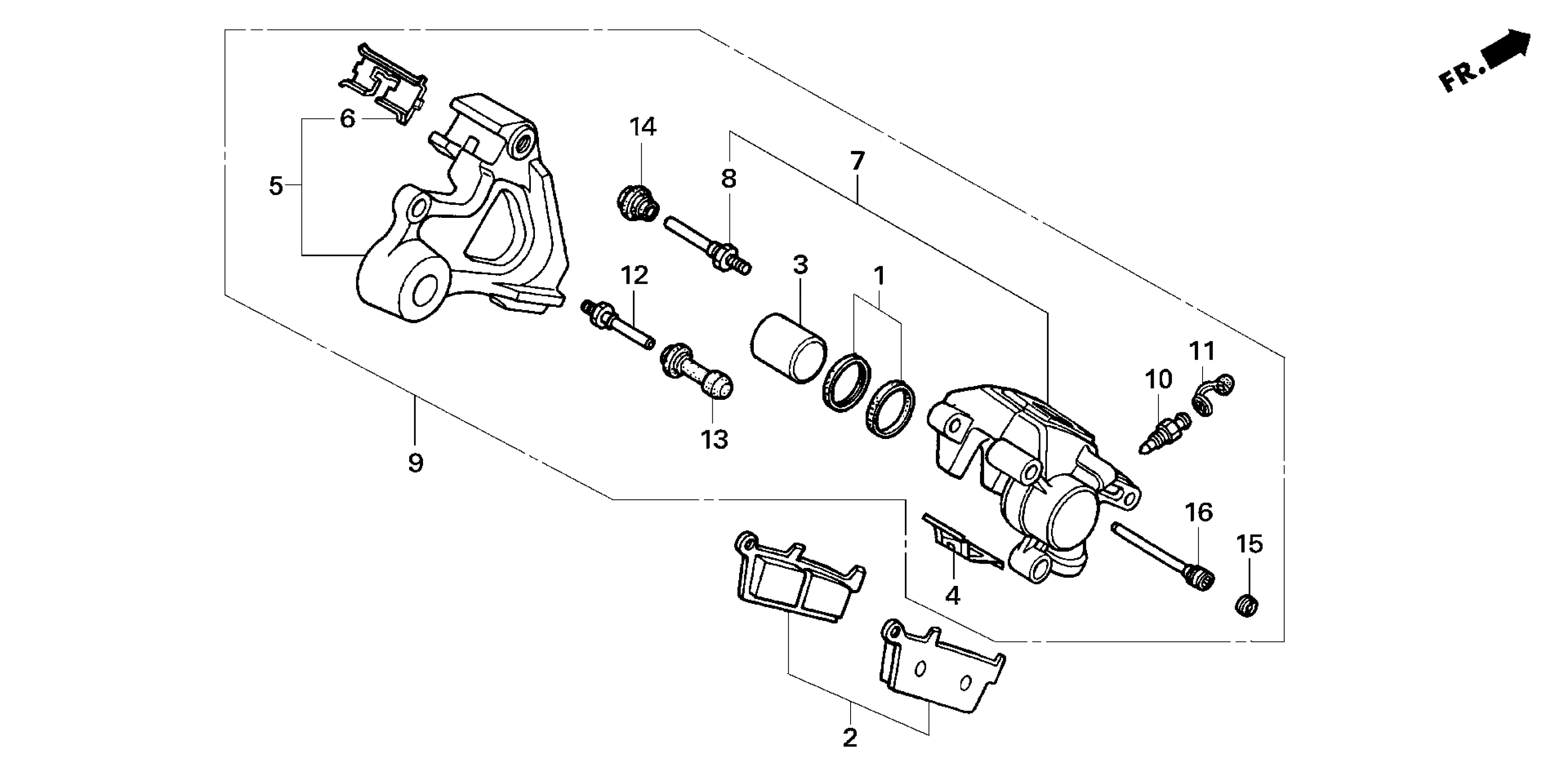

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.00

PAD SET, BRAKE This part replaces 06435-GT4-405.

06435-GT4-415

$43.01

PISTON

43107-MA3-006

$30.30

SPRING, PAD

43108-MY6-671

$5.04

BRACKET, RR.

43110-GT4-711

$81.28

RETAINER

43112-GT4-006

$6.51

BODY, RR. CALIPER

43130-GT4-306

Unavailable

BOLT, PIN

43131-KW3-006

$9.48

CALIPER SUB-ASSY., RR.

43150-GT4-305

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

BOLT, PIN

45131-166-016

$7.28

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PLUG, PIN

45203-MG3-016

$4.88

PIN, HANGER

45215-KA3-732

$10.56
