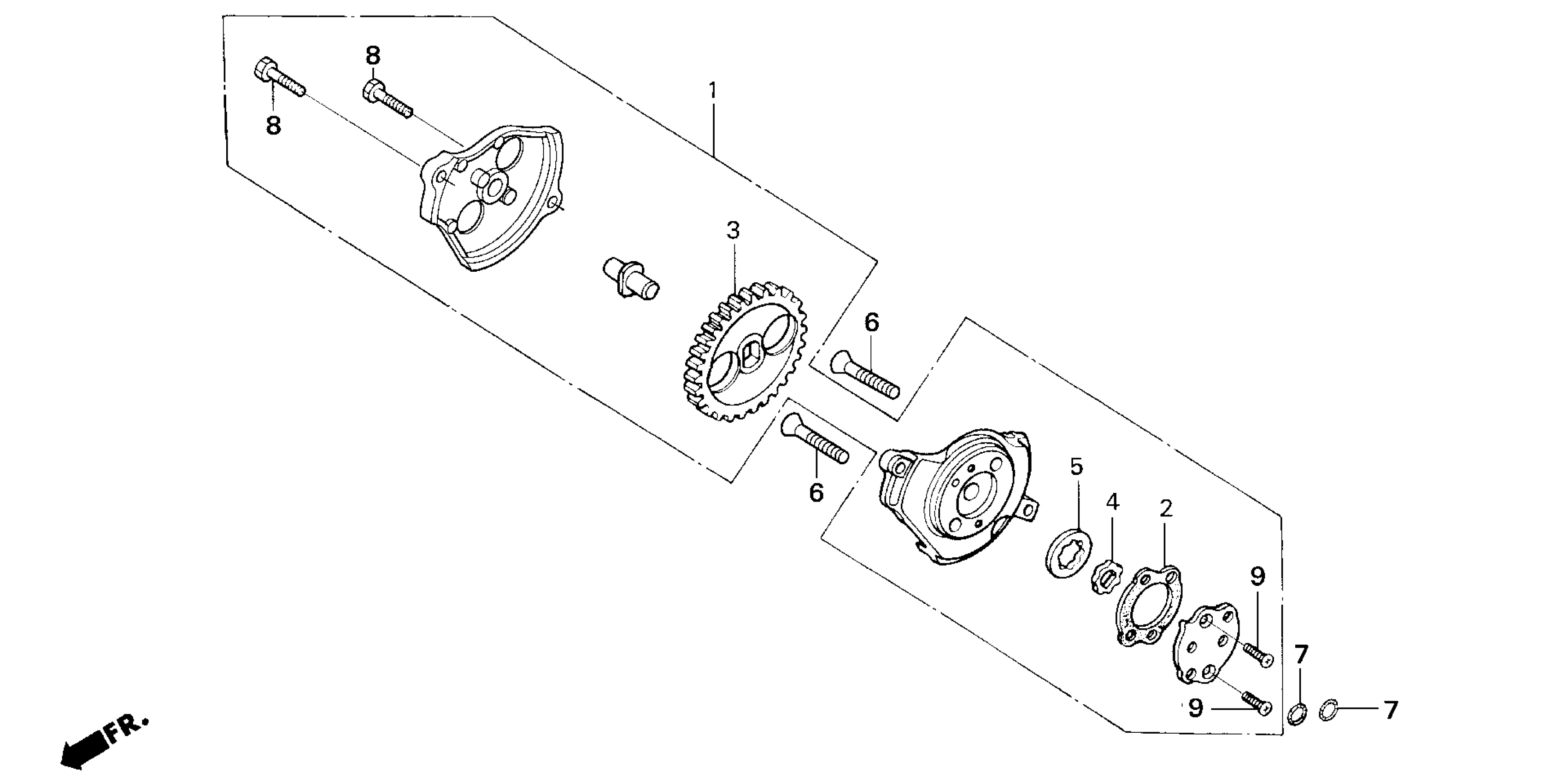

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 OIL PUMP Diagram

PUMP ASSY., OIL

15100-436-000

$209.79

GASKET, OIL PUMP

15126-107-020

$1.70

GEAR, OIL PUMP DRIVE (35T)

15131-149-000

Unavailable

ROTOR, OIL PUMP (INNER)

15331-436-000

Unavailable

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15332-436-000

Unavailable

SCREW, FLAT (6X30)

90101-440-000

$2.51

O-RING (9.4X2.4)

91304-KK3-830

$2.31

BOLT, HEX. (5X18)

92101-05018-0H

$1.49

SCREW, FLAT (4X12)

93600-04012-0A

$1.49
