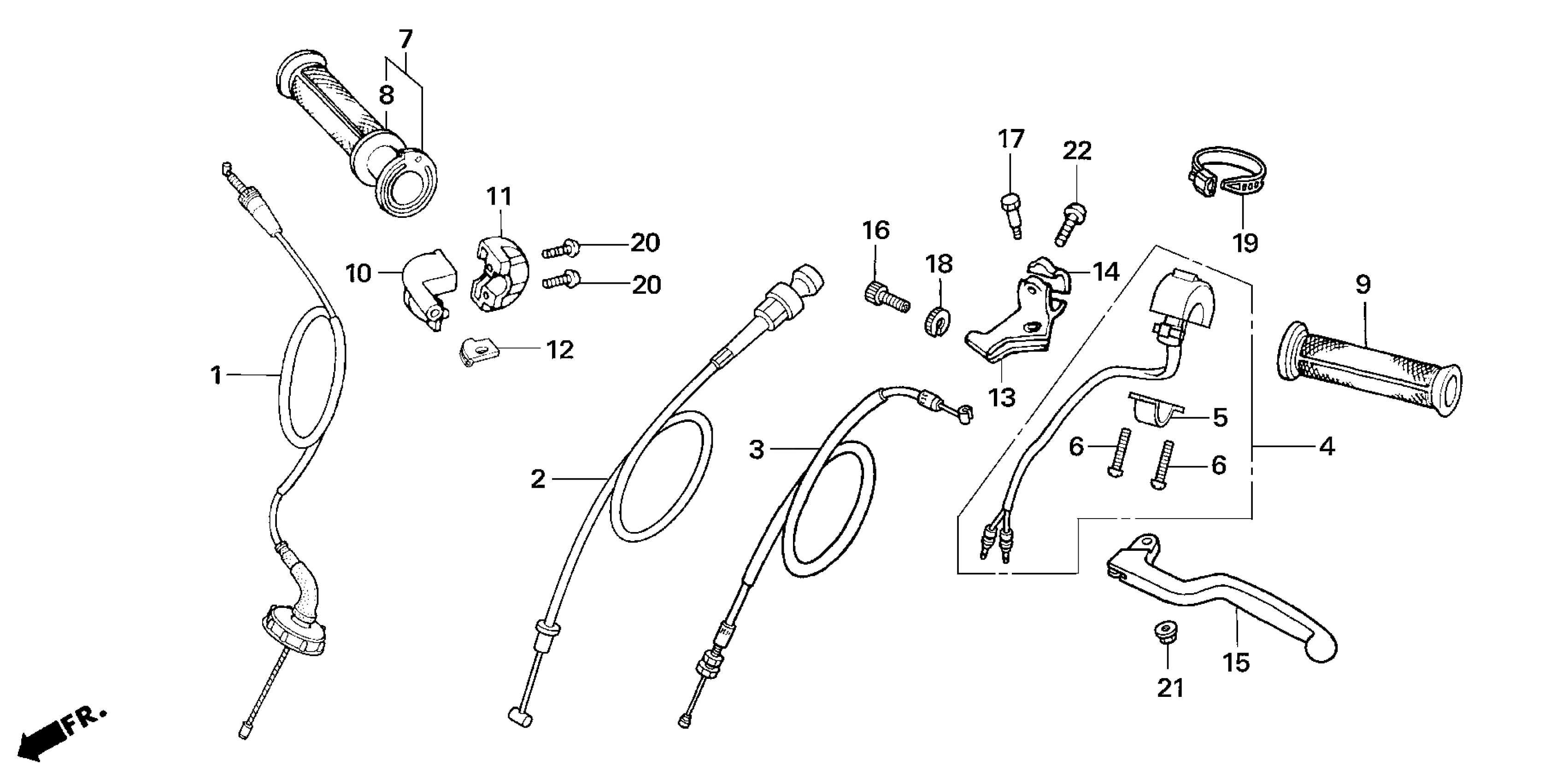

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 HANDLE LEVER + SWITCH + CABLE Diagram

CABLE, THROTTLE

17920-NX2-305

Unavailable

CABLE, CHOKE

17950-NX2-000

Unavailable

CABLE, CLUTCH

22870-NX2-000

Unavailable

SWITCH ASSY., STOP This part replaces 35130-KR8-000.

35130-KR8-010

$41.20

SWITCH ASSY., STOP

35130-KR8-010

$41.20

PLATE, SETTING

35132-KR5-013

$5.00

SCREW, PAN (4X12)

35133-KJ2-003

$2.39

GRIP, THROTTLE

53140-NX2-000

Unavailable

GRIP, R. HANDLE

53165-GM9-741

$8.80

GRIP, L. HANDLE (COO) This part replaces 53166-GM9-740.

53166-HP2-305

$7.50

HOUSING, THROTTLE (UPPER)

53167-KA2-010

$20.89

HOUSING, THROTTLE (LOWER)

53168-KA2-010

$19.52

SLIDER, THROTTLE

53169-KA2-000

$4.85

BRACKET, L. HANDLE LEVER

53172-KA3-730

$38.78

HOLDER, L. LEVER BRACKET

53174-KA3-730

$23.53

LEVER, L. HANDLEBAR

53178-KZ4-A10

$22.28

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

NUT, FIXING

90321-MA6-750

$10.45

BAND, WIRE (95MM)

90650-KV6-003

$3.12

SCREW, PAN (5X16)

93500-05016-0G

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
