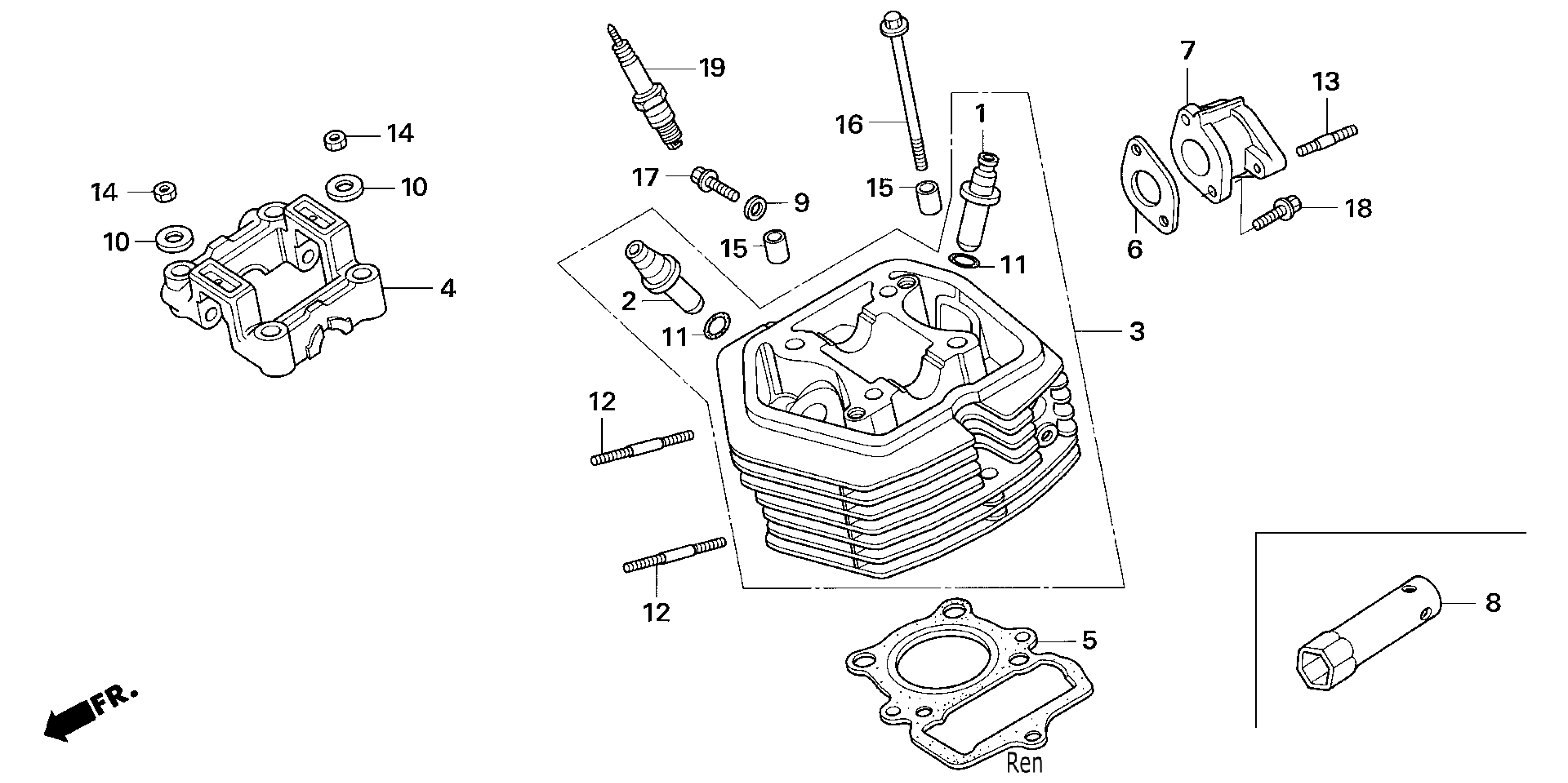

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-149-300.

12021-149-405

$11.86

1

GUIDE, VALVE

12021-149-405

$11.86

2

GUIDE, VALVE This part replaces 12023-116-300.

12023-465-405

$18.90

2

GUIDE, VALVE

12023-465-405

$18.90

3

CYLINDER HEAD This part replaces 12200-KN4-A60.

12200-KN4-A61

$274.87

3

CYLINDER HEAD

12200-KN4-A61

$274.87

4

HOLDER, CAMSHAFT

12210-149-020

$114.85

5

GASKET, CYLINDER HEAD

12251-KN4-751

$23.60

6

GASKET This part replaces 16229-KN4-750.

16229-KN4-752

$4.48

6

GASKET This part replaces 16229-KN4-751.

16229-KN4-752

$4.48

7

PIPE, INLET

17110-NX2-000

Unavailable

8

WRENCH, BOX (P16) (NOT AVAILABLE)

89216-KW3-000

Unavailable

9

WASHER A (6MM)

90478-700-000

$1.49

10

WASHER (8MM)

90483-028-000

$1.51

11

O-RING (10X1.6)

91301-200-000

$3.01

12

BOLT, STUD (6X32)

92700-06032-0B

$1.69

13

BOLT, STUD (6X28)

92712-06028-0B

$1.49

14

NUT, HEX. (8MM)

94002-08200-0S

$1.49

15

PIN, DOWEL (10X16)

94301-10160

$2.28

16

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

17

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

18

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

19

SPARK PLUG (CR6HSA) (NGK) | (Optional).

98056-56718

$2.62

19

SPARK PLUG (U20FSR-U) (DENSO) | (Optional).

98056-56726

$2.54

19

SPARK PLUG (CR7HSA) (NGK)

98056-57718

$2.62

19

SPARK PLUG (U22FSR-U) (DENSO)

98056-57726

$2.54

19

SPARK PLUG (CR8HSA) (NGK) | (Optional).

98056-58718

$2.62

19

SPARK PLUG (U24FSR-U) (DENSO) | (Optional).

98056-58726

$2.54
