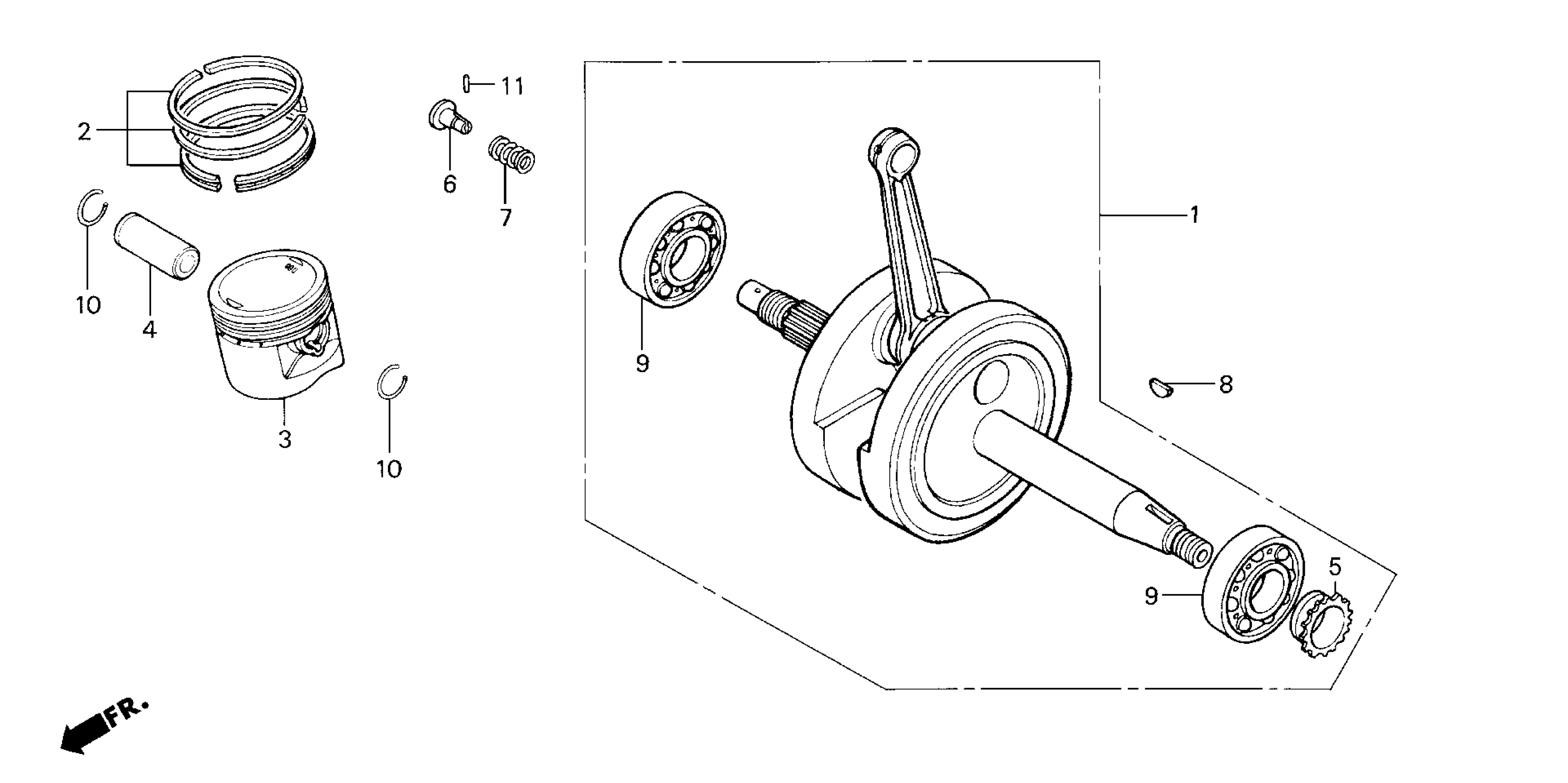

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 CRANKSHAFT + PISTON Diagram

CRANKSHAFT

13000-KN4-A60

$422.76

RING SET, PISTON (STD)

13011-KN4-A61

$39.18

RING SET, PISTON (0.25) | (Optional).

13021-KN4-A61

$39.18

RING SET, PISTON (0.50) | (Optional).

13031-KN4-A61

$41.56

PISTON (STD)

13101-KN4-A60

$59.98

PISTON (0.25) | (Optional).

13102-KN4-A60

$63.62

PISTON (0.50) | (Optional).

13103-KN4-A60

$63.62

PIN, PISTON

13111-028-000

$11.08

SPROCKET, TIMING (15T)

14311-436-300

$35.89

THROUGH, OIL

15441-149-000

$10.12

SPRING, OIL THROUGH

15447-149-000

$2.92

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-003.

91002-KY4-901

$24.38

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-008.

91002-KY4-901

$24.38

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

ROLLER (2X11.8)

96220-20118

$1.49
