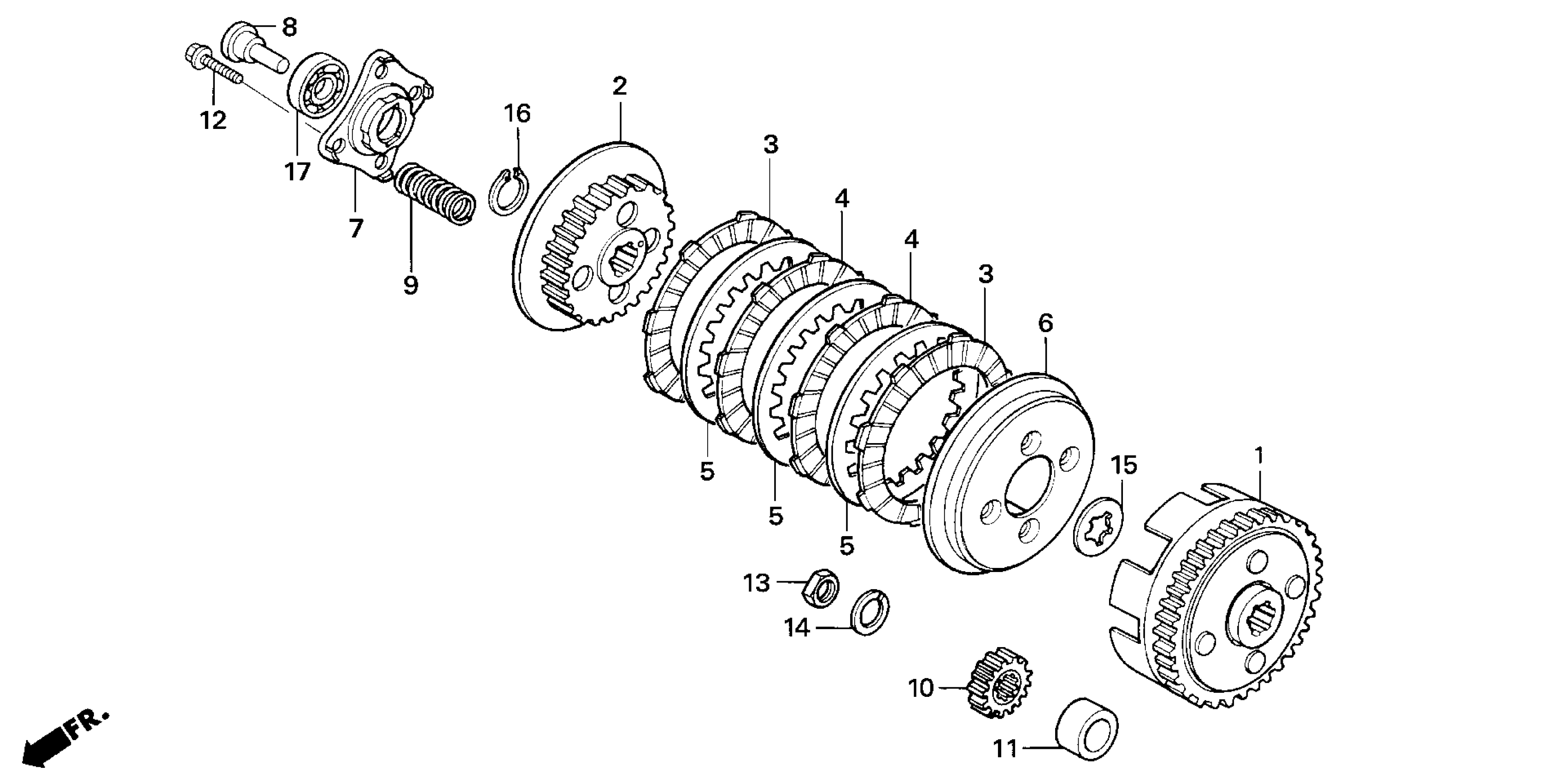

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 CLUTCH Diagram

CLUTCH OUTER (71T)

22100-436-000

Unavailable

CENTER, CLUTCH

22121-KTK-000

$54.03

DISK, CLUTCH FRICTION

22201-GBF-B40

$11.53

DISK, CLUTCH FRICTION (4X8X45)

22201-KPM-850

$12.91

PLATE, CLUTCH

22311-KN4-680

$6.31

PLATE, CLUTCH PRESSURE

22350-115-020

$41.76

PLATE, CLUTCH LIFTER

22361-107-000

$17.55

PIN, CLUTCH LIFTER GUIDE

22366-115-000

$31.49

SPRING, CLUTCH

22401-KN4-680

$2.92

GEAR, PRIMARY DRIVE (16T)

23121-149-000

Unavailable

COLLAR, PRIMARY DRIVE GEAR

23122-436-000

Unavailable

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

NUT, SPECIAL (14MM)

90201-KBP-900

$4.99

WASHER (14.2X23X2.6)

90408-MN5-000

$5.64

WASHER B, SPLINE (17MM)

90462-115-010

$5.33

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
