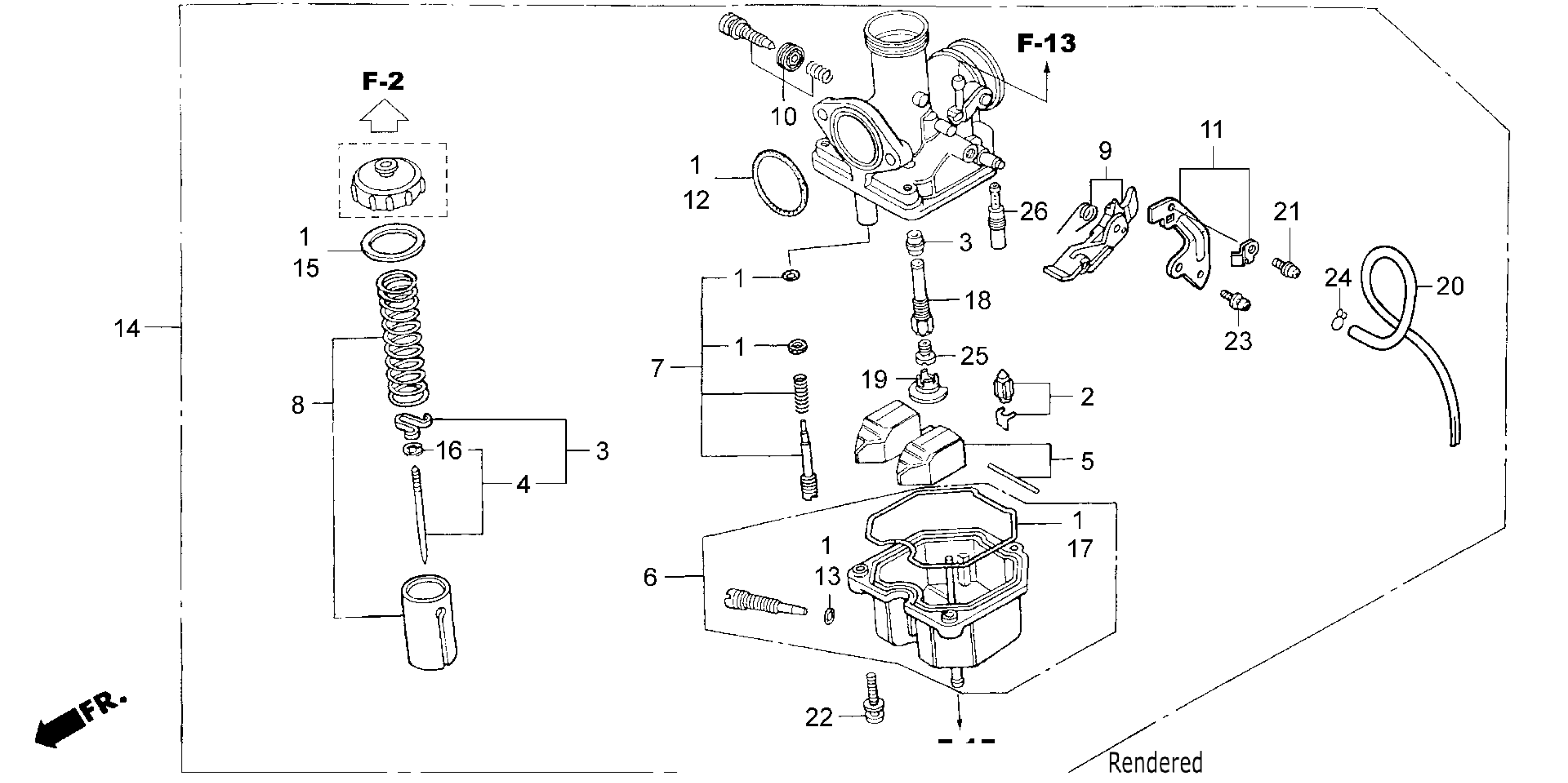

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KN4-A10

$13.23

2

VALVE SET, FLOAT

16011-KN4-A61

$45.56

3

NEEDLE SET, JET

16012-KN4-A61

$31.64

4

NEEDLE SET, JET | (Optional).

16201-NX2-003

Unavailable

4

NEEDLE SET, JET | (Optional).

16202-NX2-003

Unavailable

4

NEEDLE SET, JET | (Optional).

16203-NX2-003

Unavailable

4

NEEDLE SET, JET | (Optional).

16204-NX2-003

Unavailable

5

FLOAT SET

16013-KN4-A10

$34.66

6

CHAMBER SET, FLOAT

16015-KN4-A10

$97.52

7

SCREW SET A

16016-KN4-L10

$17.83

8

VALVE SET, THROTTLE

16022-KN4-A61

$33.92

9

LEVER SET, CHOKE This part replaces 16025-HM8-000.

16025-KC2-881

Unavailable

9

LEVER SET, CHOKE

16025-KC2-881

Unavailable

10

SCREW SET B

16028-KEB-G01

$12.44

10

SCREW SET B This part replaces 16028-KEH-900.

16028-KEB-G01

$12.44

11

PLATE, STAY SET

16035-KC2-960

$17.66

12

O-RING (2.4X29)

16075-GHB-B70

$7.81

13

O-RING (1.3X4.3)

16075-GHB-640

$2.92

14

CARBURETOR ASSY.

16100-NX2-000

Unavailable

15

GASKET, TOP

16110-KN4-650

Unavailable

16

CLIP, BAR

16115-GHB-610

$2.98

17

GASKET, FLOAT CHAMBER

16163-KCS-920

$11.91

18

HOLDER, NEEDLE JET

16165-KN4-A61

$30.17

19

HOLDER, JET

16168-382-014

$9.81

20

TUBE, AIR VENT

16199-NX2-003

Unavailable

21

SCREW-WASHER (4X8)

93892-04008-08

$1.49

21

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

22

SCREW-WASHER (4X16)

93892-04016-08

$1.49

22

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

23

SCREW-WASHER (5X12)

93892-05012-08

$1.49

23

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

24

CLIP, TUBE (B6.5)

95002-02659

$1.49

25

JET, MAIN (#90) | (Optional). This part replaces 99101-GHB-090.

99101-GHB-0900

$9.10

25

JET, MAIN (#90) | (Optional).

99101-GHB-0900

$9.10

25

JET, MAIN (#92) | (Optional). This part replaces 99101-GHB-092.

99101-GHB-0920

$7.98

25

JET, MAIN (#92) | (Optional).

99101-GHB-0920

$7.98

25

JET, MAIN (#95) | (Optional). This part replaces 99101-GHB-095.

99101-GHB-0950

$8.77

25

JET, MAIN (#95) | (Optional).

99101-GHB-0950

$8.77

25

JET, MAIN (#98) This part replaces 99101-GHB-098.

99101-GHB-0980

$6.40

25

JET, MAIN (#98)

99101-GHB-0980

$6.40

25

JET, MAIN (#100) | (Optional). This part replaces 99101-GHB-100.

99101-GHB-1000

$6.75

25

JET, MAIN (#100) | (Optional).

99101-GHB-1000

$6.75

25

JET, MAIN (#102) | (Optional). This part replaces 99101-GHB-102.

99101-GHB-1020

$6.40

25

JET, MAIN (#102) | (Optional).

99101-GHB-1020

$6.40

25

JET, MAIN (#105) | (Optional). This part replaces 99101-GHB-105.

99101-GHB-1050

$6.40

25

JET, MAIN (#105) | (Optional).

99101-GHB-1050

$6.40

26

JET, SLOW (#35)

99104-KN4-0350

$11.04
