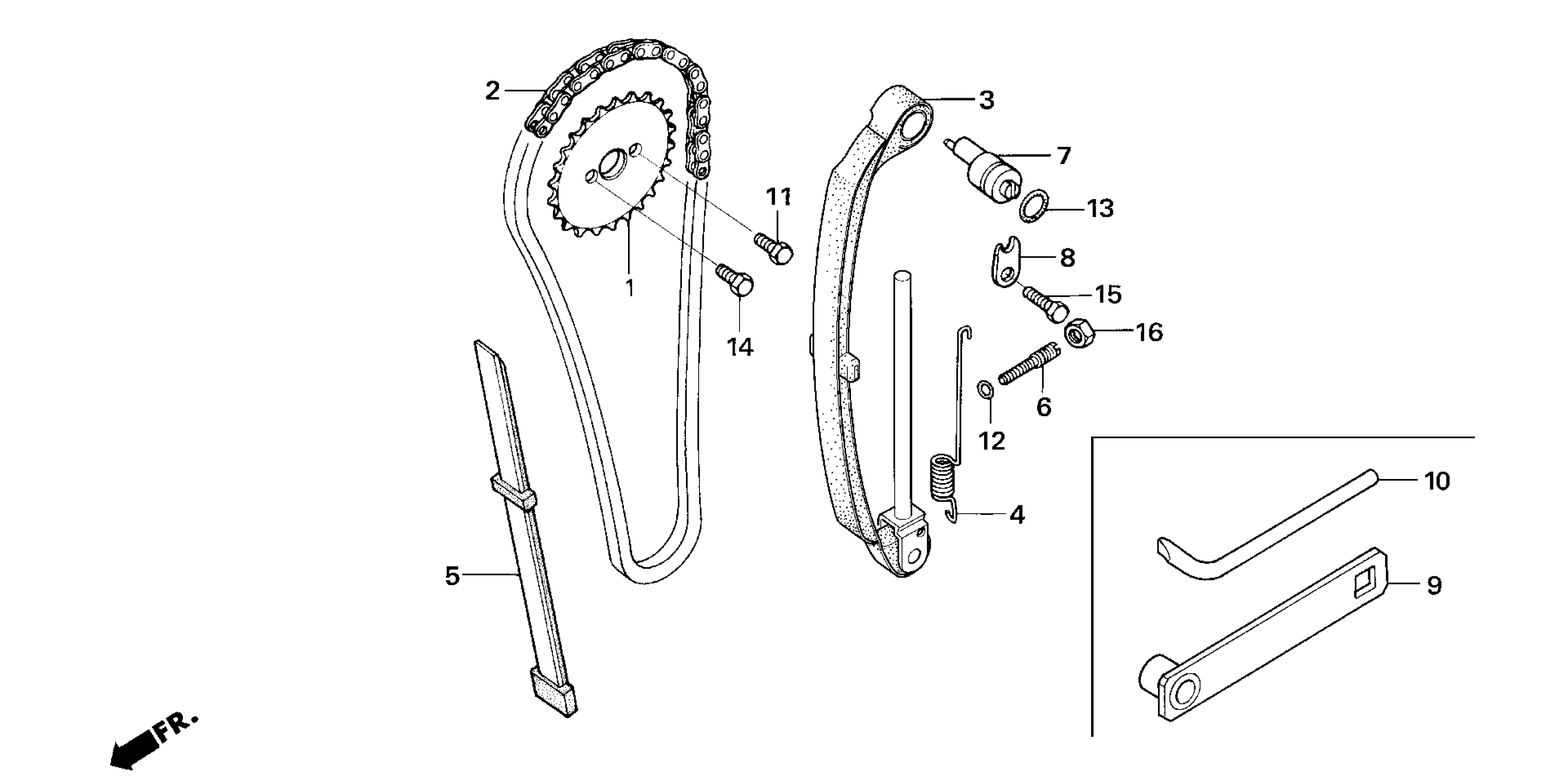

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (30T)

14321-KN4-A60

$17.60

CHAIN, CAM (90L)

14401-436-003

$55.98

TENSIONER, CAM CHAIN

14500-436-000

$96.11

SPRING, CAM CHAIN TENSIONER

14515-152-000

$4.10

GUIDE, CAM CHAIN

14550-116-000

$44.10

BOLT, CAM CHAIN TENSIONER ADJUSTING

14561-086-010

$10.41

BOLT, CAM CHAIN TENSIONER ADJUSTING

14561-115-020

$19.31

PLATE, CAM CHAIN TENSIONER ADJUSTING

14562-115-000

$5.13

WRENCH, SET PLATE BOLT

89006-NX2-003

Unavailable

SCREWDRIVER, ADJUSTER

89008-NX2-000

Unavailable

BOLT, KNOCK (6X10)

90081-149-010

$2.54

O-RING (5.5X1.5)

91301-216-000

$2.38

O-RING (11X2.0)

91303-259-000

$3.26

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49
