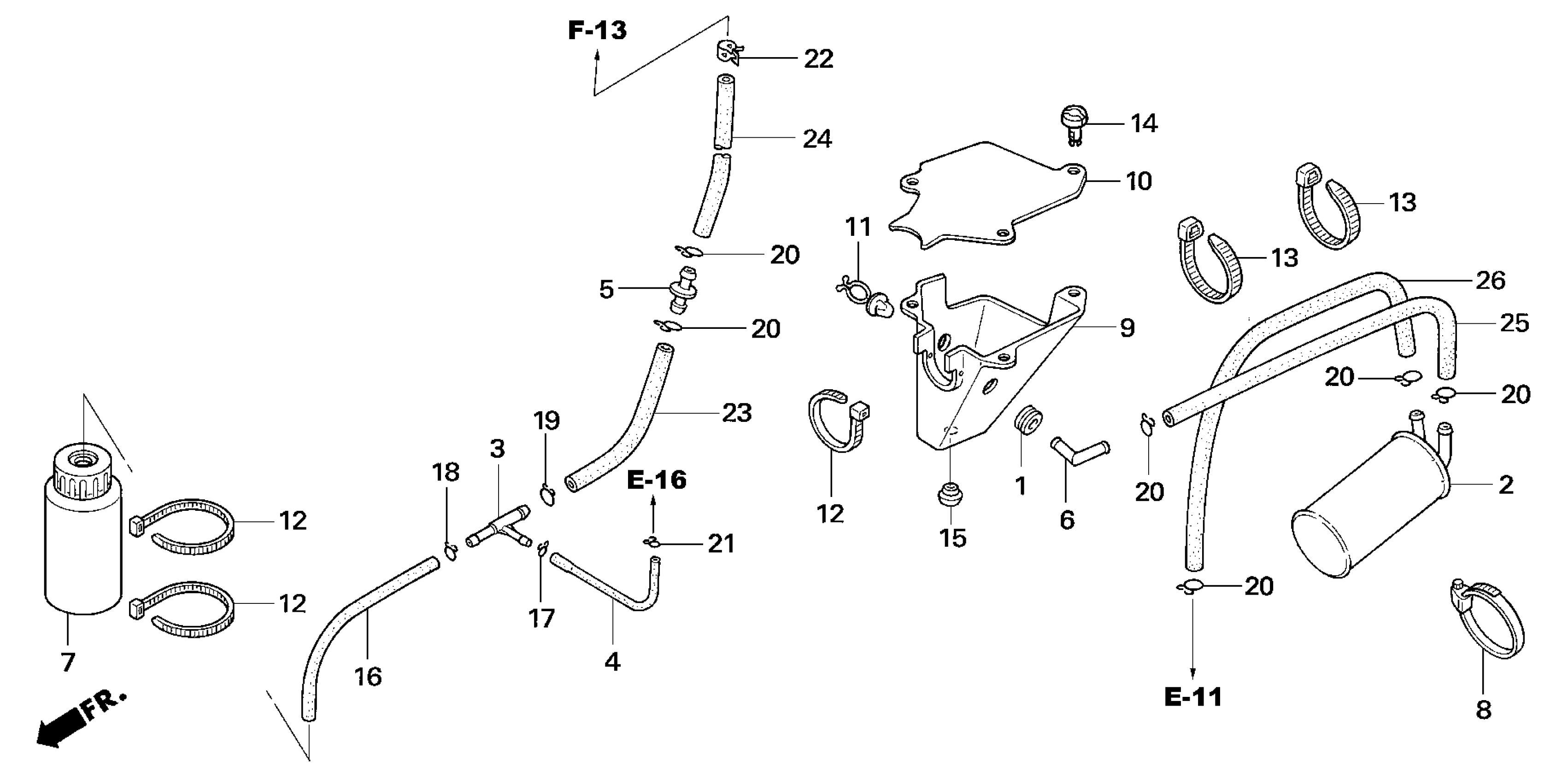

Honda NSF100A (06) MOTORCYCLE, JPN, VIN# HR01-1000019 TO HR01-1000175 AIR BOX + OIL CATCH TANK Diagram

#

Description
Price

1

GROMMET, CARB BOX

17232-NX2-000

Unavailable

2

TANK, OIL CATCH

17511-NX2-000

Unavailable

3

JOINT, THREE WAY (NOT AVAILABLE)

17711-GM6-000

Unavailable

4

TUBE (3.5X4.5X150)

17712-NX2-000

Unavailable

5

JOINT, TUBE

19102-KT8-000

$6.61

6

JOINT, TUBE

19103-MB9-000

$6.34

7

TANK, CATCH (250)

19602-NX2-000

Unavailable

8

BAND, SUB-TANK (NOT AVAILABLE)

50252-MN1-670

Unavailable

9

BOX, AIR

64110-NX2-000

Unavailable

10

COVER, AIR BOX

64115-NX2-000

Unavailable

11

CLAMP, HARNESS

90119-HA7-670

$3.72

12

TIE-WRAP (3.6X281)

90651-NC8-000

$3.39

13

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

14

CLIP, TRIM

90683-GAZ-003

$3.80

15

PLUG, HOLE (8MM)

90851-SD2-000

$5.74

16

BULK HOSE, FUEL (5.5X3000) (95001-550(95001-55001-60M)

95001-55003-60M

$47.32

17

CLIP, TUBE (B7)

95002-02070

$1.80

18

CLIP, TUBE (B10)

95002-02100

$1.90

19

CLIP, TUBE (B12)

95002-02120

$2.00

20

CLIP, TUBE (B12.5)

95002-02130

$1.49

21

CLIP, TUBE (B6.5)

95002-02650

$1.49

22

CLAMP, TUBE (D12.5)

95002-41250-08

$2.34

23

BULK HOSE, VACUUM (8X1000) (8X200)

95005-80001-50M

$16.26

24

BULK HOSE, VACUUM (8X1000) (8X240)

95005-80001-50M

$16.26

25

BULK HOSE, VACUUM (8X8000) (8X320)

95005-80008-10M

Unavailable

26

BULK HOSE, VACUUM (8X8000) (8X450)

95005-80008-10M

Unavailable
