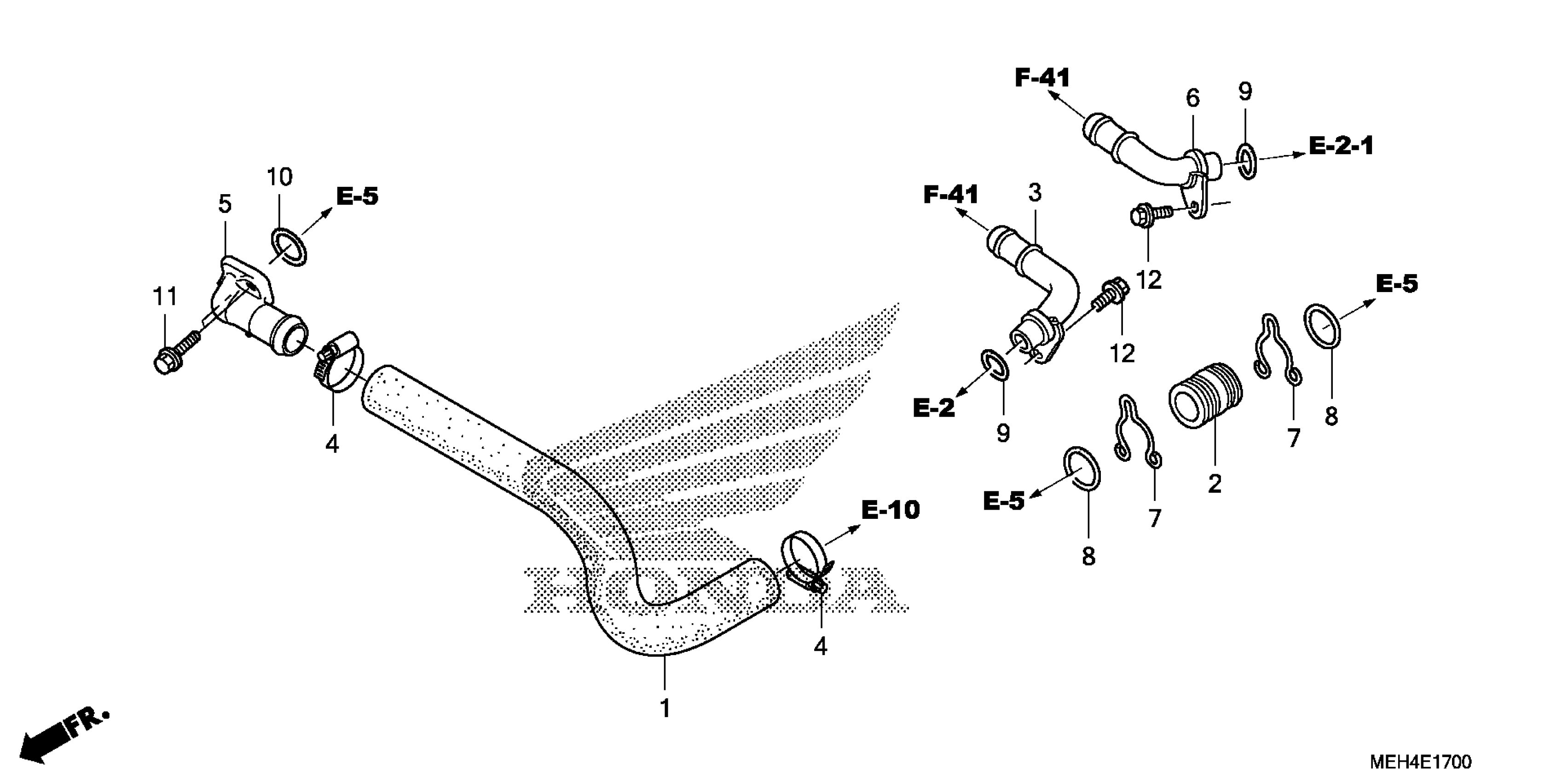

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 WATER PIPE Diagram

#

Description
Price

1

HOSE, MAIN WATER

19503-MEH-000

$16.36

2

JOINT, WATER (FR/RR)

19505-MEG-000

$15.16

3

PIPE A, WATER OUTLET

19510-MFF-D00

$22.38

4

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

5

JOINT, WATER HOSE

19517-MEH-000

$30.21

6

PIPE B, WATER OUTLET

19520-MFF-D00

$22.38

7

CLIP, RING (22MM)

90601-MEG-000

$2.72

8

O-RING (21.5X2)

91310-MB0-003

$2.92

9

O-RING (17X3) (ARAI)

91312-KE8-003

$2.84

10

O-RING

91356-169-003

$2.92

11

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

12

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
