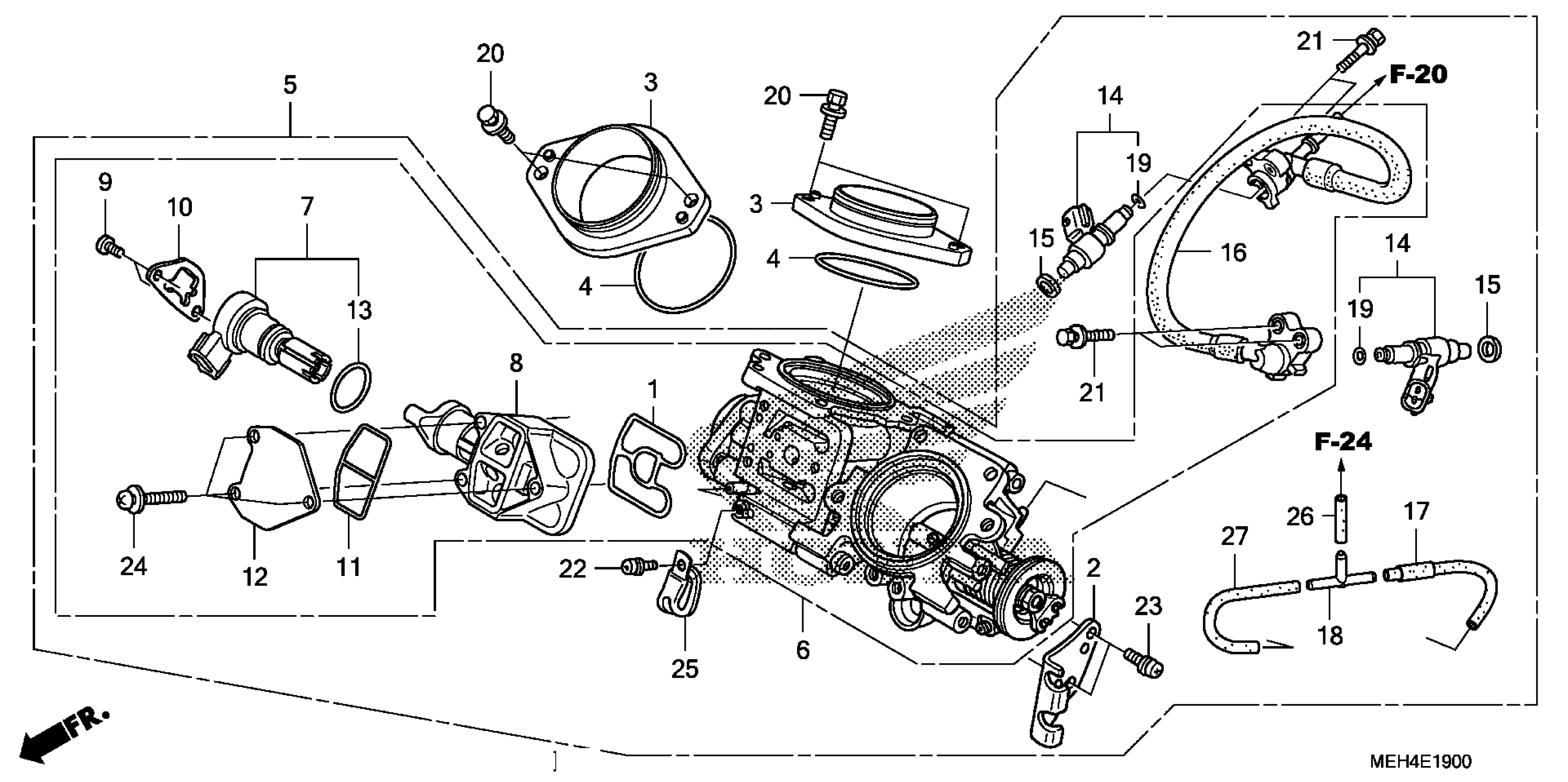

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 THROTTLE BODY (A/CM) Diagram

#

Description
Price

1

O-RING

16075-MEW-921

$2.18

2

STAY, WIRE

16169-MEW-921

$10.16

3

PLATE, FUNNEL SET

16188-MFF-D00

$25.34

4

O-RING (51.6X2.4)

16189-MFF-D00

$3.11

5

BODY ASSY., THROTTLE (GQ6BB A)

16400-MEH-671

$1,161.49

6

BODY ASSY., THROTTLE

16401-MEH-671

$1,092.79

7

MOTOR ASSY. This part replaces 16430-MEH-003.

16430-MEH-013

$86.82

8

BODY, IDLE AIR CONTROL VALVE

16431-MEH-003

$73.21

9

SCREW, TORX

16433-HN8-A61

$1.49

10

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$10.34

11

O-RING

16434-MEH-003

$2.56

12

PLATE, IDLE AIR CONTROL VALVE

16435-MEH-003

$7.51

13

O-RING (17.8X1.9)

16435-MFJ-D01

$3.03

14

INJECTOR ASSY., FUEL

16450-MEW-922

$119.33

15

SEAL RING, INJECTOR

16472-MCW-000

$2.39

16

PIPE, FUEL

16610-MEH-003

$7.07

17

TUBE (3.5X130)

16971-MEH-003

$3.16

18

JOINT A, VACUUM TUBE

17201-MG9-000

$15.94

19

O-RING (7.8X1.9)

91301-P7A-004

$3.35

20

BOLT-WASHER (5X14)

93401-05014-08

$1.53

21

BOLT-WASHER (5X25)

93403-05025-00

$1.49

22

SCREW-WASHER (4X8)

93892-04008-00

$1.49

22

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

$1.49

23

SCREW-WASHER (5X12)

93892-05012-00

$1.49

23

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

24

SCREW-WASHER (5X35)

93892-05035-10

$1.49

25

CLIP (2X50)

94591-25000

$2.31

26

BULK HOSE, VACUUM (3.5X1000) (3.5X30)

95005-35001-20M

$9.67

27

BULK HOSE, VACUUM (3.5X1000) (3.5X130)

95005-35001-20M

$9.67
