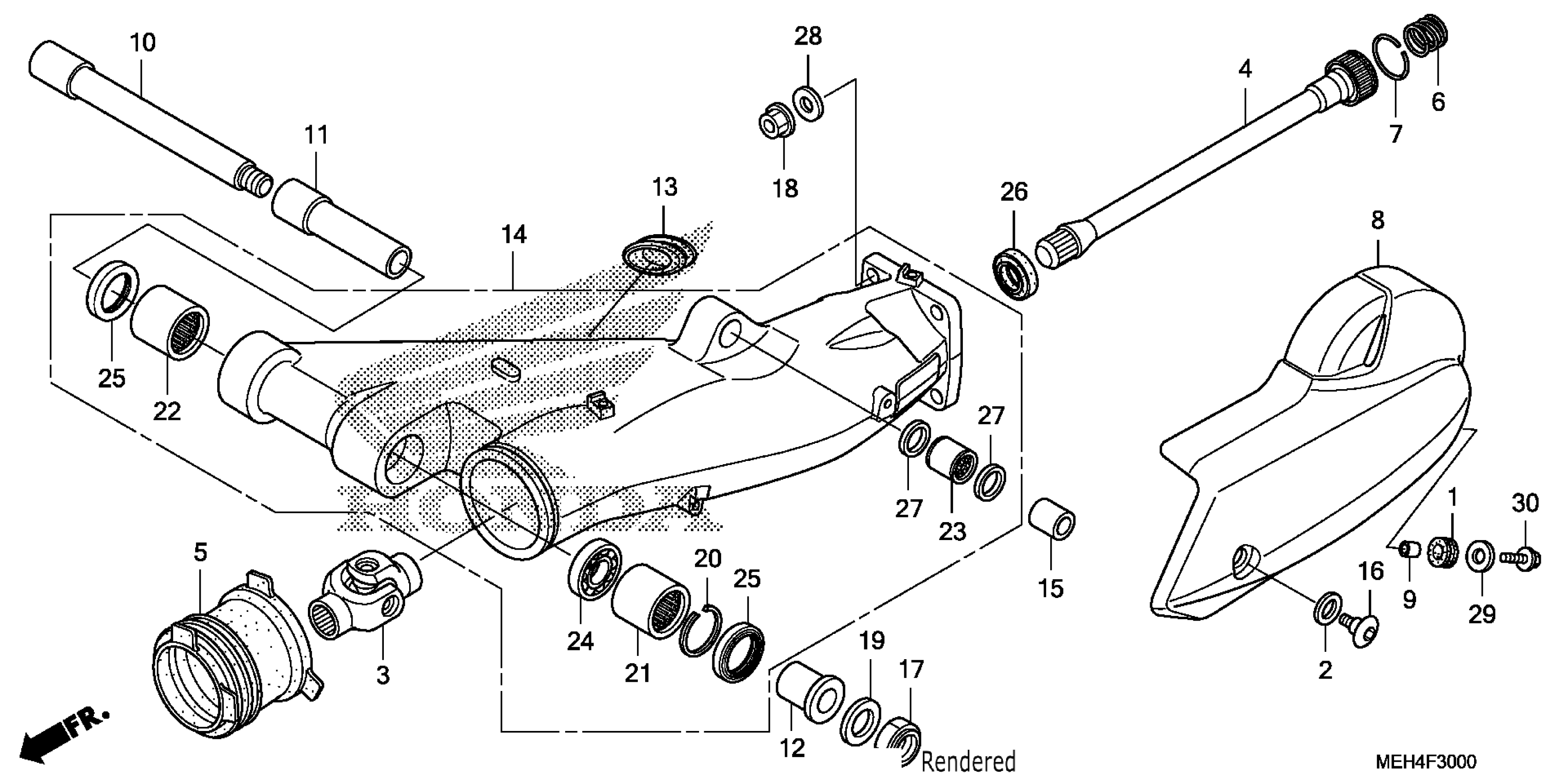

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 SWINGARM Diagram

#

Description
Price

1

RUBBER, CANISTER BRACKET

17416-MEE-770

$2.20

2

GASKET, DRAIN (TOYO)

19012-PA0-004

$4.12

3

JOINT, YOKE

40200-MR6-671

$302.71

4

SHAFT, PROPELLER

40201-MEH-000

$162.17

5

BOOT, JOINT

40207-MEH-000

$25.55

6

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.50

7

RING, STOPPER

40221-MB0-000

$4.20

8

COVER, FINAL GEAR

41351-MEH-010

$93.71

9

COLLAR, FINAL GEAR COVER

41357-MEH-000

$3.30

10

BOLT, SWINGARM PIVOT

52101-MEH-000

$49.13

11

COLLAR, CENTER PIVOT DISTANCE

52141-MEH-000

$68.96

12

COLLAR, L. PIVOT DISTANCE

52143-MEH-000

$28.35

13

GROMMET, SWINGARM

52175-MEH-000

$5.99

14

SWINGARM SUB-ASSY., RR.

52200-MEH-010

$1,724.84

15

COLLAR C, CUSHION ARM

52464-KPE-900

$4.87

16

BOLT, FINAL GEAR COVER

90102-MEH-000

$5.25

17

NUT, U (18MM)

90305-KZ4-891

$14.21

18

NUT, HEX. (10MM)

90308-357-000

$4.53

19

WASHER (18X32X2)

90401-KZ4-890

$4.16

20

CIRCLIP (INNER) (37)

90651-MEW-920

$2.86

21

BEARING, NEEDLE

91071-MBW-E11

$15.45

22

BEARING, NEEDLE

91071-MR7-003

$22.90

23

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$17.67

24

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$16.17

25

DUST SEAL (28X37X4)

91202-MR7-003

$5.91

26

OIL SEAL (27X43X7)

91261-ME9-005

$10.90

27

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77

28

WASHER, PLAIN (10MM)

94101-10000

Unavailable

29

WASHER, PLAIN (6MM)

94103-06000

$0.90

30

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
