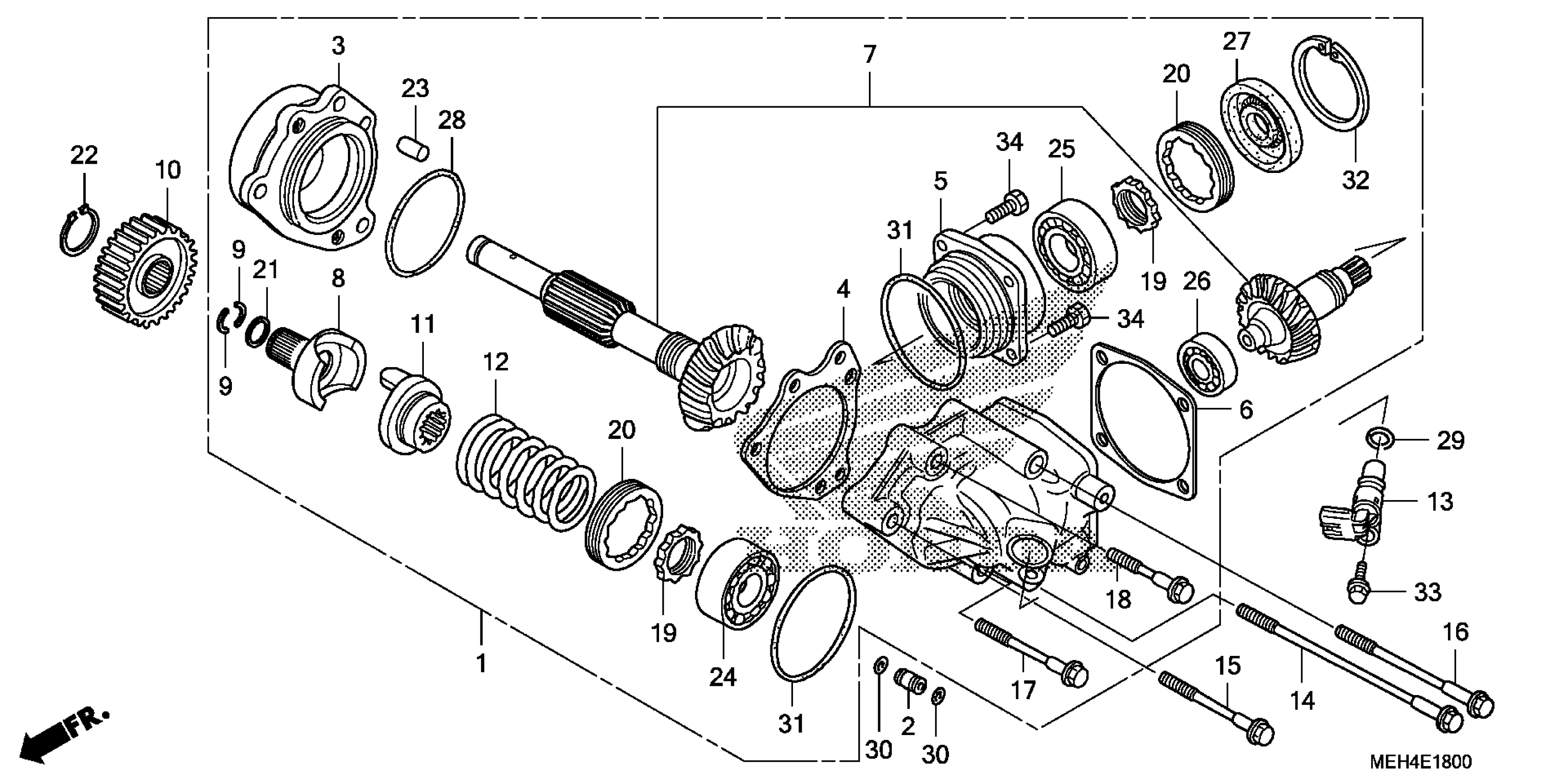

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 SIDE GEAR CASE Diagram

#

Description
Price

1

CASE ASSY., SIDE GEAR

21100-MEH-000

$1,255.48

2

ORIFICE, SIDE GEAR CASE

21215-MEW-920

$4.75

3

HOLDER, FINAL DRIVESHAFT BEARING

21281-MS9-750

$59.67

4

SHIM, FINAL DRIVESHAFT (0.30)

21309-MEG-000

$12.79

4

SHIM, FINAL DRIVESHAFT (0.35)

21310-MEG-000

$12.79

4

SHIM, FINAL DRIVESHAFT (0.40)

21311-MEG-000

$12.79

4

SHIM, FINAL DRIVESHAFT (0.45)

21312-MEG-000

$12.79

4

SHIM, FINAL DRIVESHAFT (0.50)

21313-MEG-000

$12.79

4

SHIM, FINAL DRIVESHAFT (0.55)

21314-MEG-000

$12.79

4

SHIM, FINAL DRIVESHAFT (0.60)

21315-MEG-000

$12.79

4

SHIM, FINAL DRIVESHAFT (0.65)

21316-MEG-000

$12.79

4

SHIM, FINAL DRIVESHAFT (0.70)

21317-MEG-000

$12.79

4

SHIM, FINAL DRIVESHAFT (0.75)

21318-MEG-000

$12.79

5

HOLDER, CROSS SHAFT BEARING

21371-MS9-000

$64.00

6

SHIM, CROSS SHAFT (0.20)

21377-MB0-770

$23.13

6

SHIM, CROSS SHAFT (0.25)

21378-MB0-770

$22.13

6

SHIM, CROSS SHAFT (0.30)

21379-MB0-770

$22.13

6

SHIM, CROSS SHAFT (0.35)

21380-MB0-770

$22.13

6

SHIM, CROSS SHAFT (0.40)

21381-MB0-770

$25.25

6

SHIM, CROSS SHAFT (0.45)

21382-MB0-770

$25.25

6

SHIM, CROSS SHAFT (0.50)

21383-MB0-770

$25.25

6

SHIM, CROSS SHAFT (0.55)

21384-MB0-770

$25.25

6

SHIM, CROSS SHAFT (0.60)

21385-MB0-770

$25.25

7

SHAFT SET, FINAL DRIVE

23200-MEH-000

$270.07

8

COLLAR, DAMPER

23282-MEH-000

$89.25

9

COTTER, FINAL DAMPER

23286-MEH-000

$2.75

10

GEAR B, FINAL DRIVEN (28T)

23531-MEH-000

$97.30

11

LIFTER, DAMPER

23721-ME9-000

$76.34

12

SPRING, DAMPER

23732-MEH-000

$41.89

13

SENSOR ASSY., SPEED (TDK-EPC) This part replaces 37700-HP5-601.

37700-KZR-601

$45.37

14

BOLT, FLANGE (8X165)

90010-MG8-000

$5.25

15

BOLT, UBS (8X65)

90029-MBL-610

$2.79

16

BOLT, UBS (8X110)

90030-MBL-610

$3.80

17

BOLT, UBS (8X60)

90063-MB0-003

$6.00

18

BOLT, UBS (8X45)

90065-HA8-680

$7.10

19

NUT, LOCK (30MM)

90241-MB0-000

$21.10

20

NUT, LOCK (64MM)

90242-MB0-000

$32.52

21

WASHER, THRUST

90401-MEH-000

$1.85

22

CIRCLIP (28MM)

90601-422-000

$2.98

23

PIN, DOWEL (10X24)

90701-MG8-000

$4.70

24

BEARING, SPECIAL BALL (5206) (NTN)

91007-MCH-003

$34.56

25

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$95.20

25

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

26

BEARING, BALL (6303) (KOYO)

91011-MB0-003

$30.64

26

BEARING, BALL (6303) (KOYO) This part replaces 91011-MB0-004.

91011-MB0-003

$30.64

27

OIL SEAL (25X66X8.5) (ARAI)

91205-MG7-003

$18.78

28

O-RING (64X2.5)

91301-MS9-003

$2.48

29

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

29

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.78

30

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000.

91313-MA6-005

$2.61

30

O-RING (4.8X1.9) (NOK)

91313-MA6-005

$2.61

31

O-RING (69.5X3) (ARAI)

91314-MG7-003

$9.24

32

CIRCLIP, INNER (65MM)

94520-65120

$3.05

33

BOLT, FLANGE (6X18)

95701-06018-07

$1.55

34

BOLT, SOCKET (8X22)

96700-08022-17

$2.02
