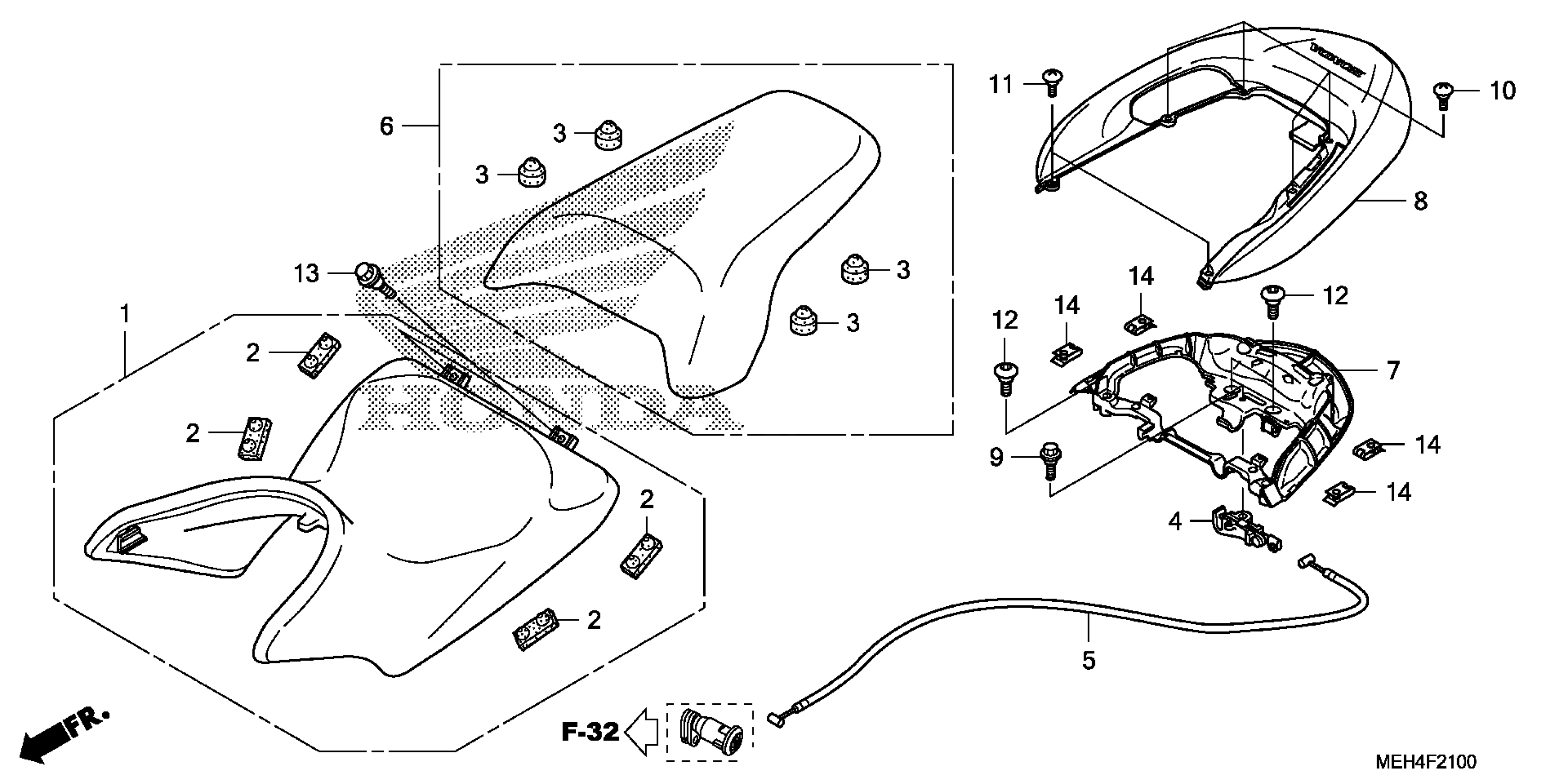

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 SEAT Diagram

#

Description
Price

1

SEAT ASSY., MAIN

77000-MEH-003

$336.80

2

RUBBER, SEAT SETTING

77204-312-000

$5.05

3

RUBBER B, SEAT STOPPER

77215-GC2-000

$5.05

4

HOOK, SEAT CATCH

77220-KY6-010

$29.16

5

CABLE, SEAT LOCK

77241-MEH-000

$8.43

6

SEAT ASSY., PILLION

77300-MEH-003

Unavailable

7

GRAB RAIL, RR. *NHB01* (GRAPHITE BLACK) | Graphite black NHB01;

77350-MEH-010ZB

$271.34

7

GRAB RAIL, RR. *R101CU* (CANDY GLORY RED-U) | Candy glory red-u R101CU;

77350-MEH-010ZD

$282.00

8

COVER SET, GRAB RAIL *NHB01* (WL) (GRAPHITE BLACK) | Graphite black NHB01;

77380-MEH-000ZB

Unavailable

8

COVER SET, GRAB RAIL *R101CU* (WL) (CANDY GLORY RED-U) | Candy glory red-u R101CU;

77380-MEH-000ZD

Unavailable

9

BOLT, HEAD COVER

90017-MY9-790

$6.69

10

SCREW (5X13.5)

90106-961-000

$2.97

11

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.18

12

BOLT, SPECIAL (8X10)

90115-MM5-000

$12.26

13

BOLT, SPECIAL (6MM)

90653-GFC-900

$2.25

14

NUT, CLIP (5MM)

90677-KAN-961

$4.07
