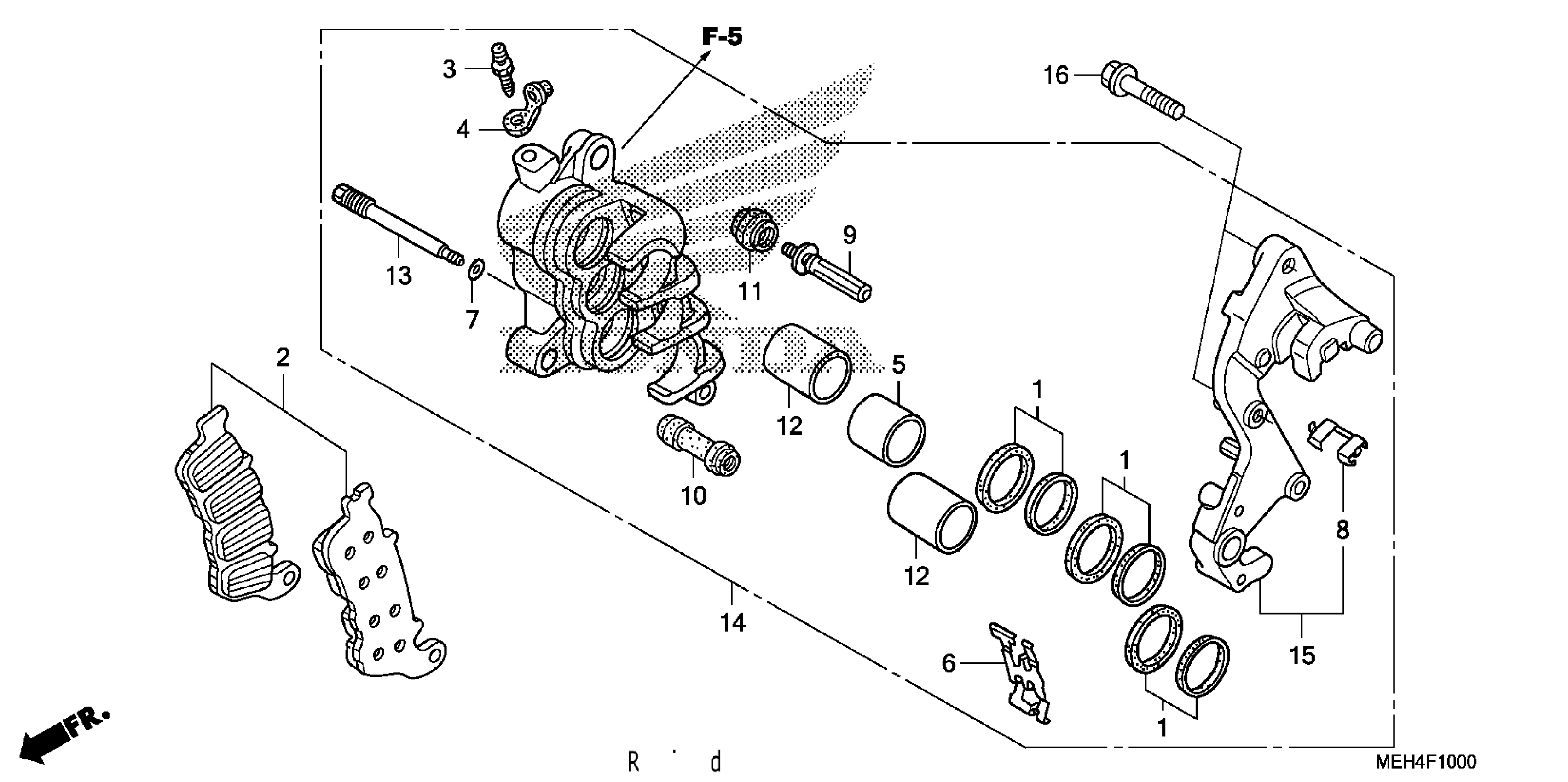

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 RIGHT FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-MZ2-405

$11.51

PAD SET,FR This part replaces 06455-MEH-006.

06455-MEH-016

$69.50

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

CAP, BLEEDER

43353-461-771

$4.83

PISTON A (22X27)

45107-MAJ-G41

$36.21

SPRING, PAD

45108-MBT-D52

$7.65

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MZ2-006

$8.14

BOLT A, PIN

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PISTON B (22X35)

45207-MAJ-G41

$27.55

PIN, HANGER

45215-MBT-D51

$6.38

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MEH-711

$474.60

BRACKET SUB-ASSY., R. FR.

45290-MER-R81

$110.34

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.54
