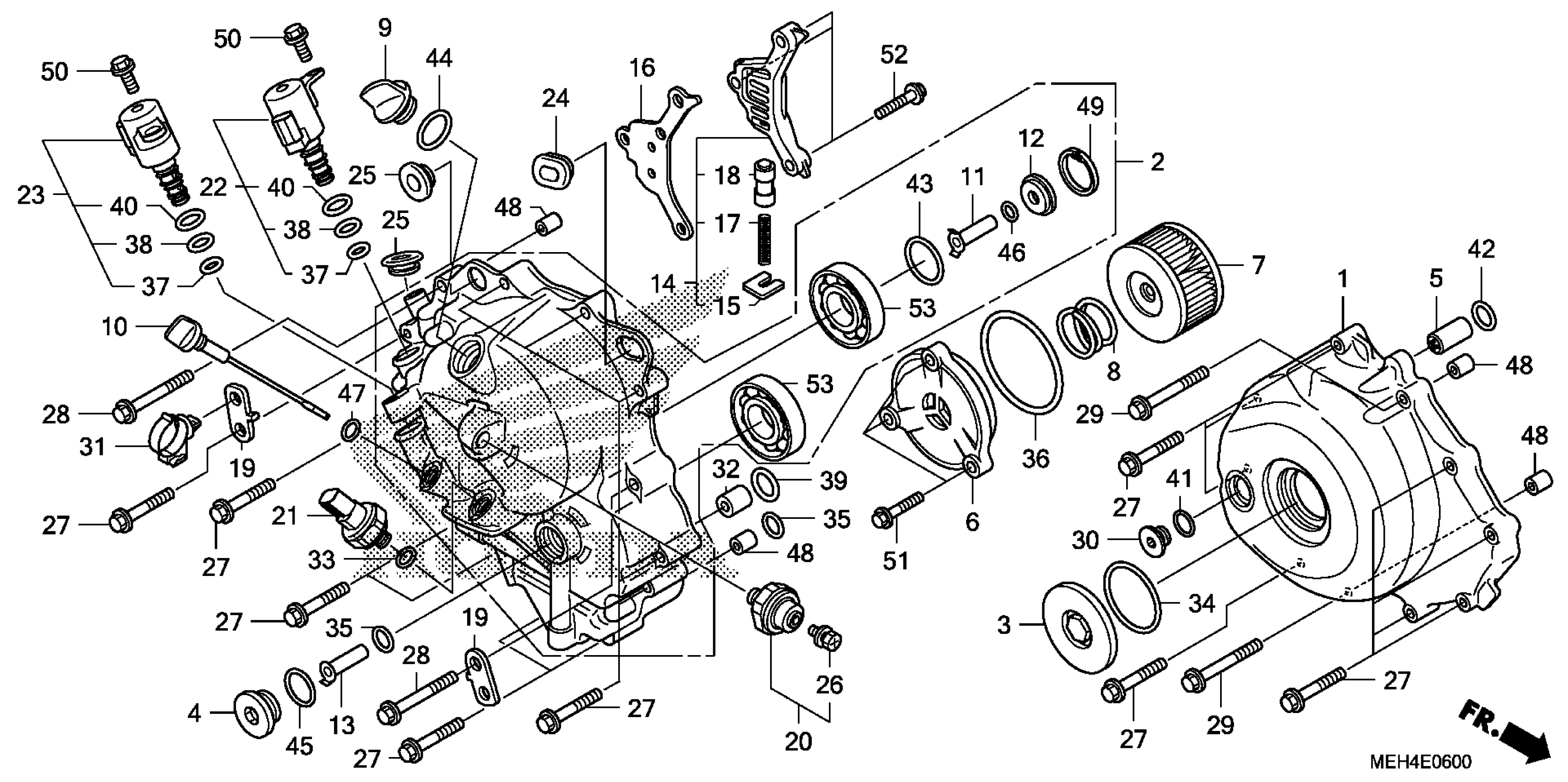

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, ALTERNATOR

11321-MEH-000

$141.77

2

COVER ASSY., R. CRANKCASE

11330-MEH-000

Unavailable

3

CAP (45MM)

11332-MER-D00

$17.38

4

BOLT, FEED PIPE SETTING

11335-HN2-000

$8.98

5

ORIFICE, ALTERNATOR COVER

11642-MEH-000

$8.69

6

COVER, OIL FILTER

15411-MEH-000

$31.54

7

ELEMENT, OIL FILTER

15412-MEH-003

$10.63

8

SPRING, FILTER ELEMENT SETTING

15415-413-000

$3.47

9

CAP, OIL FILLER

15611-KA4-710

$14.40

10

DIPSTICK, OIL

15650-MEH-000

$14.46

11

PIPE, FEED

22710-MEH-000

$7.39

12

GUIDE, FEED PIPE

22719-MEH-000

$7.39

13

PIPE, FEED

26631-HN2-000

$12.41

14

BODY ASSY., SPOOL

27110-MEH-000

$62.97

15

SEAT, VALVE SPRING (NEUTRAL/DRIVE)

27112-MEH-000

$4.52

16

PLATE, VALVE BODY

27121-MEH-000

$2.15

17

SPRING, SHIFT VALVE (NEUTRAL/DRIVE)

27133-MEH-000

$2.38

18

VALVE, ORIFICE CONTROL

27221-MEH-000

$5.64

19

STAY, HARNESS CLIP

32157-MFJ-D00

$3.31

20

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$44.49

21

SENSOR, OIL PRESSURE

37260-RNA-A01

$337.86

22

SOLENOID ASSY., DRIVE

38400-MEH-003

Unavailable

23

SOLENOID ASSY., LOCK-UP

38500-MEH-003

Unavailable

24

GROMMET, SIDE COVER

83551-MA6-000

$3.35

25

GROMMET, SIDE COVER

83601-MN5-000

$2.92

26

BOLT-WASHER (4X8) (DENSO)

90002-PA6-003

$5.85

27

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

28

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.92

29

BOLT, FLANGE (6X45) (NSHF)

90006-GHB-720

$1.87

30

CAP (14MM)

90084-MN8-010

$12.82

31

CLAMP, HARNESS

90652-HC4-003

$5.95

32

COLLAR (15X20)

90702-371-000

$5.87

33

O-RING (13X1.5)

91301-MEH-003

$1.62

34

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

35

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

36

O-RING (74.5X2.5) (NOK)

91301-PH8-005

$10.25

37

O-RING (7.6X1.9) (KEIHIN)

91301-P6H-003

$2.92

38

O-RING (9.6X1.9) This part replaces 91302-P6H-003.

91302-P7W-A00

$2.69

38

O-RING (9.6X1.9)

91302-P7W-A00

$2.69

38

O-RING (9.6X1.9) This part replaces 91308-P6K-003.

91302-P7W-A00

$2.69

39

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

39

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.78

40

O-RING (11.7X1.9) (KEIHIN)

91303-P6H-003

$2.92

41

O-RING (13.8X2.5)

91303-377-000

$3.42

42

O-RING (9X1.8)

91305-GE1-920

$1.80

43

O-RING (16X1.9)

91306-329-000

$2.92

44

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

45

O-RING (21.5X2) (ARAI)

91310-KE8-003

$2.44

46

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.69

47

O-RING (8.4X2.4)

91316-MJ8-003

$2.61

48

PIN, DOWEL (8X14)

94301-08140

$2.25

49

CIRCLIP (INNER) (20MM) (NOT AVAILABLE)

94520-20000

$1.49

50

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

51

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

52

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

53

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58
