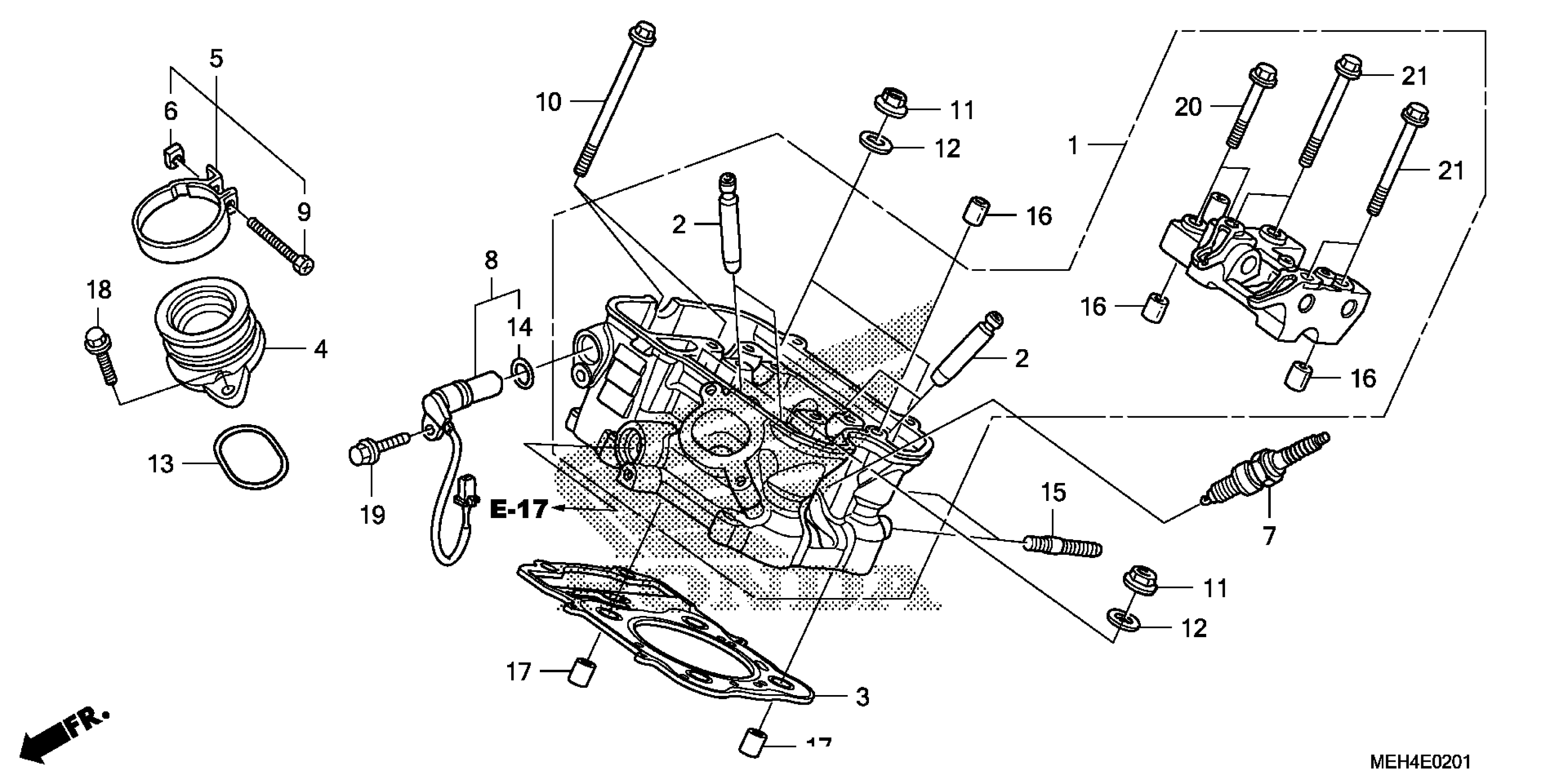

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 REAR CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., RR.

12020-MEH-000

$828.05

2

GUIDE, VALVE (OVER SIZE)

12204-MEW-P00

$17.28

3

GASKET, CYLINDER HEAD

12251-MEH-003

$38.07

4

INSULATOR, THROTTLE BODY

16210-MEW-920

$33.77

5

BAND B, INSULATOR

16218-MAT-000

$7.86

6

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

7

SPARK PLUG (SIMR8A9) (NGK)

31916-MEH-003

$18.81

8

PULSER ASSY., CAM

36140-MEH-003

Unavailable

9

BOLT, RECESSED (5X32)

90005-MM4-000

$1.49

10

BOLT, FLANGE (8X135)

90006-MM5-640

$6.74

11

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

11

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

11

NUT, FLANGE (10MM)

94050-10000

$1.59

12

WASHER (10MM)

90410-HC4-000

$3.81

13

O-RING (45X2.5)

91303-397-000

$5.01

14

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.93

15

BOLT, STUD (8X22)

92900-08022-0E

$1.49

16

PIN, DOWEL (10X16)

94301-10160

$2.28

17

PIN, DOWEL (14X20)

94301-14200

$2.28

18

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

19

BOLT, FLANGE (6X18)

95701-06018-07

$1.55

20

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

21

BOLT, FLANGE (8X70)

95701-08070-00

$2.67
