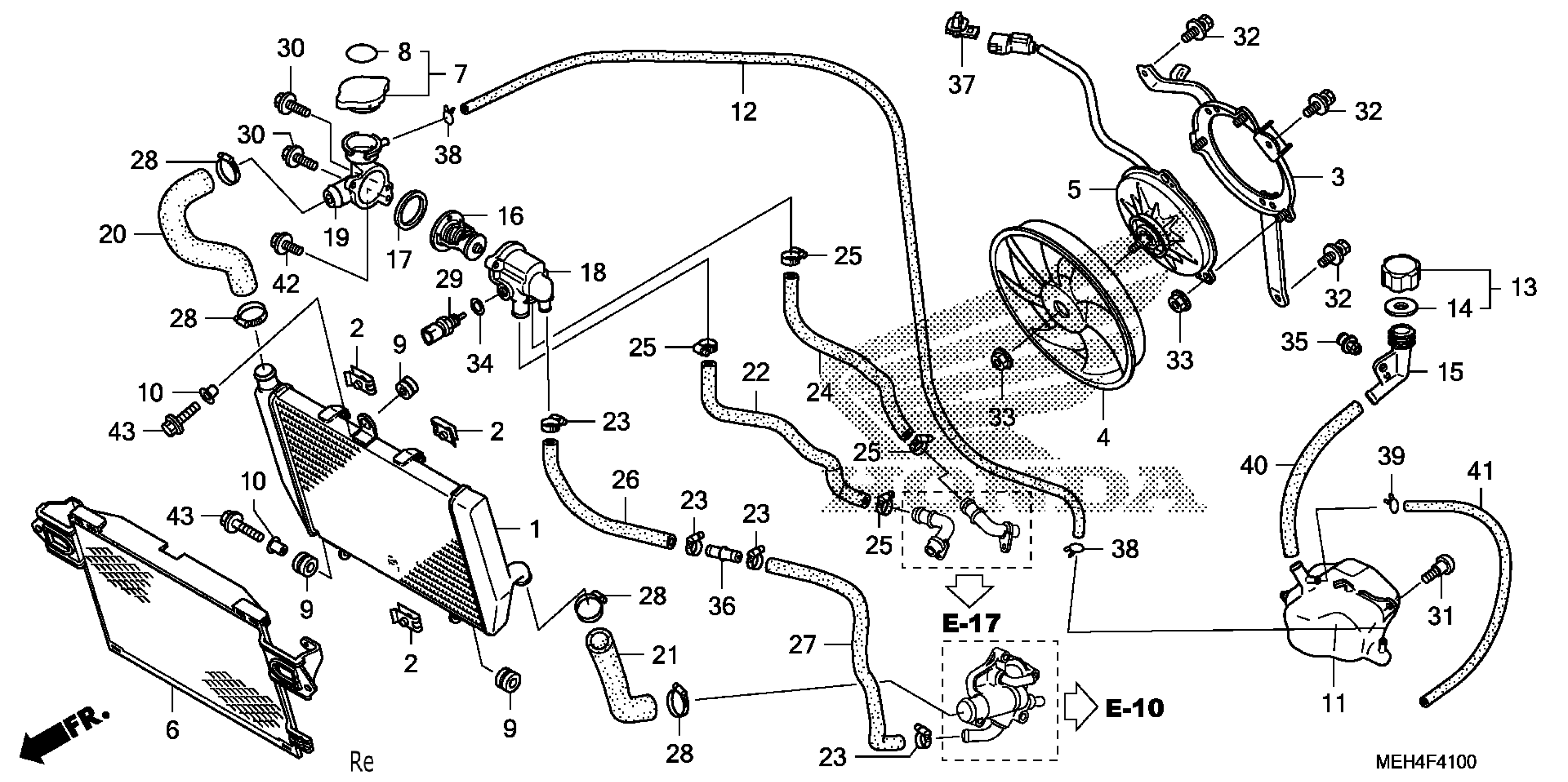

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 RADIATOR Diagram

#

Description
Price

1

RADIATOR

19010-MEH-003

Unavailable

2

NUT, SETTING (6MM)

19014-KEA-003

$3.10

3

SHROUD

19015-MEH-003

Unavailable

4

FAN, COOLING

19020-MEH-003

$45.43

5

MOTOR ASSY., FAN

19030-MEH-003

$283.07

6

GRILLE, RADIATOR

19031-MEH-000

Unavailable

7

CAP, RADIATOR

19037-GEE-710

$30.28

8

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

10

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

10

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

11

TANK, RADIATOR RESERVE

19101-MEH-000

Unavailable

12

TUBE, RESERVE TANK

19103-MEH-000

$11.25

13

CAP ASSY., RESERVE TANK

19105-MG8-000

$12.95

14

GASKET, RESERVE TANK

19107-MG8-000

$5.05

15

NECK, RESERVE TANK FILLER

19111-MR1-000

Unavailable

16

THERMOSTAT ASSY.

19300-MCH-A00

$47.76

17

RUBBER, THERMOSTAT

19305-KV3-010

$6.07

18

CASE, THERMOSTAT

19311-MEH-305

$33.90

19

COVER, THERMOSTAT

19315-MEH-000

$36.77

20

HOSE, RADIATOR IN.

19501-MEH-000

$17.21

21

HOSE, RADIATOR OUT.

19502-MEH-000

$19.10

22

HOSE, FR. THERMO IN.

19504-MEH-000

$24.43

23

CLAMP A, WATER HOSE

19505-KS6-700

$11.06

24

HOSE, RR. THERMO IN.

19505-MEH-000

$18.02

25

CLAMP, WATER HOSE

19506-KA4-000

$9.18

26

HOSE, THERMO (UPPER)

19509-MEH-000

$11.93

27

HOSE, THERMO (LOWER)

19510-MEH-000

$19.33

28

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

29

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$30.74

30

BOLT (6X22) (CT200) This part replaces 90012-ZW9-000.

90012-ZW9-030

$2.07

31

BOLT, FR. DISK COVER

90114-MAC-780

$3.10

32

BOLT-WASHER (6X14)

90120-GHB-611

$2.67

33

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

34

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

35

CLIP

90683-MBR-000

$1.57

36

JOINT, HOSE

91463-MEJ-000

$8.08

37

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

38

CLIP, TUBE (B12)

95002-02120

$2.00

39

CLIP, TUBE (C11)

95002-70000

$1.56

40

BULK HOSE, VACUUM (14X1000) (14X225)

95005-14001-30M

$22.48

41

BULK HOSE, VACUUM (7X3000) (7X320)

95005-70003-30M

$23.45

42

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

43

BOLT, FLANGE (6X25)

96300-06025-07

$1.90
