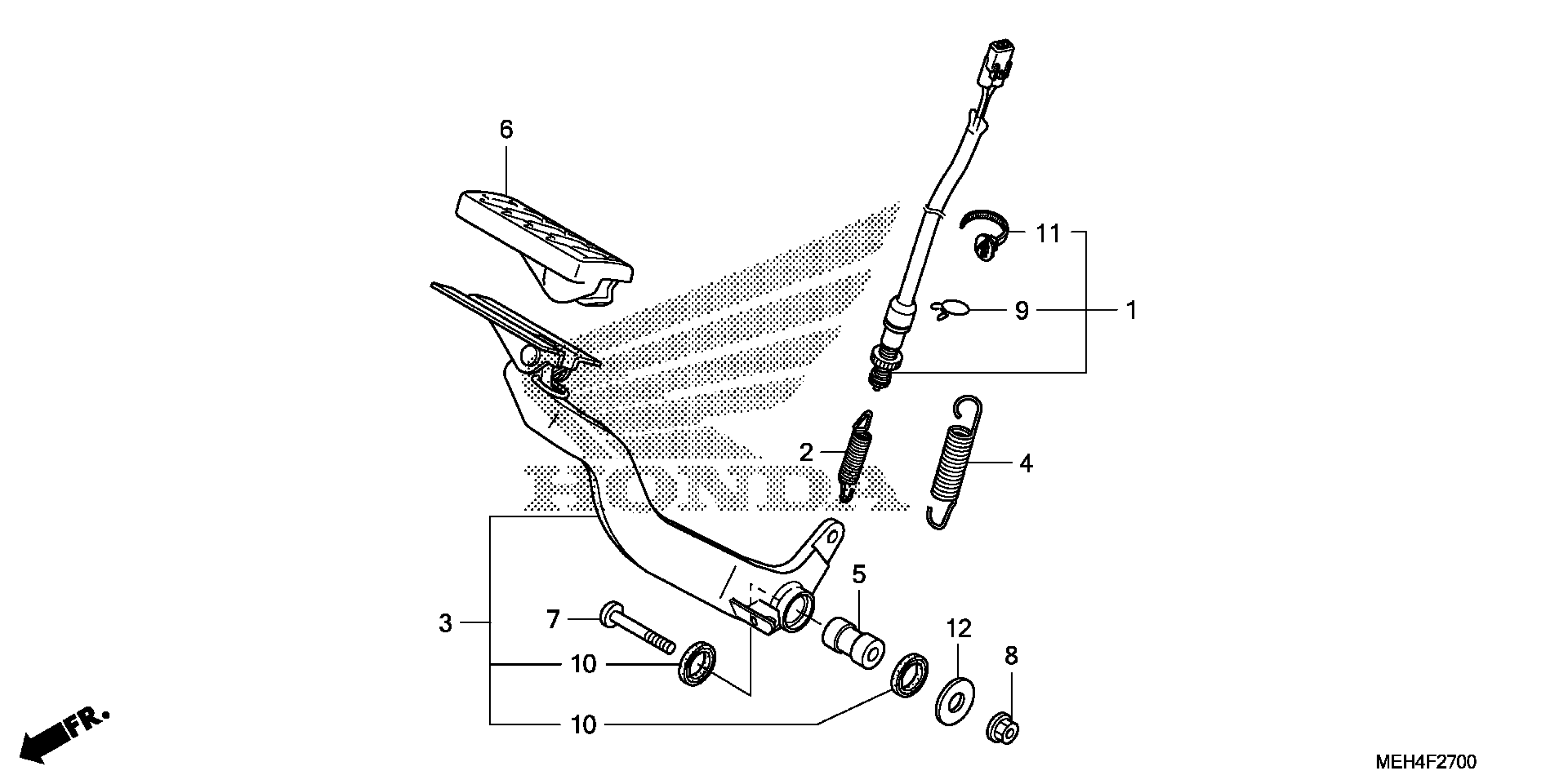

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 PEDAL Diagram

#

Description

Price

1

SWITCH ASSY., RR. STOP

35350-MEH-003

Unavailable

2

SPRING, STOP SWITCH

35357-ME9-000

$4.42

2

SPRING, STOP SWITCH This part replaces 35357-MN5-000.

35357-ME9-000

$4.42

3

PEDAL ASSY., BRAKE

46500-MEH-000

$140.87

4

SPRING, BRAKE PEDAL

46511-KT0-670

$6.19

5

COLLAR, RR. BRAKE PIVOT

46515-MEH-000

$7.09

6

COVER, PEDAL

46545-MEH-000

$12.54

7

BOLT, SOCKET (8X50)

90129-MEH-000

$7.59

8

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

8

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

9

CLIP, SWITCH COVER

90601-KAF-003

$2.43

10

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.44

11

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.08

12

WASHER, PLAIN (8MM)

94103-08200

$0.61
