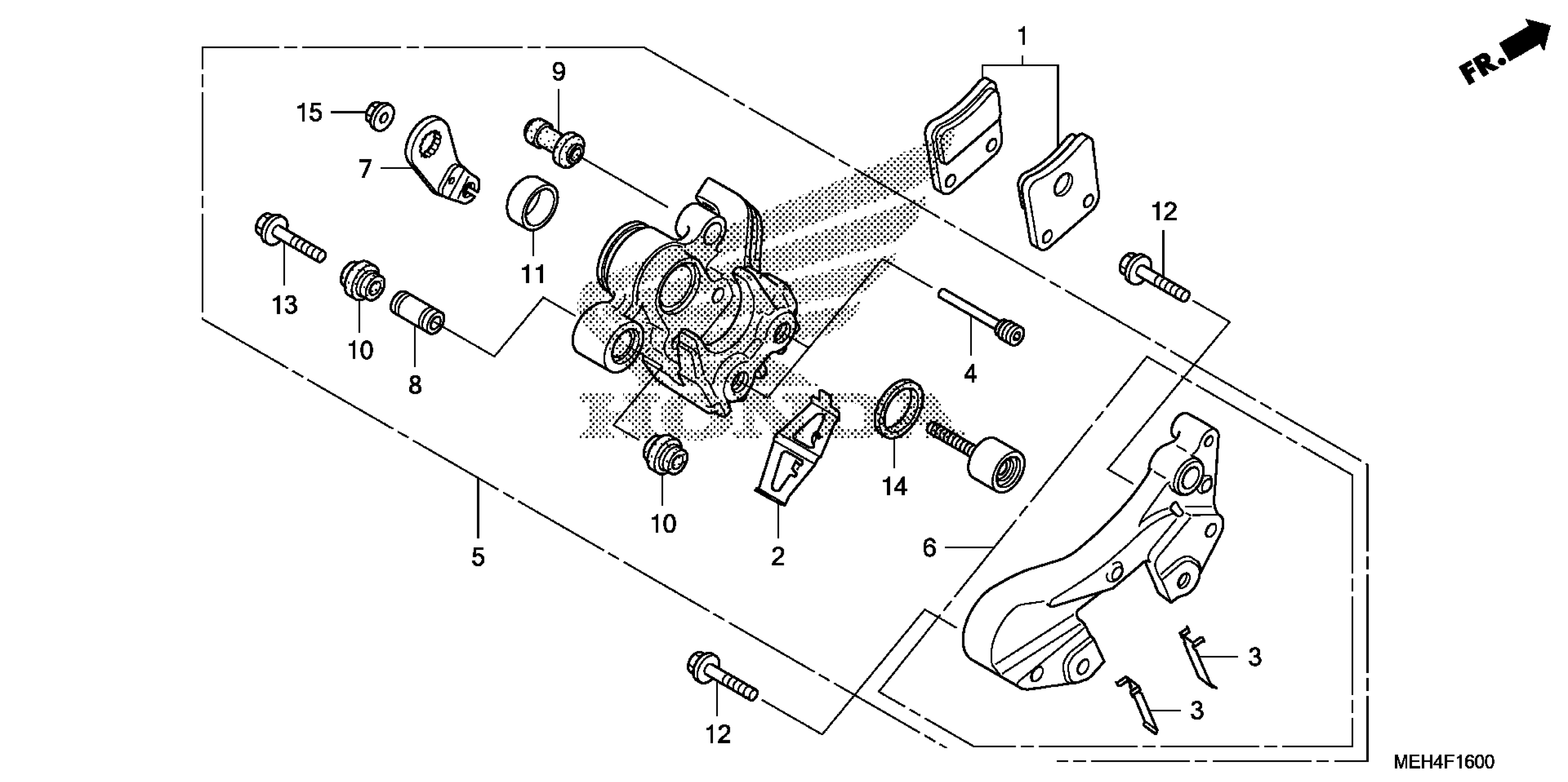

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 PARKING BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, PARKING BRAKE

06436-MEH-006

$33.80

2

SPRING, PAD

43208-MCT-006

$4.33

3

RETAINER

43212-MEH-006

$3.16

4

PIN, HANGER

43215-MCT-006

$5.83

5

CALIPER SUB-ASSY., RR. (NISSIN)

43250-MEH-006

$241.83

6

BRACKET SUB-ASSY., PARKING BRAKE

43290-MEH-006

$60.86

7

ARM

43362-MEH-006

$5.97

8

SLEEVE

45111-MCT-006

$7.52

9

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

10

BOOT, PIN

45133-166-016

$3.43

11

DUST SEAL, MASTER CYLINDER

46184-611-000

$9.52

12

BOLT, FLANGE (8X32)

90104-MEH-000

$3.07

13

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.01

14

DUST SEAL (20X25X4) (NOK)

91208-PF5-005

$5.29

15

NUT-WASHER (8MM)

94071-08080

$1.33
