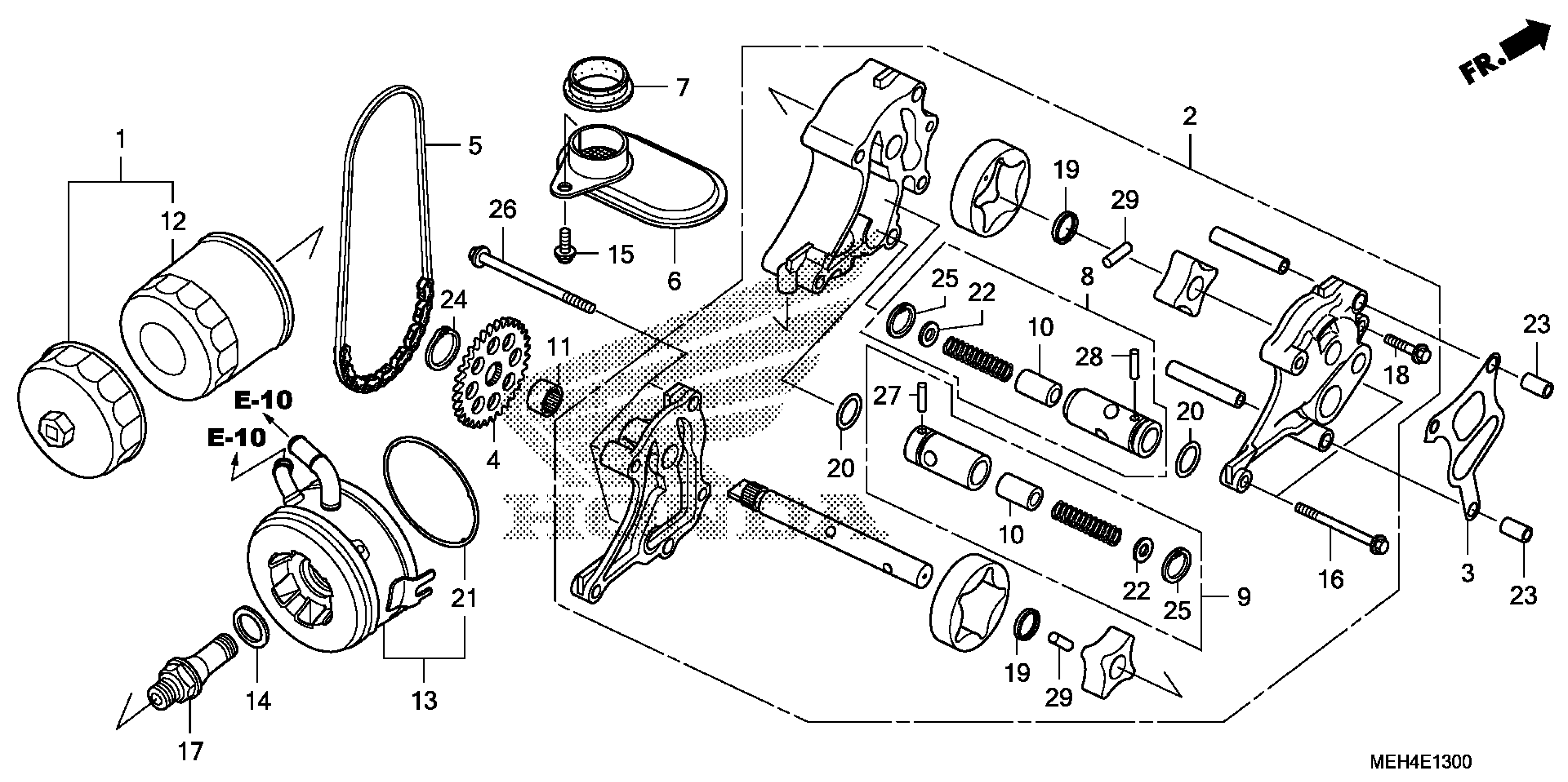

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 OIL FILTER + OIL PUMP Diagram

#

Description
Price

1

FILTER SET, OIL This part replaces 15010-MCE-H51.

15010-MKR-305

$17.70

2

PUMP ASSY., OIL

15100-MEH-000

$310.83

3

GASKET, OIL PUMP

15133-MEH-003

$7.54

4

SPROCKET, OIL PUMP DRIVEN (28T)

15134-MEH-000

$34.00

5

CHAIN, OIL PUMP DRIVE (64L)

15136-MEH-003

$15.48

6

STRAINER, OIL

15150-MEH-000

$22.86

7

GASKET, OIL STRAINER

15154-MEH-000

$7.03

8

VALVE ASSY., RELIEF

15220-HN7-010

$25.32

9

VALVE ASSY., RELIEF

15220-ME9-770

$39.54

10

VALVE, RELIEF

15231-413-020

$20.38

11

COLLAR, OIL PUMP SPROCKET

15237-MEH-000

$3.87

12

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$13.80

13

COOLER, OIL

15700-MEH-003

$206.83

14

WASHER, SPRING (24MM)

23929-PX4-700

$11.86

15

BOLT, FLANGE (6X14) (CT200)

90014-952-000

$2.13

16

BOLT, FLANGE (6X65)

90015-ZG0-801

$2.75

17

BOLT, OIL COOLER

90019-MCJ-000

$28.86

18

BOLT, FLANGE (6X25) (CT200)

90121-952-000

$2.04

19

WASHER, THRUST (13MM)

90456-MC7-000

$2.48

20

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.42

20

O-RING (14.8X2.2)

91313-MG7-004

$3.42

21

O-RING, OIL COOLER

91354-MEJ-641

$3.65

22

WASHER, PLAIN (5MM)

94101-05800

$0.90

23

PIN, DOWEL (8X14)

94301-08140

$2.04

24

CIRCLIP, OUTER (12MM)

94510-12000

$1.65

25

CIRCLIP (INNER) (12MM)

94520-12000

$0.49

26

BOLT, FLANGE (6X95)

95701-06095-00

$1.84

27

ROLLER (3X16.8)

96220-30168

$0.29

28

ROLLER (3X17.8)

96220-30178

$1.20

29

ROLLER (5X17.8)

96220-50178

$0.72
