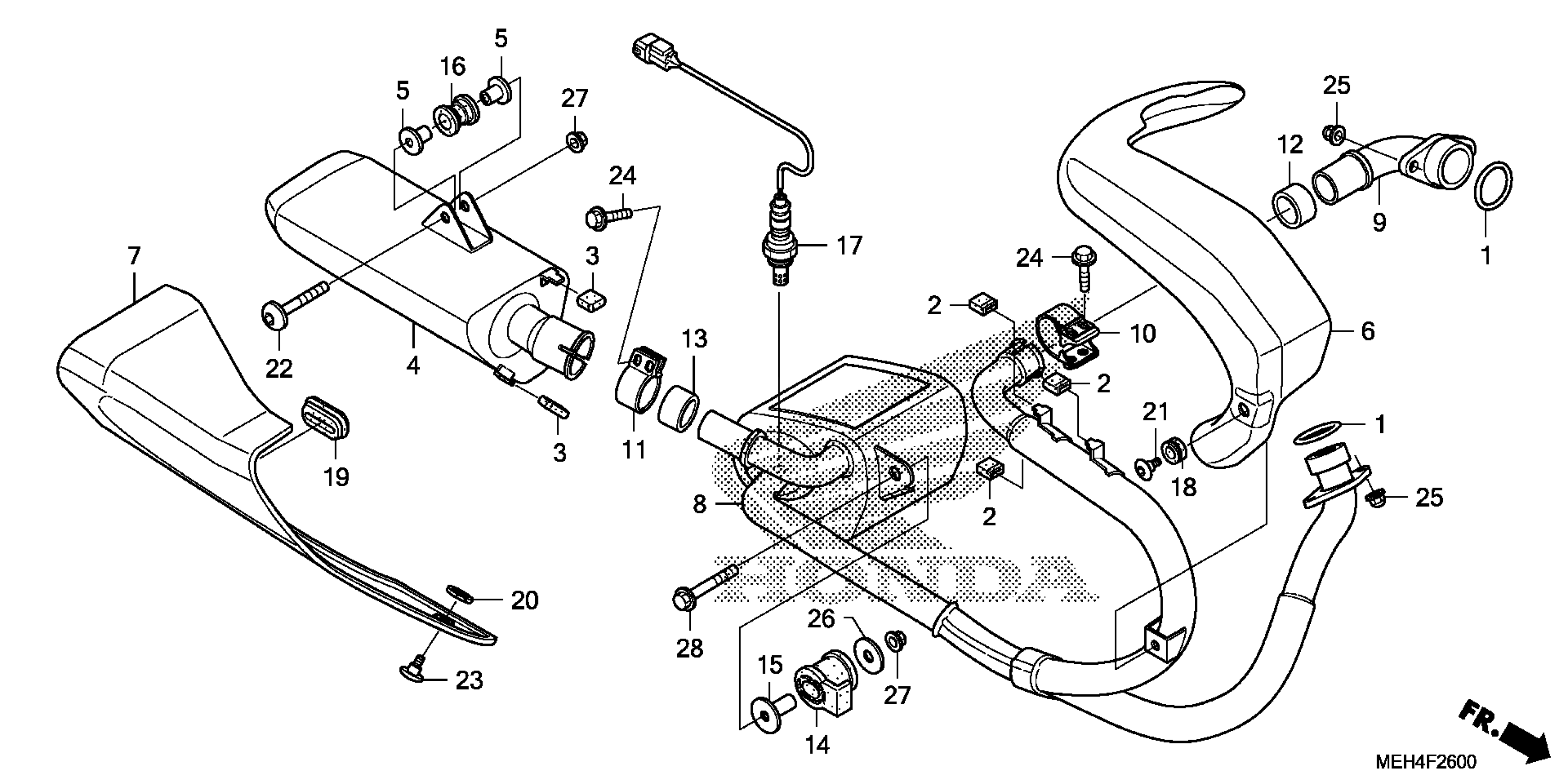

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MN4-920

$4.94

2

RUBBER, PROTECTOR

18293-MN0-000

$1.94

3

RUBBER, PROTECTOR GASKET

18293-MBC-000

$3.52

4

MUFFLER

18310-MEH-670

$766.45

5

COLLAR, RR. CHAMBER (8.5X15)

18327-KAE-000

$2.46

6

PROTECTOR A, EX. PIPE

18341-MEH-000

Unavailable

7

PROTECTOR, FR. MUFFLER

18342-MEH-000

$215.72

8

CHAMBER, EX.

18350-MEH-670

$1,755.87

9

PIPE, RR. EX.

18370-MEH-003

$70.07

10

BAND, MUFFLER

18373-ML7-920

$25.97

11

BAND, MUFFLER

18375-MEH-000

$18.78

12

GASKET, MUFFLER

18391-ML8-000

$8.27

13

GASKET, MUFFLER

18392-MEH-000

Unavailable

14

RUBBER, CHAMBER MOUNTING

18421-MEH-000

$8.62

15

COLLAR, CHAMBER MOUNTING

18422-MEH-000

$9.07

16

RUBBER, MUFFLER MOUNTING

18423-MEH-000

$4.13

17

SENSOR, OXYGEN

36531-MEH-003

$133.90

18

RUBBER, HEAT GUARD MOUNTING

50176-ML7-000

Unavailable

19

GROMMET, SIDE COVER

83551-ME9-000

$3.01

20

WASHER, RUBBER This part replaces 84708-KPM-000.

84708-KPM-010

$1.33

21

SCREW, PAN (6X14)

90113-MM5-000

$2.88

22

BOLT, SOCKET (8X45)

90128-MBE-000

$3.71

23

SCREW, PAN (6X14)

90138-MCA-000

$1.80

24

BOLT, FLANGE (8X35)

90161-ML7-000

$3.41

25

NUT, CAP (8MM)

90208-438-000

$2.80

26

WASHER (8MM)

90501-819-000

$1.36

27

NUT, FLANGE (8MM)

94050-08000

$0.86

28

BOLT, FLANGE (8X55)

95701-08055-07

$1.68
