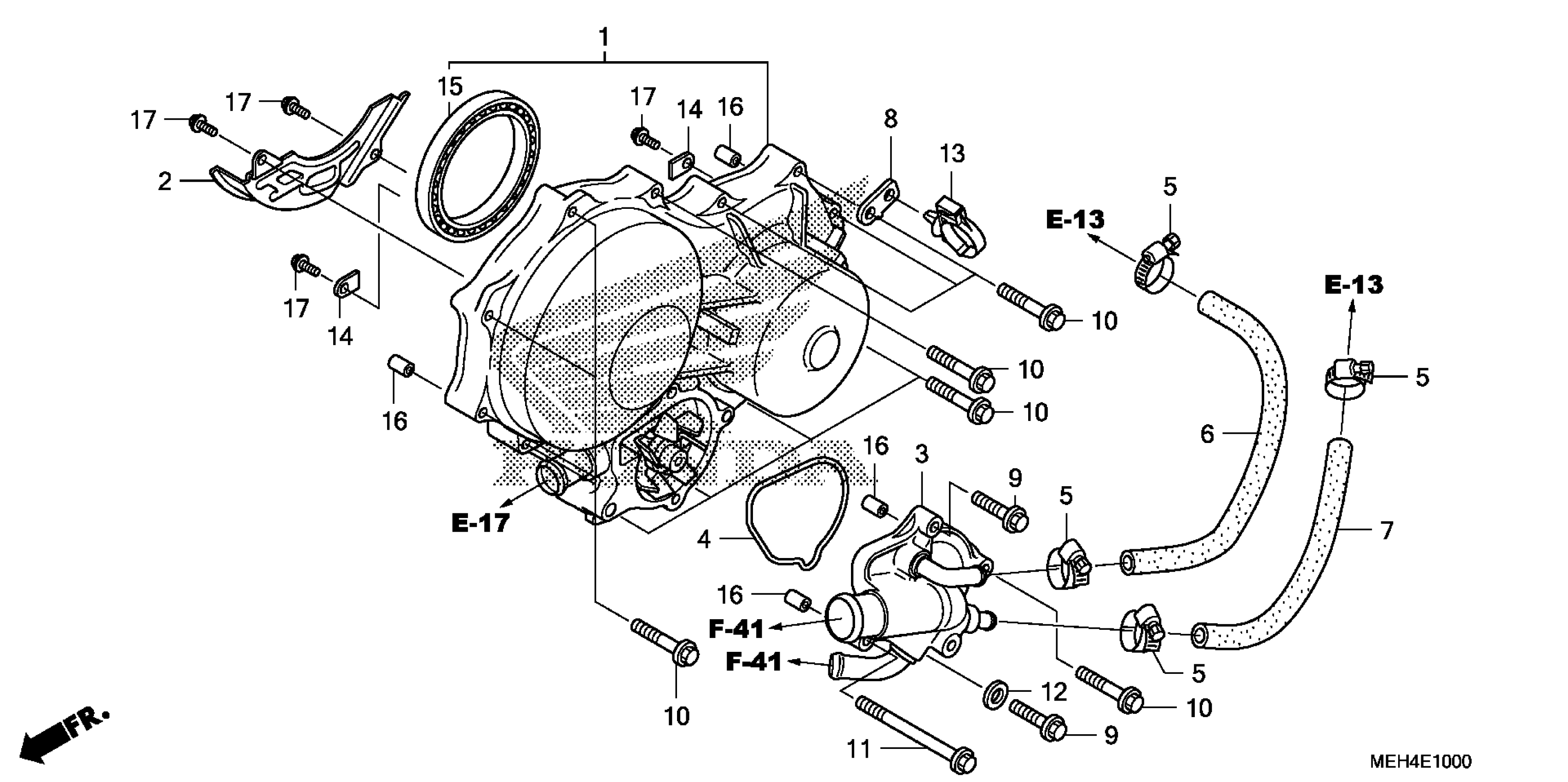

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 LEFT CRANKCASE COVER + WATER PUMP Diagram

COVER, L.

11340-MEH-000

Unavailable

SEPARATOR B, OIL

15713-MEH-000

$4.58

COVER, WATER PUMP

19220-MEH-000

Unavailable

GASKET, WATER PUMP

19226-MEH-000

Unavailable

CLAMP A, WATER HOSE

19505-KS6-700

$10.57

HOSE A, WATER

19521-MEH-000

$17.39

HOSE B, WATER

19522-MEH-000

$10.38

STAY, HARNESS CLIP

32157-MFJ-D00

$3.08

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.86

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.75

BOLT, FLANGE (6X75) (NSHF)

90006-GHB-780

$1.86

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

CLAMP, HARNESS

90652-HC4-003

$5.54

PLATE B, BEARING SETTING

91012-MEL-000

$1.75

BEARING, RADIAL BALL (6816)

91022-MEH-003

$58.64

PIN, DOWEL (8X14)

94301-08140

$2.04

BOLT, FLANGE (6X14)

95701-06014-00

$0.91
