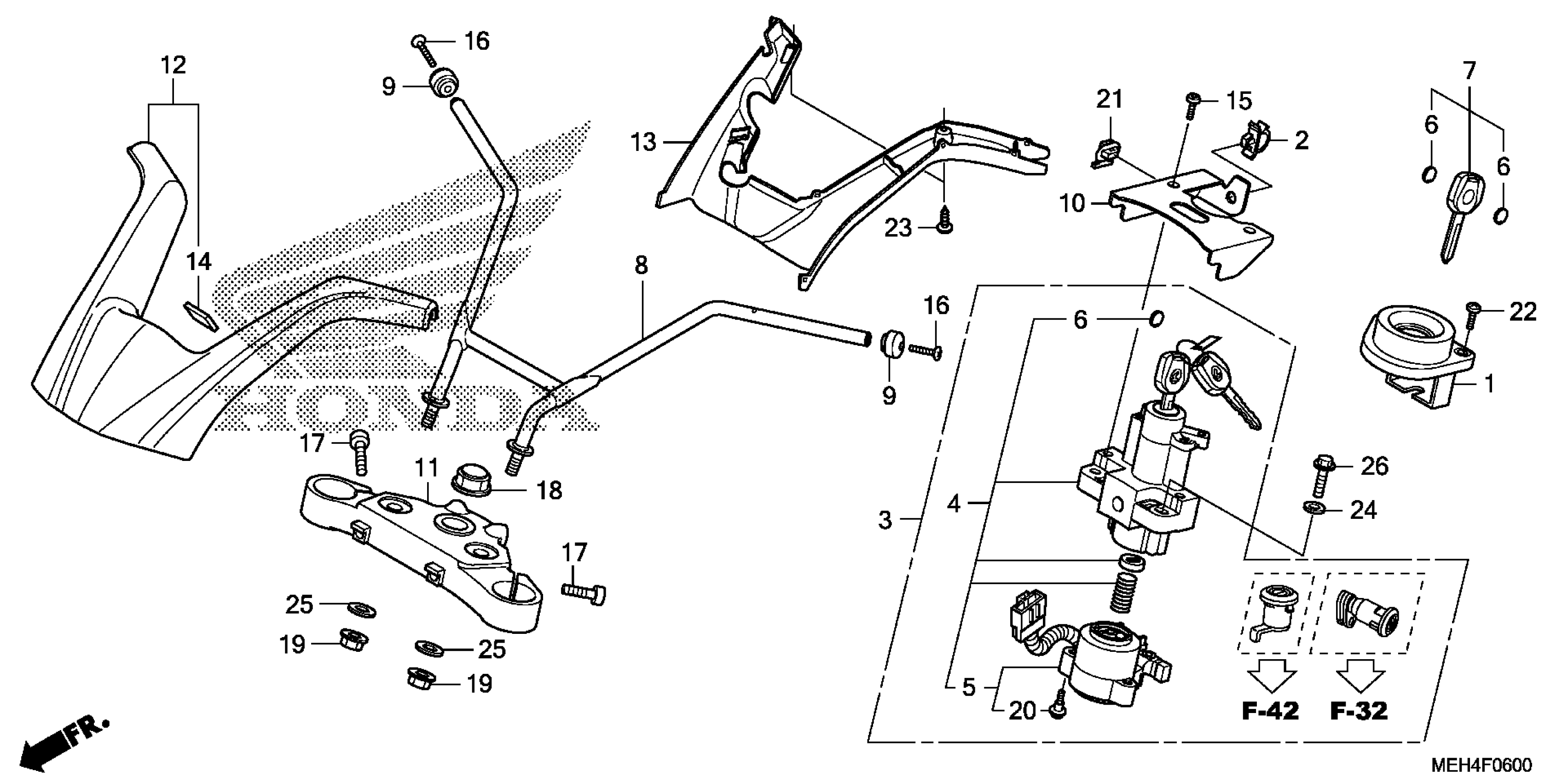

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

COVER, COMBINATION SWITCH TOP

30430-MEH-671

$57.57

2

CLIP, WIRE HARNESS

32161-393-003

$2.84

3

LOCK SET

35010-MEH-670

$175.68

4

SWITCH ASSY., COMBINATION & LOCK

35100-MEH-671

$163.84

5

BASE, CONTACT

35101-MEH-003

$69.24

6

EMBLEM, KEY

35113-MFL-641

$3.73

7

KEY, BLANK | (Optional).

35121-MEH-671

$19.19

8

HANDLEBAR

53100-MEH-000

$265.87

9

WEIGHT, HANDLE

53104-MCN-780

$16.65

10

COVER, HANDLE LOCK

53180-MEH-000

$19.18

11

BRIDGE, FORK TOP

53230-MEH-000

$190.60

12

COVER ASSY., HANDLE *NH194MU* (HEAVY GRAY METALLIC-U)

53250-MEH-000ZA

$145.54

13

COVER, HANDLE (LOWER)

53252-MEH-000

Unavailable

14

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

15

BOLT, ONE-WAY (6X12)

90105-KEB-620

$2.09

16

SCREW, OVAL (6X35)

90107-KSZ-770

$1.35

17

BOLT, SOCKET (8X32)

90160-MN0-000

$3.93

18

NUT, STEERING STEM

90304-MK4-000

$18.07

19

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.68

20

SCREW, TAPPING (3X16)

91059-KY2-711

$2.83

21

CLIP, CONNECTOR (NATURAL)

91533-S04-003

$3.60

22

SCREW, PAN (5X14)

93500-05014-0G

$3.40

23

SCREW, TAPPING (4X12)

93903-24380

Unavailable

24

WASHER, PLAIN (8MM)

94101-08000

Unavailable

25

WASHER, PLAIN (12MM)

94101-12000

$1.13

26

BOLT, FLANGE (8X35)

95801-08035-00

$1.24
