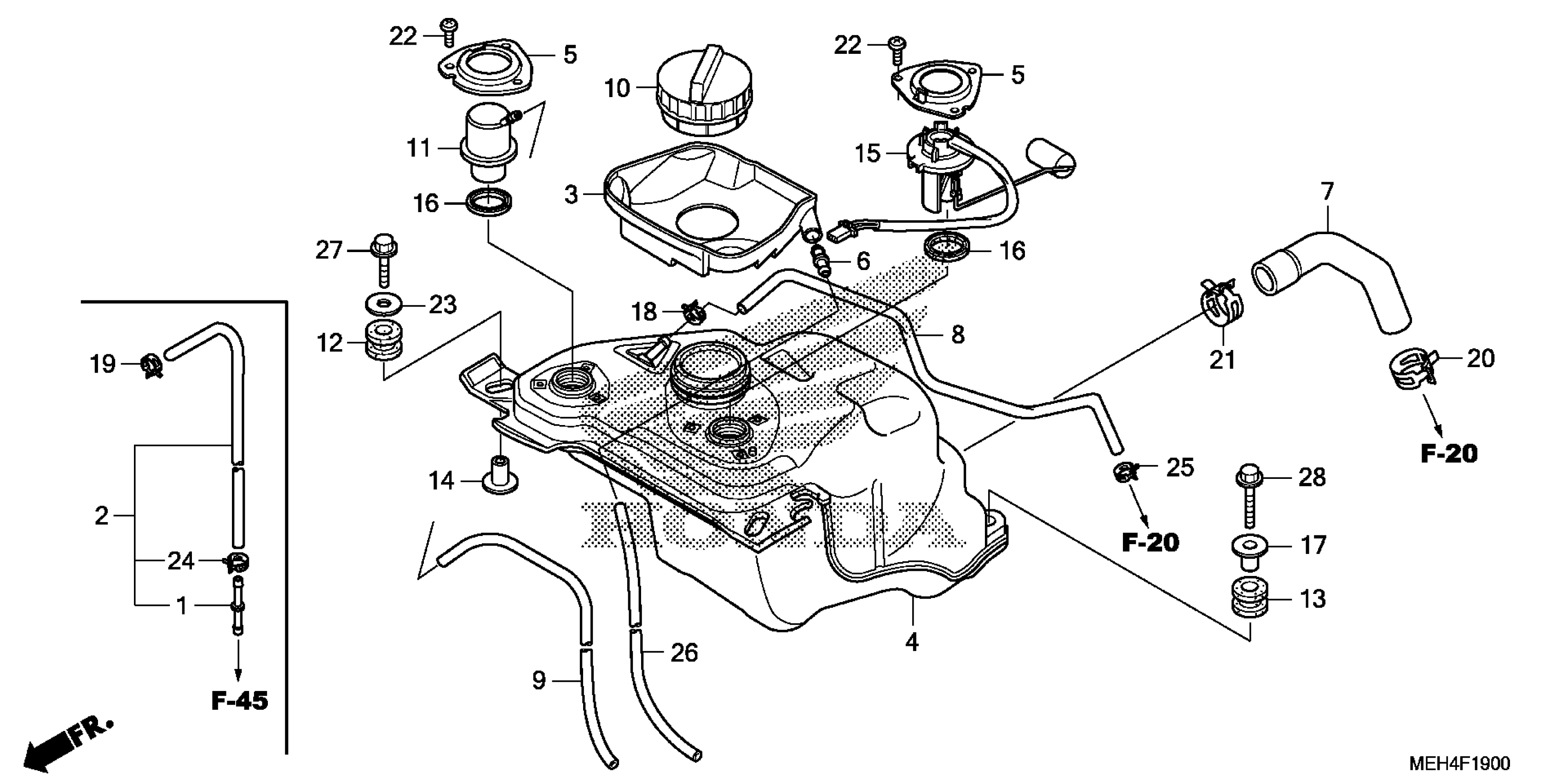

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 FUEL TANK Diagram

#

Description
Price

3

TRAY, FUEL TANK

17507-MEH-000

$13.41

4

TANK, FUEL

17510-MEH-670

$476.21

5

PLATE, UNIT SET

17515-GBL-760

$4.56

6

JOINT, FUEL TUBE

17525-KBN-900

$3.57

7

TUBE, FUEL JOINT

17560-MEH-670

Unavailable

8

TUBE, FUEL RETURN

17561-MEH-670

$23.34

9

TUBE, BREATHER

17566-MEH-670

$9.47

10

CAP ASSY., FUEL TANK This part replaces 17620-MCA-A01.

17620-MEH-003

$40.59

11

SEPARATOR

17630-MEH-670

$20.81

12

RUBBER, MUFFLER

18334-KA3-830

$3.71

13

RUBBER, MUFFLER

18334-ML3-680

$3.71

14

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.29

14

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.29

15

FUEL UNIT

37800-MEH-003

Unavailable

16

GASKET, BASE

37801-GA7-700

$4.93

17

COLLAR, SEAT MOUNTING

77207-464-000

$7.28

18

CLAMP, TUBE (12.0)

90651-HN6-A51

$1.91

20

CLIP, HEATER HOSE (30MM)

90661-SL0-A01

$22.91

21

CLIP, WATER HOSE (CHUO SPRING)

19511-PA6-003

$11.07

21

CLIP, WATER HOSE (CHUO SPRING) This part replaces 91405-PP2-E01.

19511-PA6-003

$11.07

22

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$0.94

23

WASHER, PLAIN (6MM)

94103-06000

Unavailable

25

CLAMP, TUBE (D12.5)

95002-41250-04

$2.34

26

BULK HOSE, VACUUM (8X1000) (8X985)

95005-80001-20M

$29.17

27

BOLT, FLANGE (6X25)

95701-06025-00

$1.79

28

BOLT, FLANGE (6X30)

95701-06030-00

$1.88
