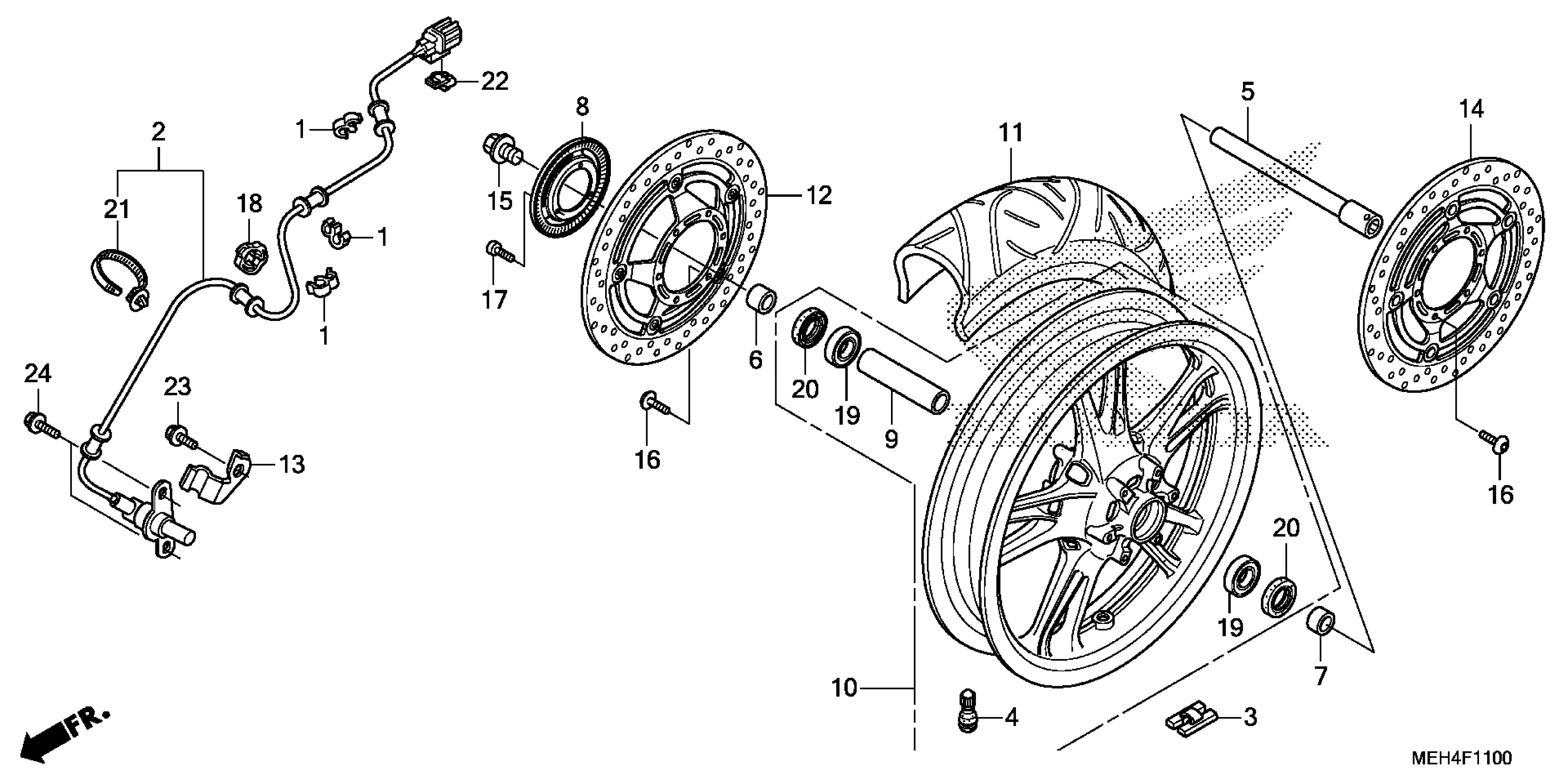

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 FRONT WHEEL Diagram

#

Description
Price

1

CLAMP, PIPE

11152-KS4-003

$7.13

2

SENSOR, FR. WHEEL SPEED

38520-MEH-003

$173.70

3

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

3

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

3

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

4

VALVE, RIM (BS)

42753-ML7-003

$12.74

4

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

5

AXLE, FR. WHEEL

44301-MEH-000

Unavailable

6

COLLAR, FR. WHEEL SIDE

44311-MBB-D40

Unavailable

7

COLLAR, R. FR. WHEEL SIDE (L. SIDE)

44311-MBW-E10

$10.12

8

RING, FR. PULSER

44515-MEJ-D01

$79.49

9

COLLAR, FR. AXLE DISTANCE

44620-MBC-000

$16.92

10

WHEEL SUB-ASSY., FR.

44650-MEH-000

Unavailable

11

TIRE, FR This part replaces 44711-MEH-003.

44711-MEH-013

$231.98

11

TIRE, FR. This part replaces 44711-MEH-004.

44711-MEH-014

Unavailable

12

DISK, R. FR. BRAKE

45120-MEH-003

Unavailable

13

CLAMP, SPEED SENSOR CORD

45161-MCW-D10

$4.84

14

DISK, L. FR. BRAKE

45220-MEH-003

Unavailable

15

BOLT, FR. AXLE

90105-MBT-610

$5.76

16

BOLT, DISK (6X17)

90106-MBB-000

$3.65

17

BOLT, TORX (5X10)

90131-KPB-751

$2.66

18

CLAMP, HARNESS

90690-MEF-800

$1.49

19

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

20

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

21

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.30

22

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

23

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

24

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
