Description

Price

1

FORK ASSY., R. FR.

51400-MEH-671

$630.06

2

SPRING, FR. FORK

51401-MEH-671

$71.41

3

COLLAR, SPRING

51402-MV8-901

$16.35

4

PLATE, SPRING JOINT

51404-MB4-003

$4.71

5

PIPE, FR. FORK

51410-MEH-671

$278.34

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

7

BUSH, GUIDE

51414-MFJ-A51

$6.93

8

BUSH, SLIDER

51415-MFJ-A51

$6.93

9

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.62

10

CASE, R. (LOWER)

51420-MEH-003

$321.65

11

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$22.78

12

RING, PISTON

51437-MB4-003

$8.82

13

PIPE, SEAT

51440-MEH-671

$36.26

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

15

BOLT, FR. FORK

51454-MM9-671

$35.21

16

PROTECTOR, FORK PIPE

51460-MCS-G01

$10.19

17

SEAL SET, FR. FORK This part replaces 51490-MER-R61.

51490-MKA-D81

$20.90

18

FORK ASSY., L. FR.

51500-MEH-671

$630.06

19

CASE, L. (LOWER)

51520-MEH-003

$336.04

20

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

21

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

22

WASHER, SPECIAL (8MM)

90544-283-000

$2.65

23

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$7.88

24

O-RING (33.2X2.4)

91356-KF0-003

$3.59

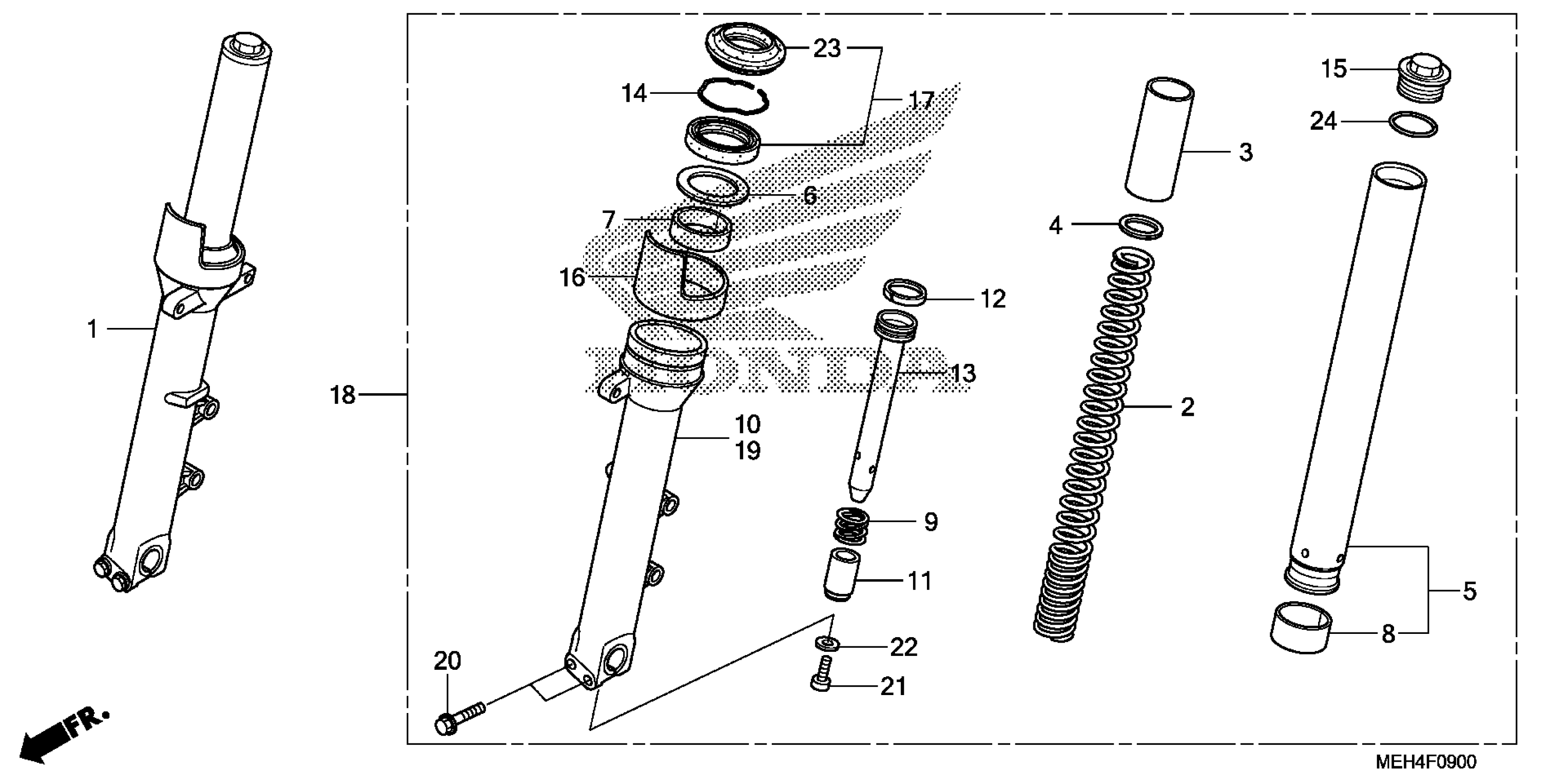

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 FRONT FORK Diagram
