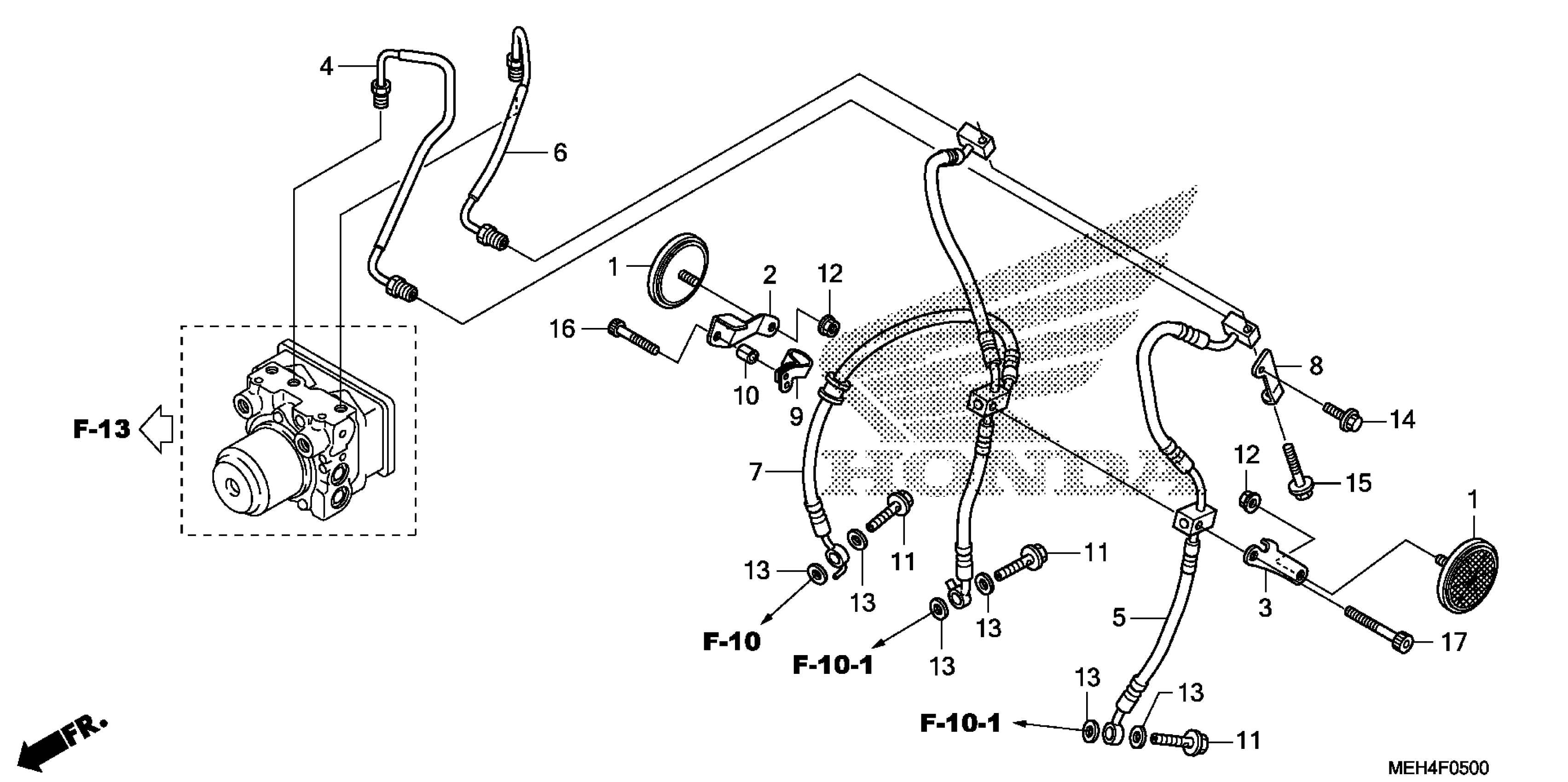

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 FRONT BRAKE HOSE Diagram

REFLECTOR, FR. REFLEX

33741-KAK-971

$8.25

STAY, R. FR. REFLECTOR

33742-MEH-670

$10.26

STAY, L. FR. REFLECTOR

33743-MEH-670

$8.13

PIPE A, FR. BRAKE SUB

43320-MEH-000

$16.30

HOSE B, FR. BRAKE SUB

43325-MEH-003

$60.36

PIPE B, FR. BRAKE MAIN

45126-MEH-000

$15.61

HOSE B, FR. BRAKE MAIN

45127-MEH-003

$88.46

STAY, FR. BRAKE HOSE

45157-MEH-000

$4.52

CLAMP, R. FR. BRAKE HOSE

45158-MEH-000

$5.12

COLLAR A, RR. FENDER

80108-028-000

$1.87

BOLT, OIL (10X22)

90145-MS9-612

$6.82

NUT, U (6MM)

90301-MG3-000

$6.44

WASHER, OIL BOLT

90545-300-000

$3.72

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

BOLT, FLANGE (6X28)

96001-06028-07

$1.38

BOLT, SOCKET (6X35)

96700-06035-07

Unavailable

BOLT, SOCKET (6X55)

96700-06055-07

$1.07
