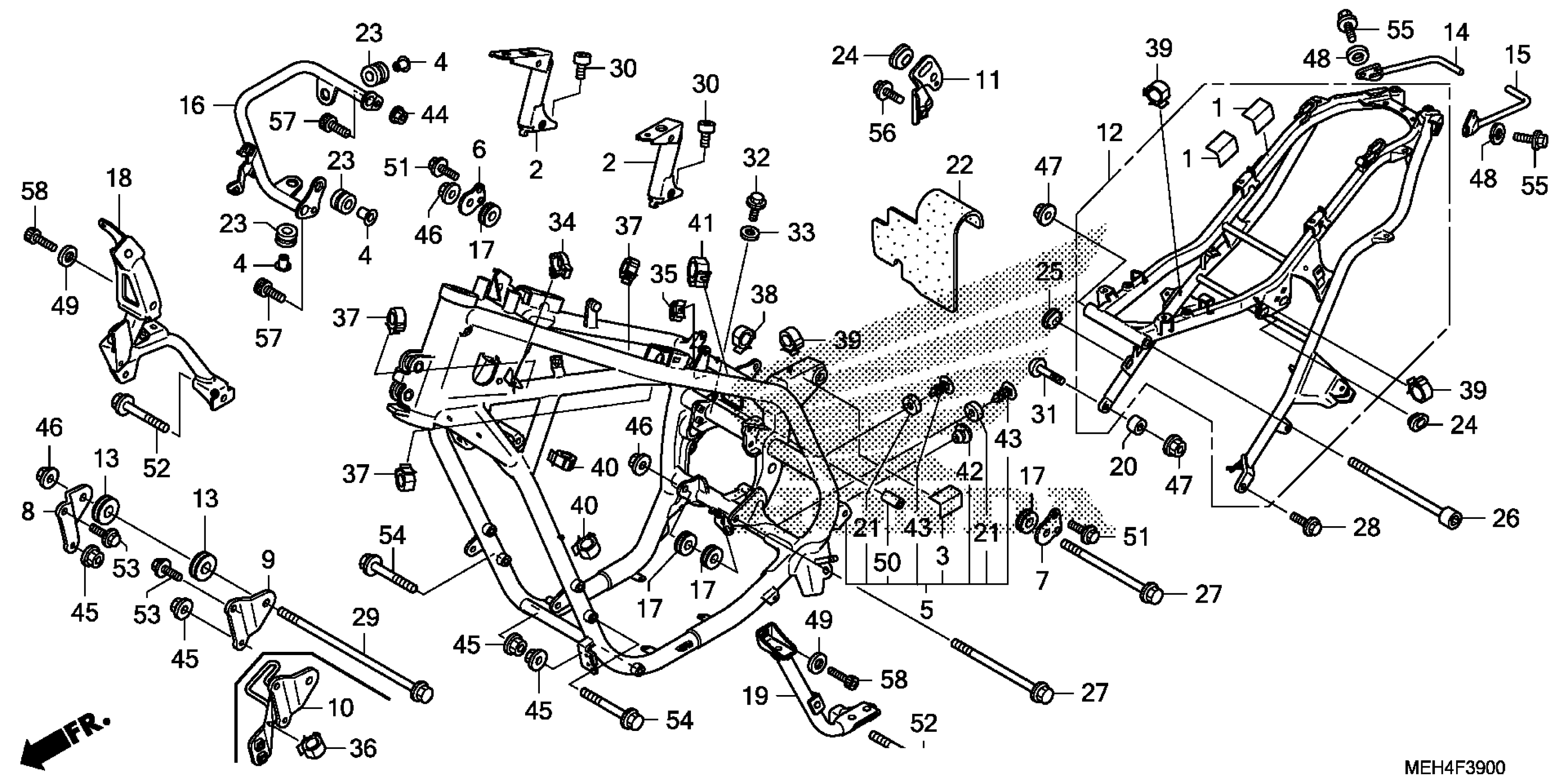

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 FRAME Diagram

#

Description
Price

1

FILM, PROTECTOR

17503-MBT-D50

$2.08

2

STAY, MAIN TANK FUEL

17505-MEH-000

$12.90

3

PROTECTOR

17518-MY9-690

$2.75

4

COLLAR, MUFFLER

18357-KA4-710

$6.18

5

FRAME SET *NH1L* (BLACK) | Use up to Frame SN 9K000006

50010-MEH-000ZA

$1,647.17

5

FRAME SET *NH1L* (BLACK) | Use from Frame SN 9K000007

50010-MEH-710ZA

$1,707.83

6

PLATE, R. RR. ENGINE HANGER (UPPER)

50141-MEH-000

$7.61

7

PLATE, L. RR. ENGINE HANGER (UPPER)

50142-MEH-000

$7.61

8

PLATE, R. FR. ENGINE HANGER (UPPER)

50143-MEH-000

$15.25

9

PLATE, L. FR. ENGINE HANGER (UPPER)

50144-MEH-000

$15.25

11

STAY, SIDE COVER (UPPER)

50171-MEH-000

$6.39

12

RAIL, SEAT

50200-MEH-000

Unavailable

13

RUBBER C, MOUNT

50203-MCT-000

$10.49

14

STAY, R. RR. FENDER

50236-MEH-670

Unavailable

15

STAY COMP, L. RR. . FENDER

50237-MEH-670

Unavailable

16

HOLDER, ABS MODULATOR

50250-MEH-000

$68.01

17

RUBBER, THRUST (11.3MM)

50341-MEH-000

$9.52

18

PIPE, R. STEP BOARD

50630-MEH-010

$113.10

19

PIPE, L. STEP BOARD

50640-MEH-000

$56.30

20

COLLAR, PILLION STEP

50716-KR3-000

$5.41

21

RUBBER B, WINDSCREEN

64212-KM3-000

$3.14

22

RUBBER, RR. ENGINE

64920-MEH-000

$34.07

23

RUBBER, CUSHION

77150-MJ6-740

$3.13

24

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

25

GROMMET, AIR CLEANER HOUSING

83551-240-300

$3.01

26

BOLT, SOCKET (10X164)

90103-MEH-000

$8.93

27

BOLT, ENGINE HANGER (10X148)

90103-147-000

$11.11

28

BOLT, FLANGE (10X25)

90109-MEH-000

$5.81

29

BOLT, FLANGE (10X213)

90111-MBB-000

$12.91

30

BOLT, SOCKET (8X16)

90115-463-000

$8.04

31

BOLT, SOCKET (10X42)

90125-MCS-G00

$2.29

32

BOLT, FLANGE (8X30)

90136-MEH-000

$1.96

33

WASHER (8MM)

90485-GB4-790

$1.97

34

CLAMP, HARNESS

90652-HC4-003

$5.54

35

CLAMP, BRAKE PIPE (7.0X2)

90661-MEW-921

$2.58

37

CLIP, CABLE (10MM)

90690-GHB-641

$1.99

38

CLIP, CABLE (15MM)

90690-GHB-651

$1.99

39

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

40

CLIP, CABLE (25MM)

90690-GHB-671

$1.99

41

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

42

PLUG, HOLE

90852-446-630

$2.33

43

CLIP, RR. ROOF RAIL *NH1L* (BLACK)

91504-SR2-000ZE

$7.87

44

NUT, FLANGE (8MM)

94050-08000

$0.86

45

NUT, FLANGE (8MM)

94050-08070

$1.36

46

NUT, FLANGE (10MM)

94050-10000

$1.41

47

NUT, FLANGE (10MM)

90303-428-900

$3.12

47

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.12

48

WASHER, PLAIN (10MM)

94101-10000

Unavailable

49

WASHER, PLAIN (8MM)

94102-08000

$0.86

50

TUBE, VINYL (4.5X6.5X30)

95003-08003-10

$0.59

51

BOLT, FLANGE (8X18)

95701-08018-07

$0.77

52

BOLT, FLANGE (8X60)

95701-08060-07

$1.80

53

BOLT, FLANGE (8X25)

95701-08025-07

$0.88

53

BOLT, FLANGE (8X25) This part replaces 95801-08025-07.

95701-08025-07

$0.88

54

BOLT, FLANGE (8X65)

95801-08065-07

$1.19

55

BOLT, FLANGE (10X16)

95801-10016-00

$1.19

56

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

57

BOLT, SOCKET (8X16)

96600-08016-00

$1.64

57

BOLT, SOCKET (8X16) This part replaces 96700-08016-00.

96600-08016-00

$1.64

58

BOLT, SOCKET (8X20)

96700-08020-00

$1.64

58

BOLT, SOCKET (8X20) This part replaces 96700-08020-10.

96700-08020-00

$1.64
