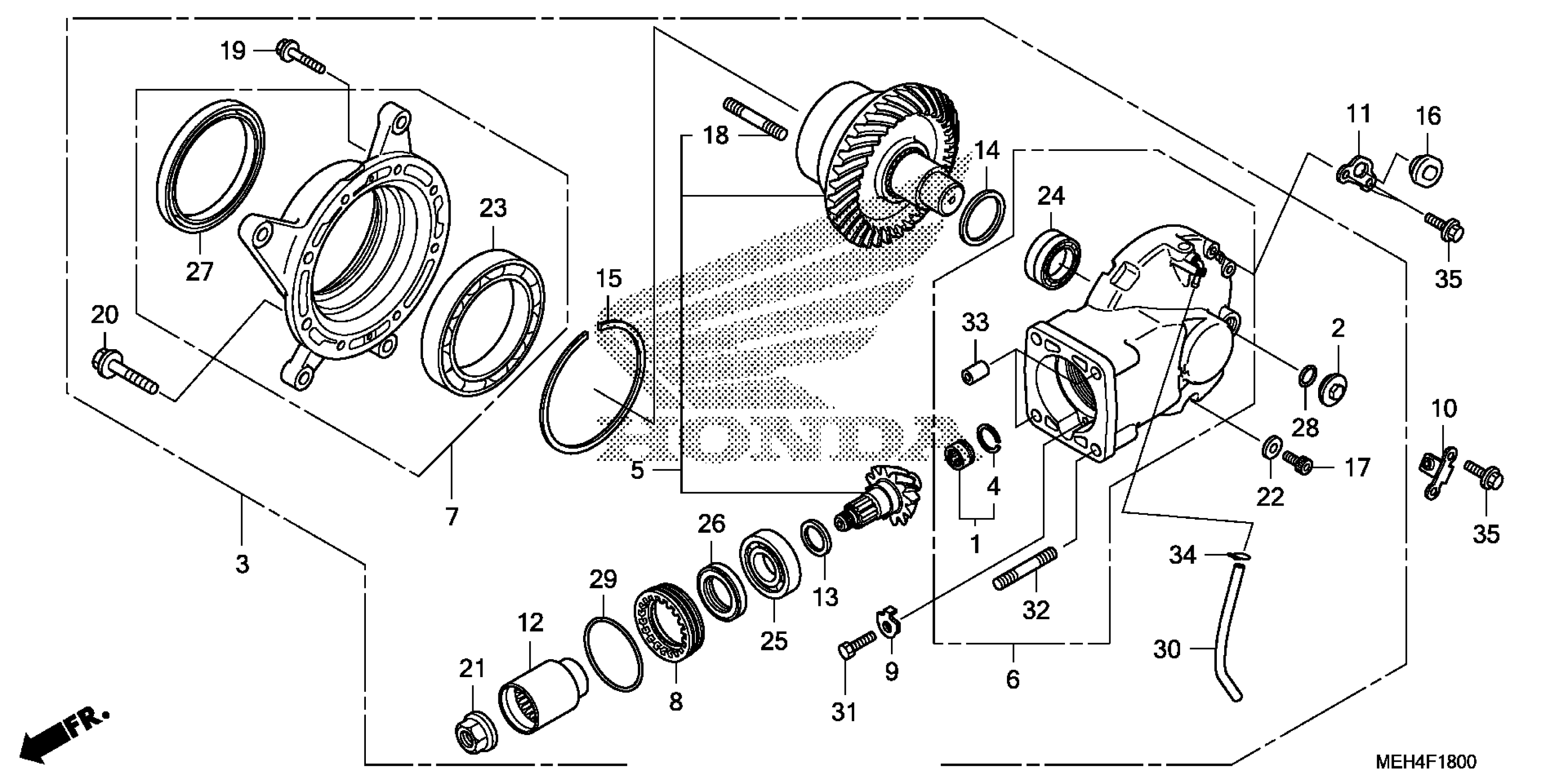

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-MBL-610

$25.08

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

GEAR ASSY., FINAL

41300-MEH-000

Unavailable

4

RING, STOPPER

41305-MB4-770

$5.62

5

GEAR SET, FINAL

41310-MEH-000

$447.62

6

CASE SUB-ASSY., FINAL GEAR

41311-MEH-000

$1,056.56

7

COVER SUB-ASSY., FINAL GEAR

41320-MEH-000

$255.97

8

RETAINER, BEARING

41331-MN5-000

$115.31

9

LOCK A, BEARING ADJUSTING (SINGLE TAB)

41332-415-000

$2.51

9

LOCK B, BEARING ADJUSTING (DOUBLE TABS)

41333-415-000

$2.51

10

STAY A, FINAL GEAR COVER

41352-MEH-010

$3.54

11

STAY B, FINAL GEAR COVER

41353-MEH-000

$3.54

12

JOINT, PINION

41410-ME9-770

$146.31

13

SHIM A, PINION GEAR (1.32)

41450-MG9-000

$7.18

13

SHIM B, PINION GEAR (1.38)

41451-MG9-000

$7.18

13

SHIM C, PINION GEAR (1.44)

41452-MG9-000

$7.18

13

SHIM D, PINION GEAR (1.50)

41453-MG9-000

$7.18

13

SHIM E, PINION GEAR (1.56)

41454-MG9-000

$7.18

13

SHIM F, PINION GEAR (1.62)

41455-MG9-000

$7.18

13

SHIM G, PINION GEAR (1.68)

41456-MG9-000

$7.18

14

SHIM A, SHAFT (1.73)

41510-MS9-750

$5.92

14

SHIM B, SHAFT (1.76)

41511-MS9-750

$5.92

14

SHIM C, SHAFT (1.79)

41512-MS9-750

$5.92

14

SHIM D, SHAFT (1.82)

41513-MS9-750

$5.92

14

SHIM E, SHAFT (1.85)

41514-MS9-750

$5.92

14

SHIM F, SHAFT (1.88)

41515-MS9-750

$5.92

14

SHIM G, SHAFT (1.91)

41516-MS9-750

$5.92

14

SHIM H, SHAFT (1.94)

41517-MS9-750

$5.92

14

SHIM I, SHAFT (1.97)

41518-MS9-750

$5.92

14

SHIM J, SHAFT (2.00)

41519-MS9-750

$5.92

14

SHIM K, SHAFT (2.03)

41520-MS9-750

$5.92

14

SHIM L, SHAFT (2.06)

41521-MS9-750

$5.92

14

SHIM M, SHAFT (2.09)

41522-MS9-750

$5.92

14

SHIM N, SHAFT (2.12)

41523-MS9-750

$5.92

14

SHIM O, SHAFT (2.15)

41524-MS9-750

$5.92

14

SHIM P, SHAFT (0.45)

41525-MS9-750

$5.92

15

SHIM A, RING GEAR (1.82)

41530-MCA-000

$7.85

15

SHIM B, RING GEAR (1.88)

41531-MCA-000

$7.85

15

SHIM C, RING GEAR (1.94)

41532-MCA-000

$7.85

15

SHIM D, RING GEAR (2.00)

41533-MCA-000

$7.85

15

SHIM E, RING GEAR (2.06)

41534-MCA-000

$7.85

15

SHIM F, RING GEAR (2.12)

41535-MCA-000

$7.85

15

SHIM G, RING GEAR (2.18)

41536-MCA-000

$7.85

15

SHIM H, RING GEAR (2.24)

41537-MCA-000

$7.85

15

SHIM I, RING GEAR (2.30)

41538-MCA-000

$7.85

15

SHIM J, RING GEAR (2.36)

41539-MCA-000

$7.85

15

SHIM K, RING GEAR (2.42)

41540-MCA-000

$7.85

15

SHIM L, RING GEAR (2.48)

41541-MCA-000

$7.85

15

SHIM M, RING GEAR (2.54)

41542-MCA-000

$7.57

15

SHIM N, RING GEAR (2.60)

41543-MCA-000

$7.95

15

SHIM P, RING GEAR (2.66)

41544-MCA-000

$8.28

16

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

17

BOLT, SOCKET (8X11)

90109-ME5-770

$5.73

18

BOLT, STUD (12X46)

90125-MCA-300

$4.95

19

BOLT, FLANGE (8X30)

90133-MCA-000

$1.49

20

BOLT, FLANGE (10X38)

90134-MCA-000

$2.48

21

NUT, HEX. (16MM)

90381-MB0-010

$6.90

22

GASKET (8MM)

90471-580-000

$2.92

23

BEARING, RADIAL BALL (100X125X13)

91051-MEH-003

$67.74

24

BEARING, RADIAL BALL (30X55X18)

91052-MS9-003

$21.59

25

BEARING, RADIAL BALL (QJ3/28V1)

91061-MT3-003

$67.87

26

OIL SEAL (39X56X7)

91262-MCH-003

$8.89

27

OIL SEAL (99.7X117X7)

91265-MEH-003

$19.57

28

O-RING (30.8MM)

91302-001-020

$3.75

29

O-RING (64.5X3.5) (ARAI)

91359-MG9-003

$4.53

30

TUBE, FINAL GEAR BREATHER

91451-MEC-A01

Unavailable

31

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

32

BOLT, STUD (10X40)

92900-10040-0E

$2.39

33

PIN A, DOWEL (12X16)

94301-12160

$2.27

34

CLIP, TUBE (B7)

95002-02079

$1.49

35

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
