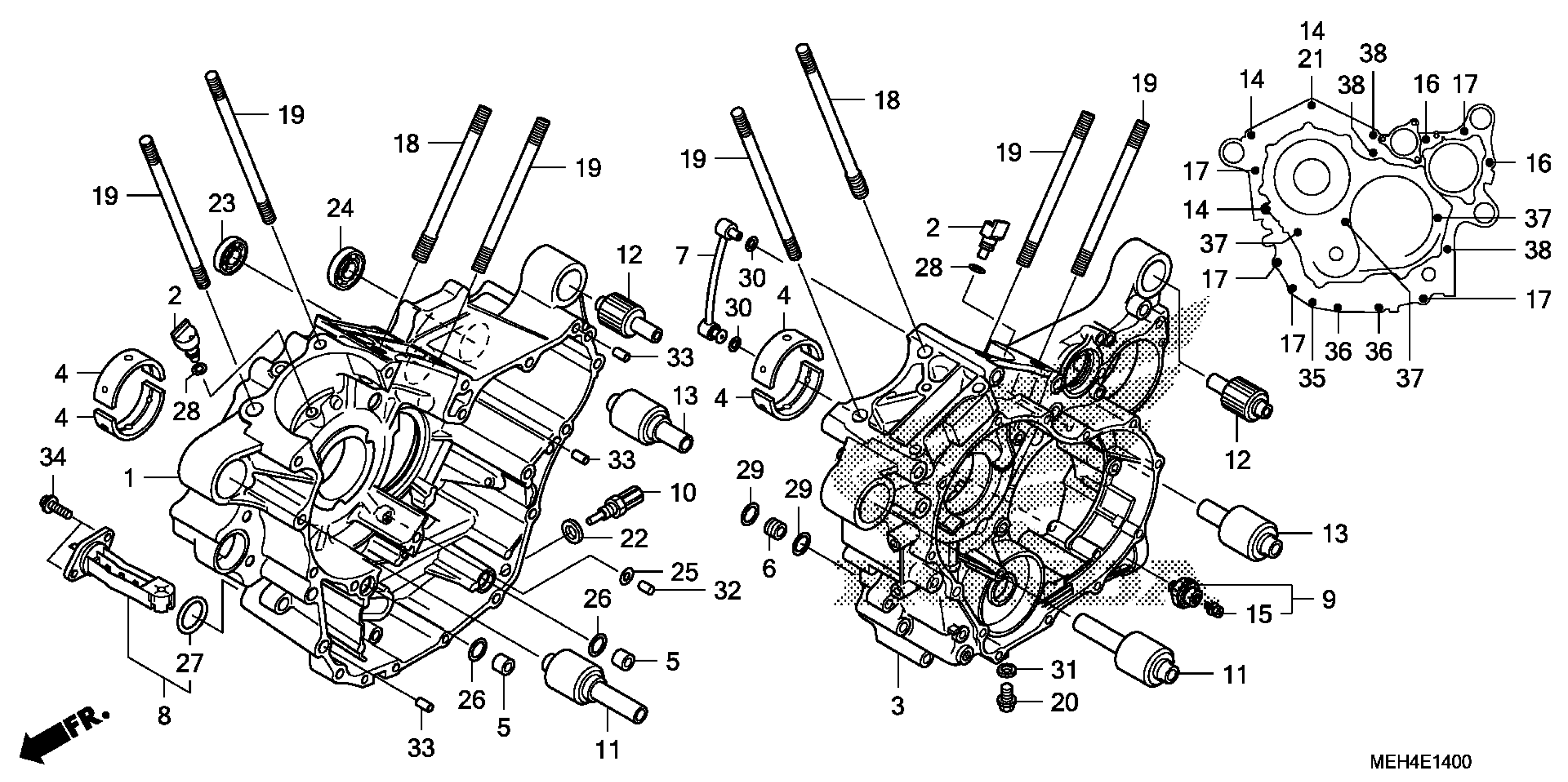

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-MEH-000

$1,003.61

2

JET, OIL

11140-MEW-920

$11.38

3

CRANKCASE, L.

11200-MEH-000

$1,003.61

4

BEARING A, CRANKSHAFT (BLUE)

13321-MEG-003

$13.64

4

BEARING B, CRANKSHAFT (BLACK)

13322-MEG-003

$13.64

4

BEARING C, CRANKSHAFT (BROWN)

13323-MEG-003

$13.64

4

BEARING D, CRANKSHAFT (GREEN)

13324-MEG-003

$13.64

4

BEARING E, CRANKSHAFT (OVER SIZE) (YELLOW) | (Optional).

13325-MEG-305

$13.07

4

BEARING F, CRANKSHAFT (OVER SIZE) (PINK) | (Optional).

13326-MEG-305

$13.07

4

BEARING G, CRANKSHAFT (OVER SIZE) (RED) | (Optional).

13327-MEG-305

$13.07

5

COLLAR, O-RING

15155-300-000

$3.47

6

COLLAR, OIL PUMP

15335-MEH-000

$7.69

7

PIPE, OIL PASSAGE

15510-MEH-000

$44.66

8

SWITCH ASSY., OIL LEVEL

35480-MEH-003

Unavailable

9

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$44.49

10

SENSOR ASSY., THERMOSTAT OIL

37750-KPH-701

$51.87

11

RUBBER A, MOUNT

50332-MEH-000

$22.56

12

RUBBER B, MOUNT

50333-MEH-000

$22.56

13

RUBBER C, MOUNT

50334-MEH-000

$22.56

14

BOLT, FLANGE (8X140)

90002-MEW-920

$4.54

15

BOLT-WASHER (4X8) (DENSO)

90002-PA6-003

$5.85

16

BOLT, FLANGE (8X70)

90008-MEW-920

$3.82

17

BOLT, FLANGE (8X80)

90010-MEG-000

$2.61

18

BOLT, STUD (12X146.5)

90012-MEW-920

$8.10

19

BOLT, STUD (10X150.5)

90013-MEW-920

$7.39

20

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

20

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

21

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

22

WASHER, SEALING (10MM)

90441-425-000

$2.13

23

BEARING, SPECIAL RADIAL BALL (6204) (NTN)

91001-GM4-033

$27.94

24

BEARING, RADIAL BALL (62/28)

91008-MT3-004

$30.16

25

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

26

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

26

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.78

27

O-RING (31.8X2.4) (TOYO)

91305-MEH-003

$6.95

28

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

29

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

29

O-RING (14.8X2.2)

91313-MG7-004

$3.67

30

O-RING (6X3)

91319-323-000

$2.84

31

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

32

PIN, DOWEL (8X14)

94301-08140

$2.25

33

PIN, DOWEL (10X16)

94301-10160

$2.28

34

BOLT, FLANGE (6X18)

95701-06018-07

$1.55

35

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

36

BOLT, FLANGE (6X75)

95701-06075-00

$2.30

37

BOLT, FLANGE (8X80)

95701-08080-09

$1.49

38

BOLT, FLANGE (8X125) This part replaces 95701-08125-00.

95701-08125-07

$4.87

38

BOLT, FLANGE (8X125)

95701-08125-07

$4.87
