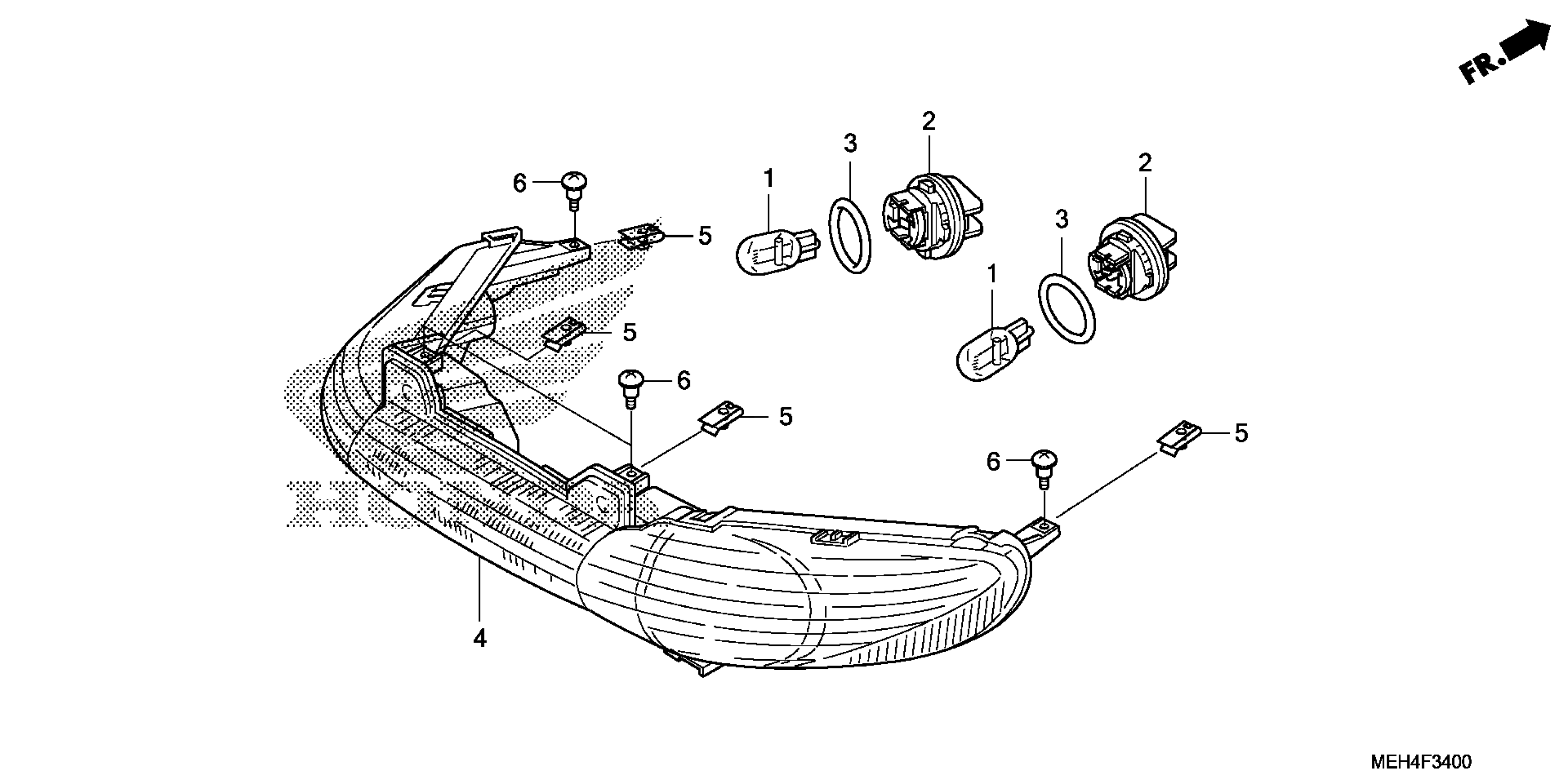

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 COMBINATION LIGHT Diagram

#

Description

Price

1

BULB (12V 21W) This part replaces 33303-S2R-003.

33303-SCK-003

$8.01

2

SOCKET

33303-S47-901

$12.75

3

SEAL, GASKET

33305-S47-003

$4.93

4

COMBINATION UNIT, RR.

33710-MEH-671

$373.18

5

NUT, CLIP (5MM)

90677-GR1-003

$4.09

6

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.68
