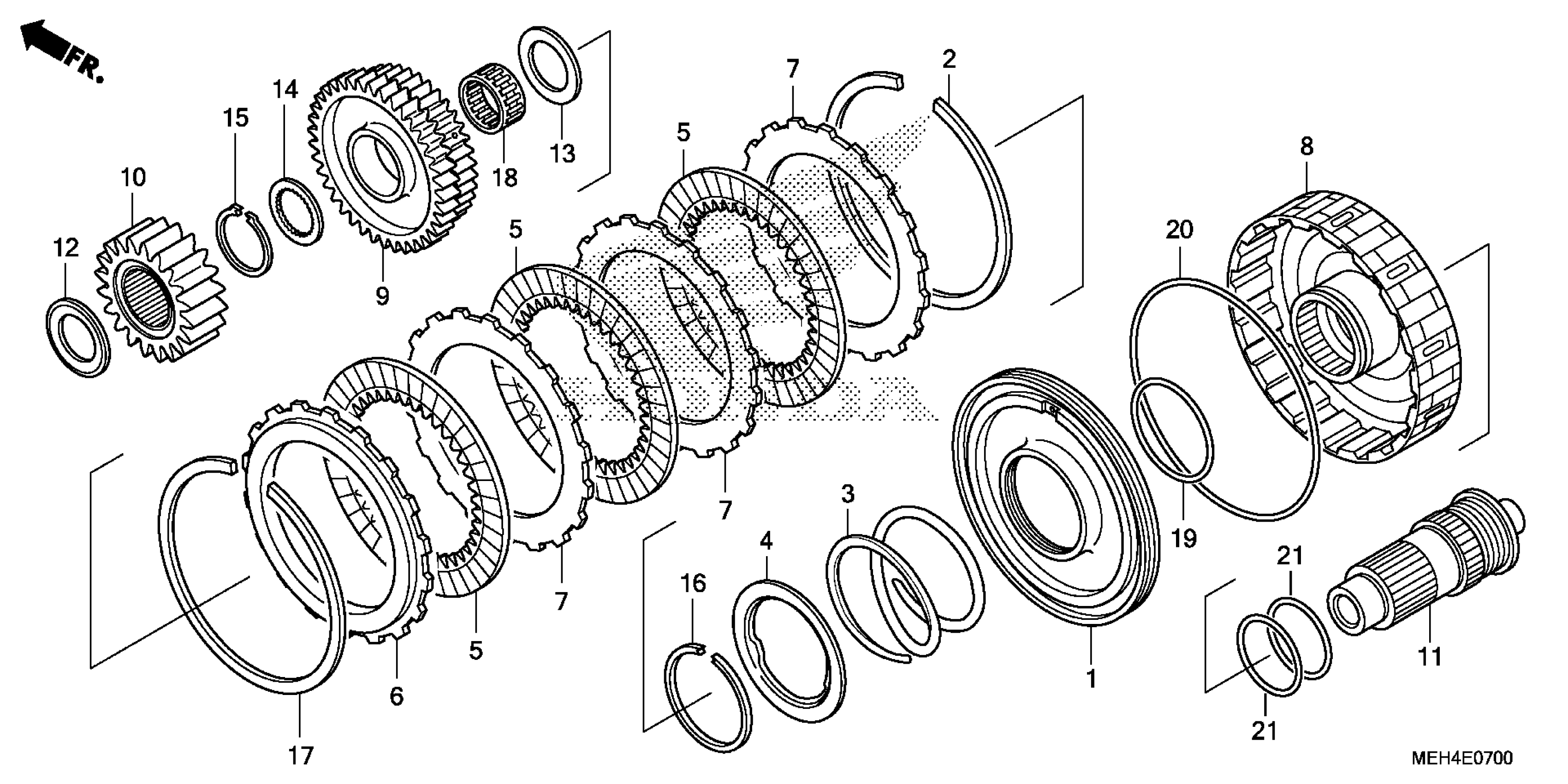

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 CLUTCH Diagram

#

Description
Price

1

PISTON, CLUTCH

22530-HN8-003

$55.96

2

SPRING, CLUTCH WAVE

22536-HN8-003

$7.46

3

SPRING, CLUTCH RETURN

22541-HN8-003

$11.08

4

SEAT, RETURN SPRING

22542-HN8-003

$7.03

5

DISK, CLUTCH

22544-P4M-931

$22.79

6

PLATE, CLUTCH END (1) (2.1MM)

22551-P4R-003

$21.77

6

PLATE, CLUTCH END (2) (2.2MM)

22552-P4R-003

$30.23

6

PLATE, CLUTCH END (3) (2.3MM)

22553-P4R-003

$30.23

6

PLATE, CLUTCH END (4) (2.4MM)

22554-P4R-003

$30.23

6

PLATE, CLUTCH END (5) (2.5MM)

22555-P4R-003

$30.23

6

PLATE, CLUTCH END (6) (2.6MM)

22556-P4R-003

$30.23

6

PLATE, CLUTCH END (7) (2.7MM)

22557-P4R-003

$21.77

6

PLATE, CLUTCH END (11) (1.9MM)

22561-HN8-003

$15.62

6

PLATE, CLUTCH END (12) (2.0MM)

22562-HN8-003

$15.62

7

PLATE, CLUTCH

22643-P4R-003

$23.32

8

GUIDE, THIRD CLUTCH

22651-PLX-A01

$84.07

9

GEAR A, FINAL DRIVEN (38T/38T)

23511-MEH-000

$116.34

10

GEAR B, FINAL DRIVE (20T)

23521-MEH-000

$47.43

11

SHAFT, FINAL REDUCTION

23600-MEH-000

$87.46

12

WASHER, THRUST (20MM)

90403-HA7-670

$6.92

13

WASHER, THRUST (28X44X1.5)

90403-KN7-670

$9.56

14

WASHER, SPLINE (28X38X1.5)

90451-MEH-000

$2.39

15

CIRCLIP (28MM)

90601-422-000

$2.98

16

CIRCLIP (OUTER) (42MM)

90603-PL4-000

$2.63

16

CIRCLIP (OUTER) (42MM) This part replaces 90603-P24-A11.

90603-PL4-000

$2.63

17

RING, SNAP (119MM)

90605-PC9-000

$14.89

17

RING, SNAP (119MM) (F.C.C.)

90605-P24-A01

$8.79

18

BEARING, NEEDLE (28X33X16.8) (NTN)

91012-PZ4-003

$67.90

19

O-RING (41.8X2.2) (NOK)

91302-PL4-003

$4.17

20

O-RING (104X2.2) (NOK) This part replaces 91303-PC9-003.

91303-PC9-004

$9.23

20

O-RING (104X2.2) (NOK)

91303-PC9-004

$9.23

21

O-RING (31.2X1.9) (ARAI)

91307-PA9-003

$3.69
