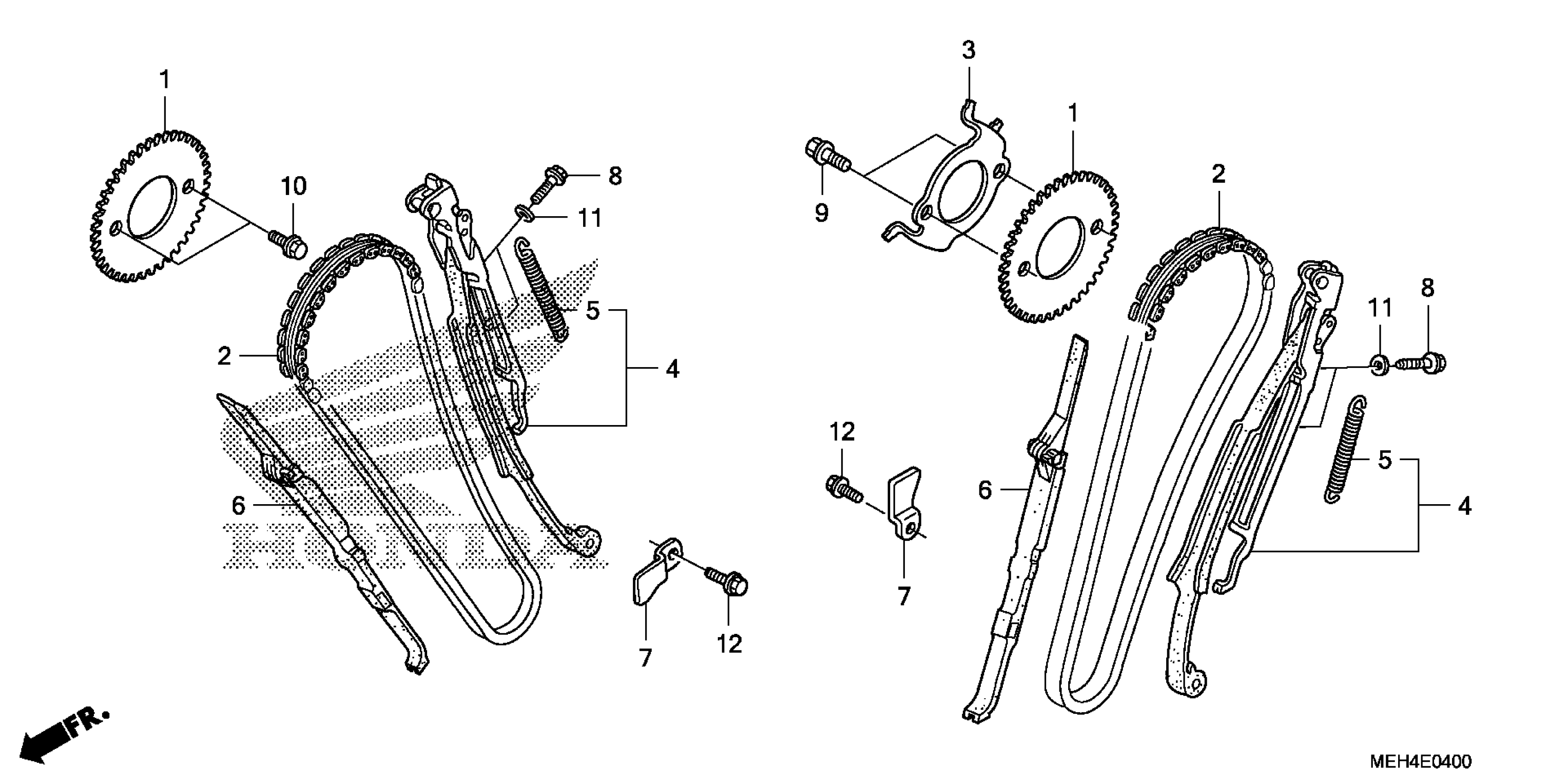

Honda NSA700AA (09) DN-01, JPN, VIN# JH2RC550-9K000001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (40T)

14322-MEH-000

$50.87

CHAIN, CAM (118L) (BORG WARNER)

14401-MAN-621

$93.78

ROTOR, CAM PULSE

14405-MEW-920

$29.19

TENSIONER, CAM CHAIN

14510-MR1-000

Unavailable

SPRING, CAM CHAIN TENSIONER (NIPPON HATSUJO)

14516-MG8-003

Unavailable

GUIDE, CAM CHAIN

14522-MV1-000

$48.43

PLATE, TENSIONER SETTING

14623-MBA-000

$5.22

BOLT, FLANGE (6X18)

90001-MZ8-U40

$1.75

BOLT, KNOCK (7X16)

90026-MEW-920

$1.44

BOLT, SPECIAL FLANGE (7X13)

90086-MZ8-H00

$3.03

WASHER, SEALING (6MM)

90441-706-000

$1.07

BOLT, FLANGE (6X16)

95701-06016-00

$1.50
