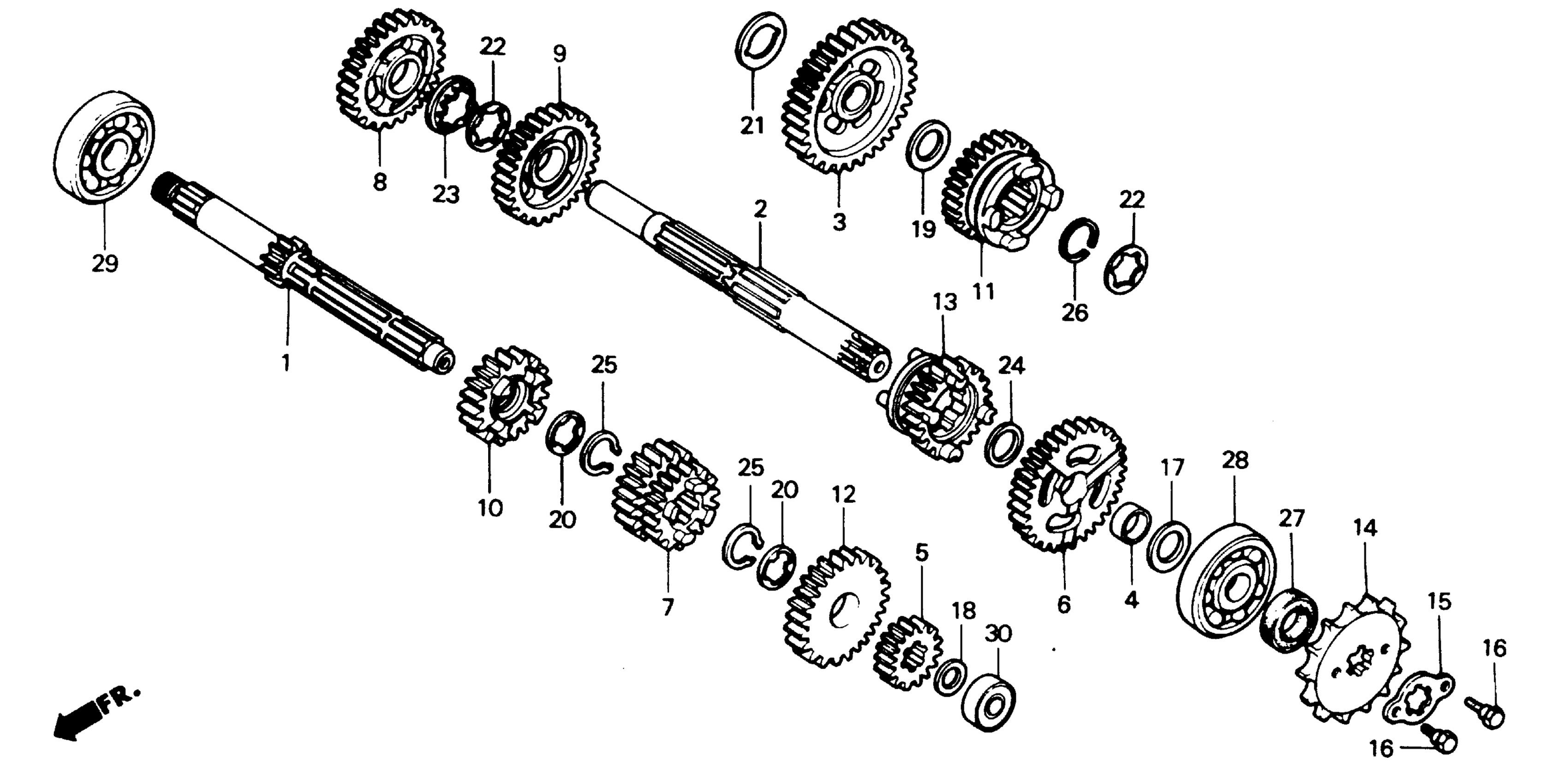

Honda NS50FA (90) MOTORCYCLE, JPN, VIN# JH2AC080-LK000004 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT

23211-GE2-890

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-166-601

Unavailable

3

GEAR, COUNTERSHAFT LOW (39T)

23420-GE2-000

Unavailable

4

BUSH (17MM)

23431-166-600

Unavailable

5

GEAR, MAINSHAFT SECOND (15T)

23441-GE2-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (35T)

23451-GE2-000

Unavailable

7

GEAR, MAINSHAFT THIRD & FOURTH (18/21T)

23461-GE2-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (31T)

23471-GE2-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (29T)

23482-GE2-000

Unavailable

10

GEAR, MAINSHAFT FIFTH (23T)

23491-GE2-000

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (27T)

23501-GE2-000

Unavailable

12

GEAR, MAINSHAFT SIXTH (24T)

23511-GE2-000

Unavailable

13

GEAR, COUNTERSHAFT SIXTH (25T)

23515-GE2-000

Unavailable

14

SPROCKET, DRIVE (14T)

23800-040-010

$17.03

15

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

16

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

17

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

18

WASHER, THRUST (12MM)

90452-166-600

$2.39

19

WASHER, THRUST (16.5MM)

90452-437-000

$3.40

20

WASHER, SPLINE (17MM)

90461-115-000

$2.66

21

WASHER, THRUST (15MM)

90463-166-000

Unavailable

22

WASHER A, SPLINE (19MM)

90464-166-000

$3.76

23

WASHER, LOCK (19MM)

90465-166-600

$4.41

24

WASHER, THRUST (17MM)

90466-166-600

$3.49

25

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

26

CIRCLIP (19MM)

90602-166-010

$3.41

27

OIL SEAL (17X28X7)

91201-415-013

$5.53

28

BEARING, RADIAL BALL (6303)

96100-63030-00

$14.95

29

BEARING, RADIAL BALL (6303)

96120-63030-00

Unavailable

30

BEARING, RADIAL BALL (6001)

96140-60010-00

$11.61
