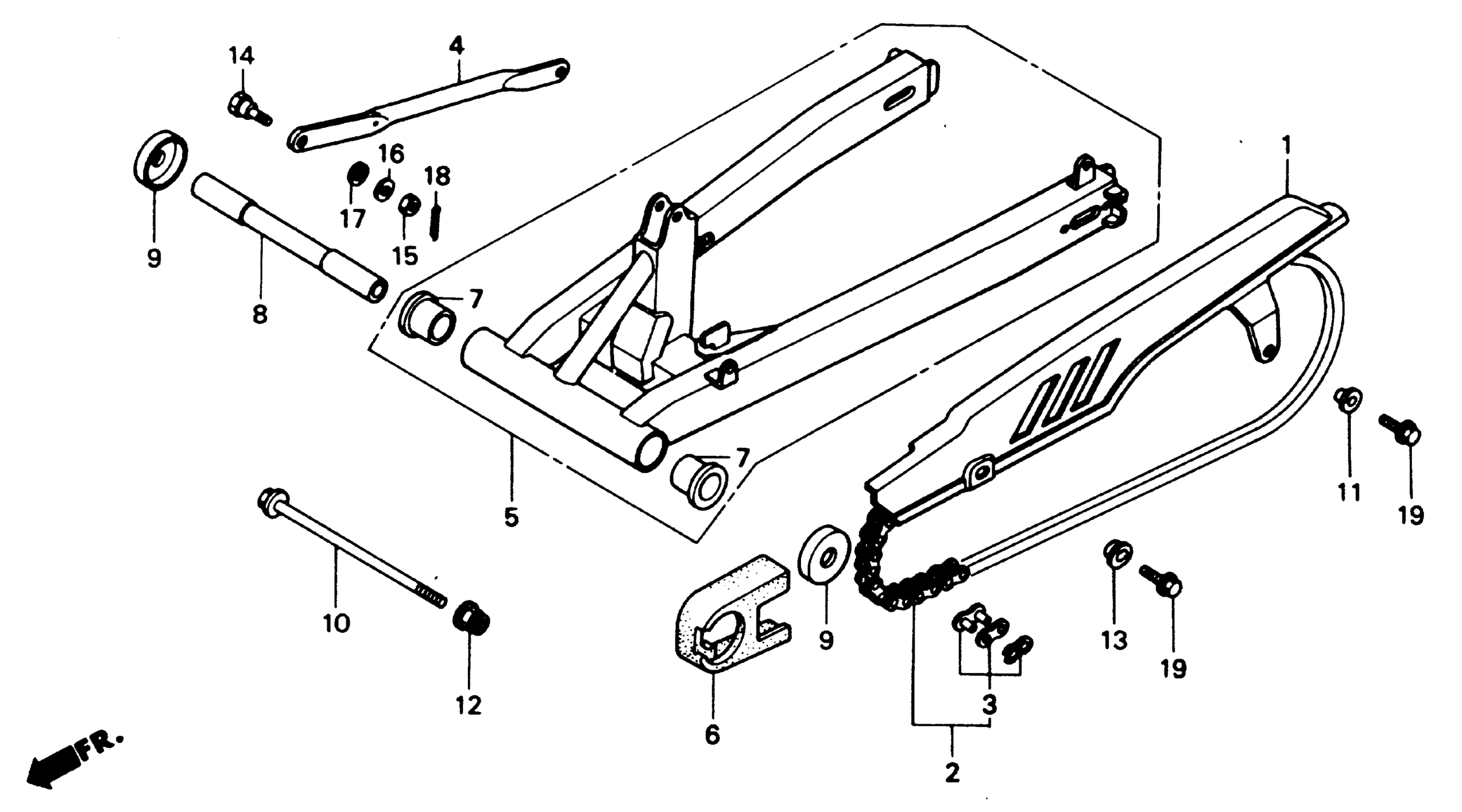

Honda NS50FA (90) MOTORCYCLE, JPN, VIN# JH2AC080-LK000004 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-GE2-000

Unavailable

2

CHAIN, DRIVE (DID420MBK1-118RJ) (DAIDO)

40530-GE2-671

Unavailable

2

CHAIN, DRIVE (RK420MS-118RJ) (TAKASAGO)

40530-GE2-672

Unavailable

3

MASTER LINK (DAIDO)

40531-GC4-602

$2.38

3

MASTER LINK (TAKASAGO)

40531-GM7-641

$3.31

4

ARM, RR. BRAKE STOPPER

43431-GE2-000

Unavailable

5

SWINGARM ASSY. *NH1* (BLACK)

52100-GE2-670ZA

Unavailable

6

SLIDER, CHAIN

52107-GE2-000

Unavailable

7

BUSH, SWINGARM

52108-KE5-003

$21.68

8

COLLAR, SWINGARM PIVOT

52141-GE2-670

Unavailable

9

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-GE2-003.

52144-GE2-005

$16.27

9

CAP, SWINGARM DUST SEAL (NOK)

52144-GE2-005

$16.27

10

BOLT, SWINGARM PIVOT

90121-GE2-000

Unavailable

11

COLLAR, REFLECTOR SETTING (NOT AVAILABLE)

90129-MA1-740

Unavailable

12

NUT, U (14MM)

90305-GE8-003

$3.86

13

WASHER (6X9)

90513-405-000

$2.09

13

WASHER (6X9) This part replaces 90513-428-900.

90513-405-000

$2.09

14

BOLT A, STOPPER ARM

92812-10000

$2.92

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

WASHER, SPRING (8MM)

94111-10000

$1.49

18

PIN, COTTER (2.0X15)

94201-20150

$1.49

19

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
