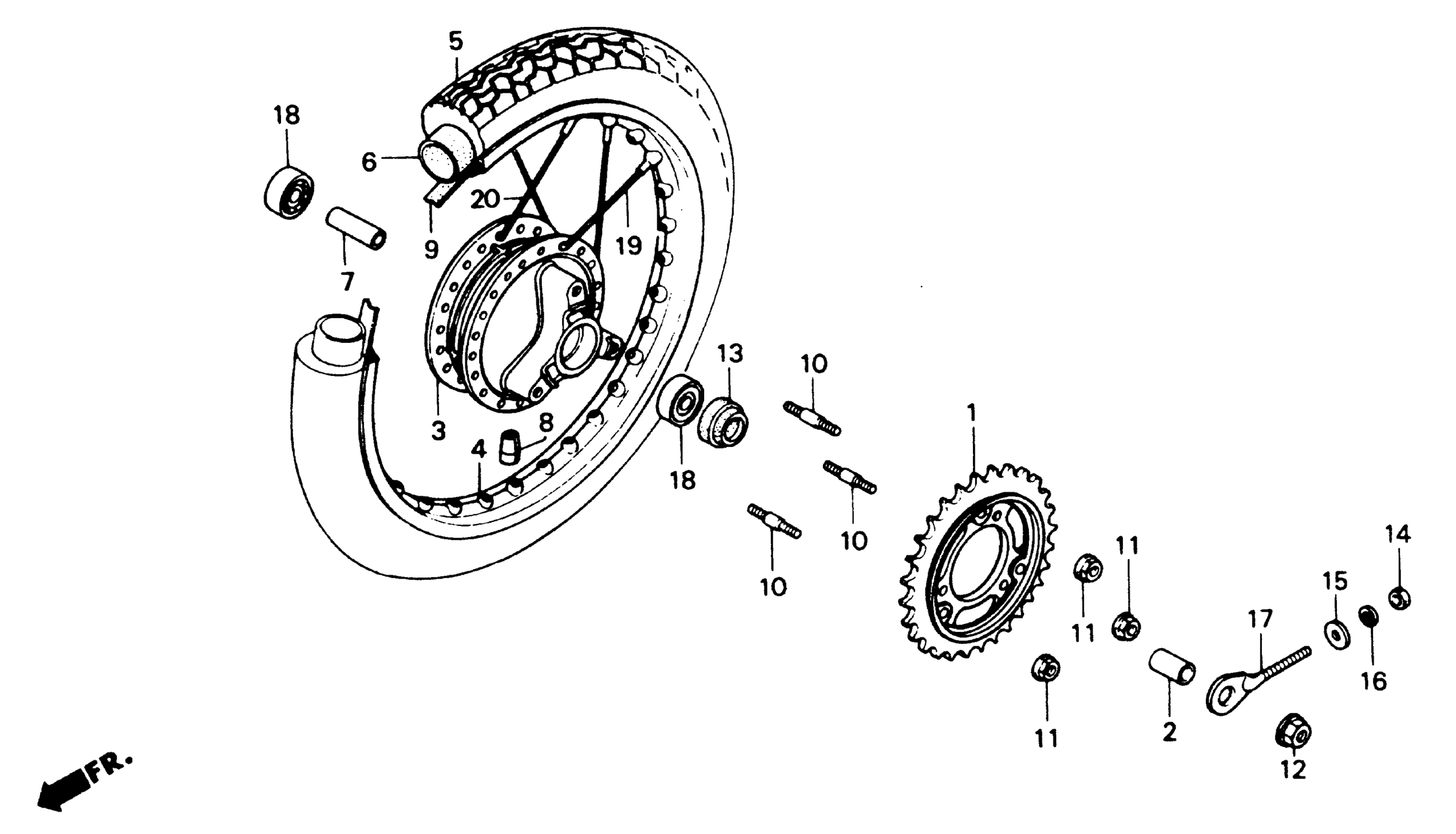

Honda NS50FA (90) MOTORCYCLE, JPN, VIN# JH2AC080-LK000004 REAR WHEEL Diagram

#

Description
Price

1

SPRKT,COMP.,FINAL This part replaces 41200-GJ1-770.

41200-GJ1-505

Unavailable

2

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-169-700

Unavailable

3

HUB, RR. WHEEL

42601-167-000

Unavailable

4

RIM, RR. WHEEL (NOT AVAILABLE)

42701-GE2-671

Unavailable

5

TIRE, RR. (3.00-17) This part replaces 42711-GE2-761.

42711-GE2-892

Unavailable

5

TIRE, RR. (3.00-17) This part replaces 42711-GE2-762.

42711-GE2-892

Unavailable

6

TUBE, TIRE (2.75-17) (INOUE)

42712-102-761

Unavailable

6

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-303-003.

42712-102-761

Unavailable

6

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-383-004.

42712-102-761

Unavailable

6

TUBE, TIRE (3.00-17) (NITTO)

44712-303-006

Unavailable

7

COLLAR, DISTANCE

44602-098-000

Unavailable

8

BALANCER, WHEEL (20G)

44606-283-000

$8.89

9

FLAP, TIRE (17) (BS)

44713-GC4-003

$6.39

10

BOLT, STUD (10X31)

90125-GE2-740

$6.34

11

NUT, U (10MM)

90304-GE8-003

$3.67

12

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

13

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

13

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

WASHER, PLAIN (6MM)

94103-06000

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49

17

ADJUSTER S, R. CHAIN

95014-10010

$4.53

18

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

19

SPOKE SET (A10X155)

97282-41155-P0

Unavailable

20

SPOKE SET (A10X154)

97658-41154-P0

Unavailable
