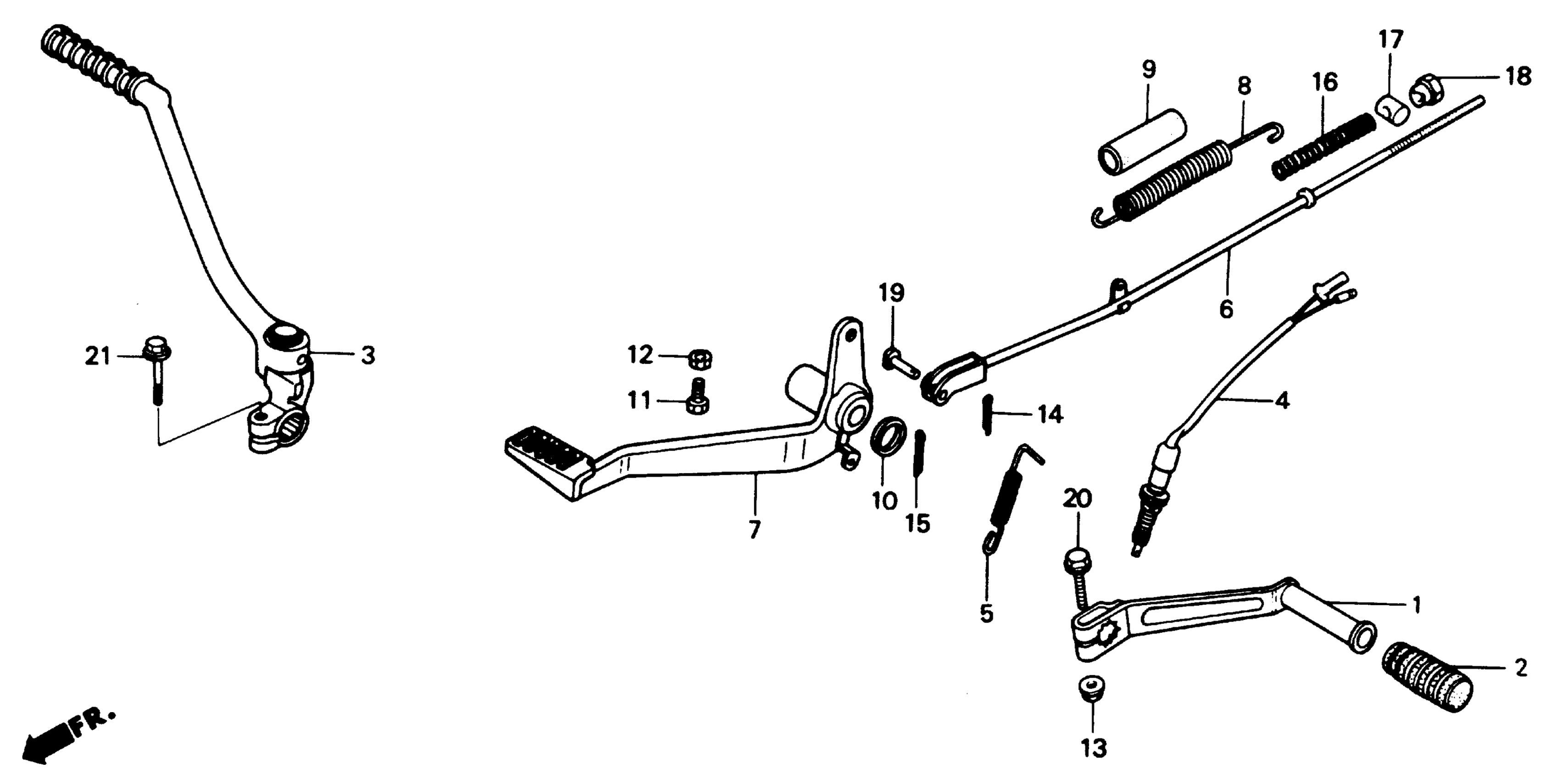

Honda NS50FA (90) MOTORCYCLE, JPN, VIN# JH2AC080-LK000004 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-GE2-000

Unavailable

2

RUBBER, GEARSHIFT

24781-449-000

$3.57

3

ARM ASSY., KICK STARTER

28300-GT4-000

Unavailable

4

SWITCH ASSY., RR. STOP

35350-GN8-601

Unavailable

5

SPRING, STOP SWITCH This part replaces 35357-GE2-000.

35357-KY2-700

$5.90

5

SPRING, STOP SWITCH

35357-KY2-700

$5.90

6

ROD, RR. BRAKE (NOT AVAILABLE)

43451-GE2-670

Unavailable

7

PEDAL, RR. BRAKE This part replaces 46500-GE2-670.

46500-GE3-760

Unavailable

8

SPRING, BRAKE PEDAL

46514-KR1-600

Unavailable

9

*95005-12001-30M This part replaces 46515-KB9-000.

95005-12060-30

Unavailable

10

WASHER (14.5)

90512-GE2-000

Unavailable

11

BOLT, HEX. (6X25)

92201-06025-0G

$0.53

12

NUT, HEX. (6MM)

94001-06070-0S

$1.49

13

NUT, FLANGE (6MM)

94050-06070

$1.49

14

PIN, COTTER (2.0X12)

94201-20120

$1.49

15

PIN, COTTER (2.5X22)

94201-25220

$1.49

16

SPRING A, BRAKE ROD

95014-73100

$1.49

17

JOINT, BRAKE ARM

95015-32001

$1.49

18

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

19

PIN, JOINT (C)

95015-53000

$3.06

20

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

21

BOLT, FLANGE (8X25)

96300-08025-07

$2.09
