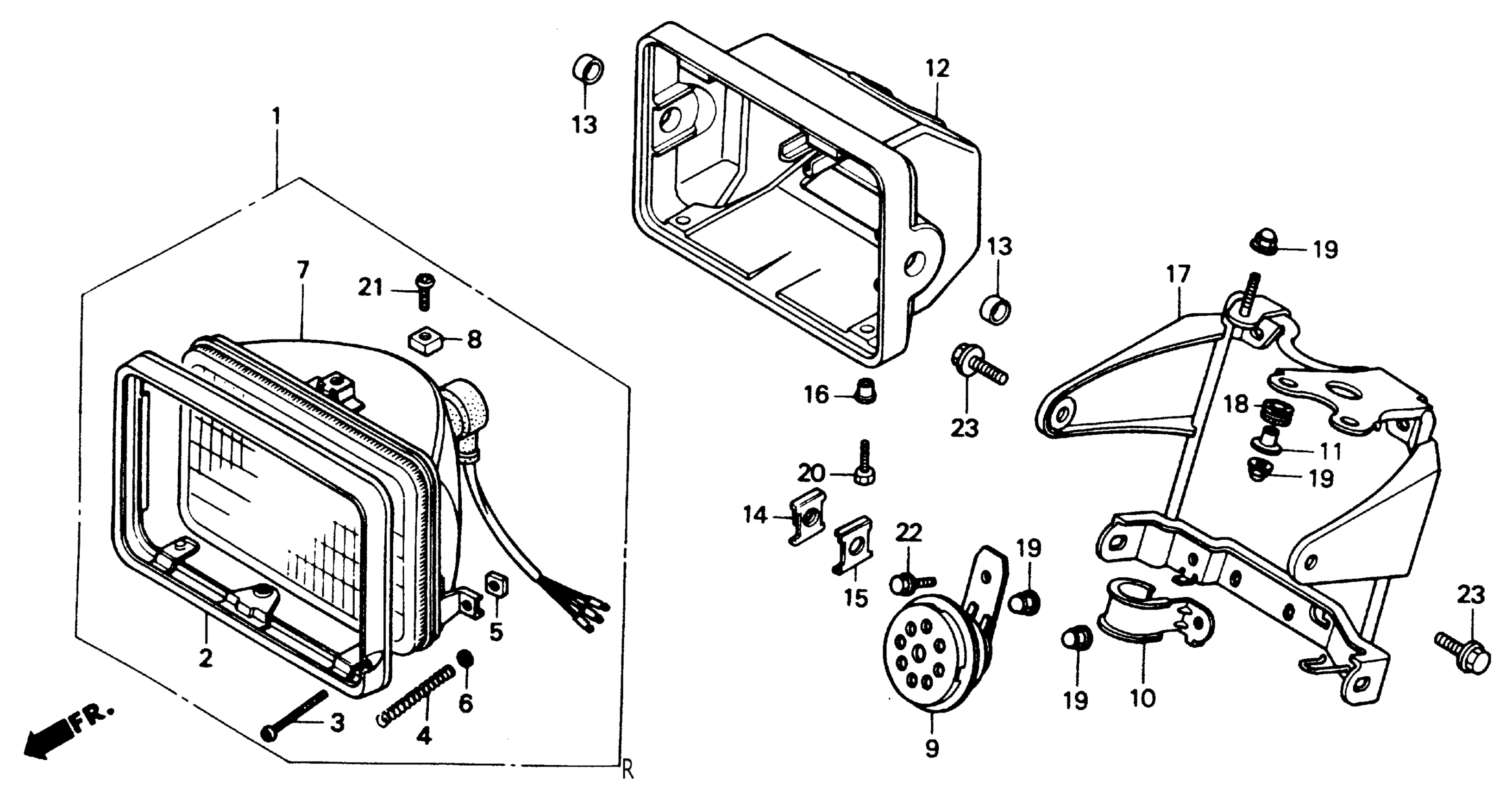

Honda NS50FA (90) MOTORCYCLE, JPN, VIN# JH2AC080-LK000004 HEADLIGHT Diagram

HEADLIGHT ASSY. (12V 35/35W)

33100-GE2-671

Unavailable

RIM, HEADLIGHT

33101-GE2-670

Unavailable

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

HEADLIGHT UNIT

33120-441-860

Unavailable

NUT, UNIT HOLDER

33128-471-003

$1.62

HORN This part replaces 38110-GM8-671.

38110-GM8-674

$39.03

HORN This part replaces 38110-GM8-673.

38110-GM8-674

$39.03

CLIP A, HARNESS

50305-MK7-000

Unavailable

COLLAR, SETTING

61104-422-000

$6.91

CASE, HEADLIGHT

61301-471-000

Unavailable

COLLAR, HEADLIGHT CASE

61302-471-000

Unavailable

NUT, HEADLIGHT CASE

61303-105-000

$3.81

WASHER, HEADLIGHT CASE

61303-229-000

$2.67

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

STAY, HEADLIGHT

61311-GE2-671

Unavailable

RUBBER, TAILLIGHT SETTING

84703-425-000

$4.72

NUT, FLANGE CAP (6MM)

90301-MA6-003

$2.33

BOLT, HEX. (5X16)

92101-05016-0G

Unavailable

SCREW, PAN (5X8)

93500-05008-0H

$1.49

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (8X25)

96300-08025-07

$2.09
