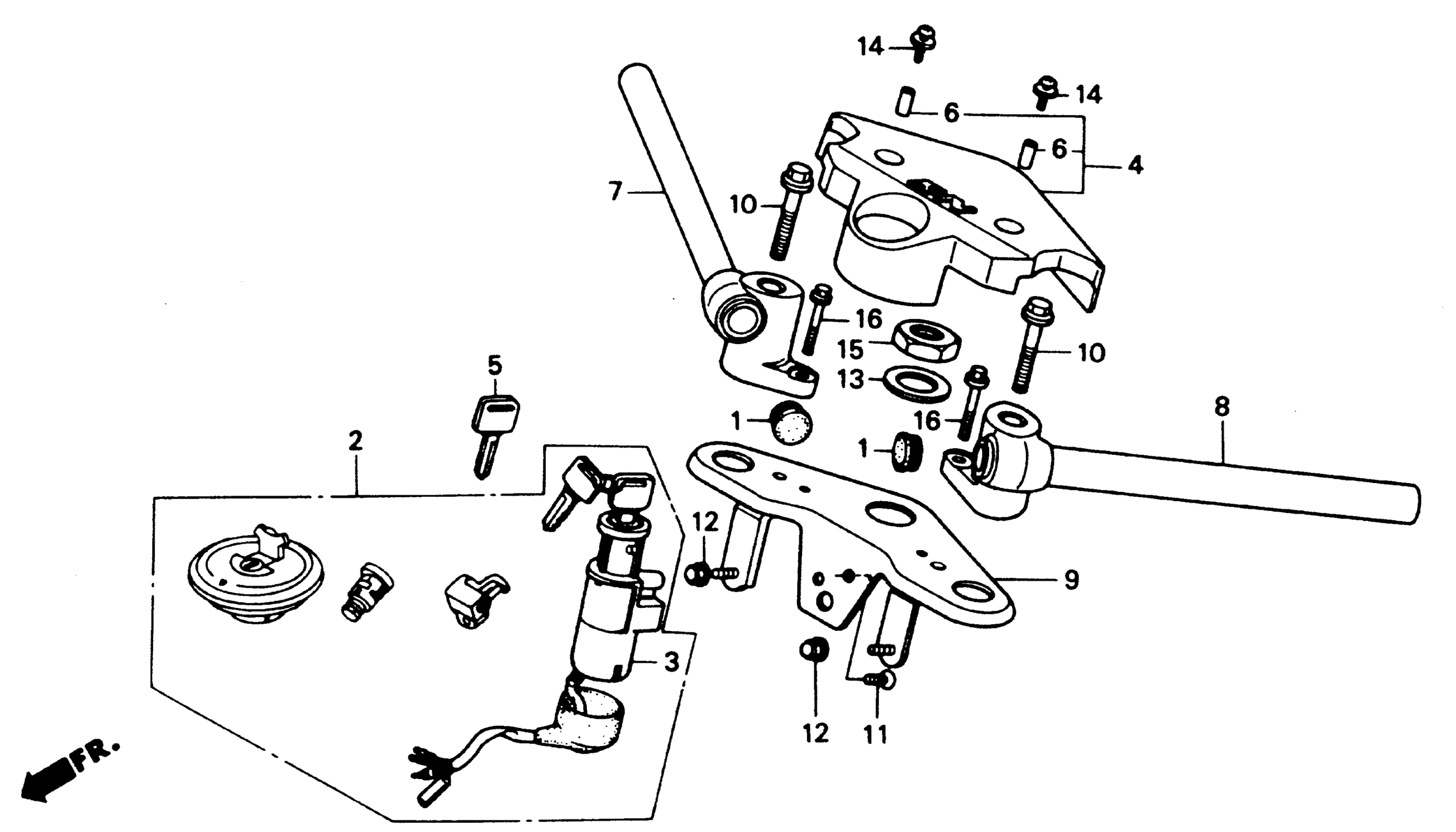

Honda NS50FA (90) MOTORCYCLE, JPN, VIN# JH2AC080-LK000004 HANDLEBAR Diagram

#

Description
Price

1

GROMMET, SIDE COVER (A)

19902-865-780

$4.28

2

LOCK SET This part replaces 35010-GE2-670.

35010-GE2-671

Unavailable

2

LOCK SET

35010-GE2-671

Unavailable

3

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-GE2-670.

35100-GE2-671

Unavailable

3

SWITCH ASSY., COMBINATION & LOCK

35100-GE2-671

Unavailable

4

COVER, COMBINATION SWITCH

35105-GE2-760

Unavailable

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-KB7-810.

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE1) | (Optional).

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-KB7-810.

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE2) | (Optional).

35122-KW3-771

$10.10

6

COLLAR, PRESS TALK SWITCH SETTING

35262-374-810

Unavailable

7

HANDLEBAR, R. STEERING

53100-GE2-671

Unavailable

8

HANDLEBAR, L. STEERING

53150-GE2-670

Unavailable

9

BRIDGE, FORK TOP

53230-GE2-670

Unavailable

10

BOLT, HANDLE SETTING

90124-GE2-760

Unavailable

11

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

12

NUT, FLANGE CAP (6MM)

90301-MA6-003

$2.33

13

WASHER, STEERING STEM

90503-166-010

Unavailable

14

SCREW-WASHER (5X32)

93891-05032-00

$1.49

14

SCREW-WASHER (5X32)

93891-05032-07

$1.49

15

NUT, STEERING STEM

95020-15100

$3.17

16

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

16

BOLT, FLANGE (8X25) This part replaces 95801-08025-00.

95701-08025-00

$1.79
