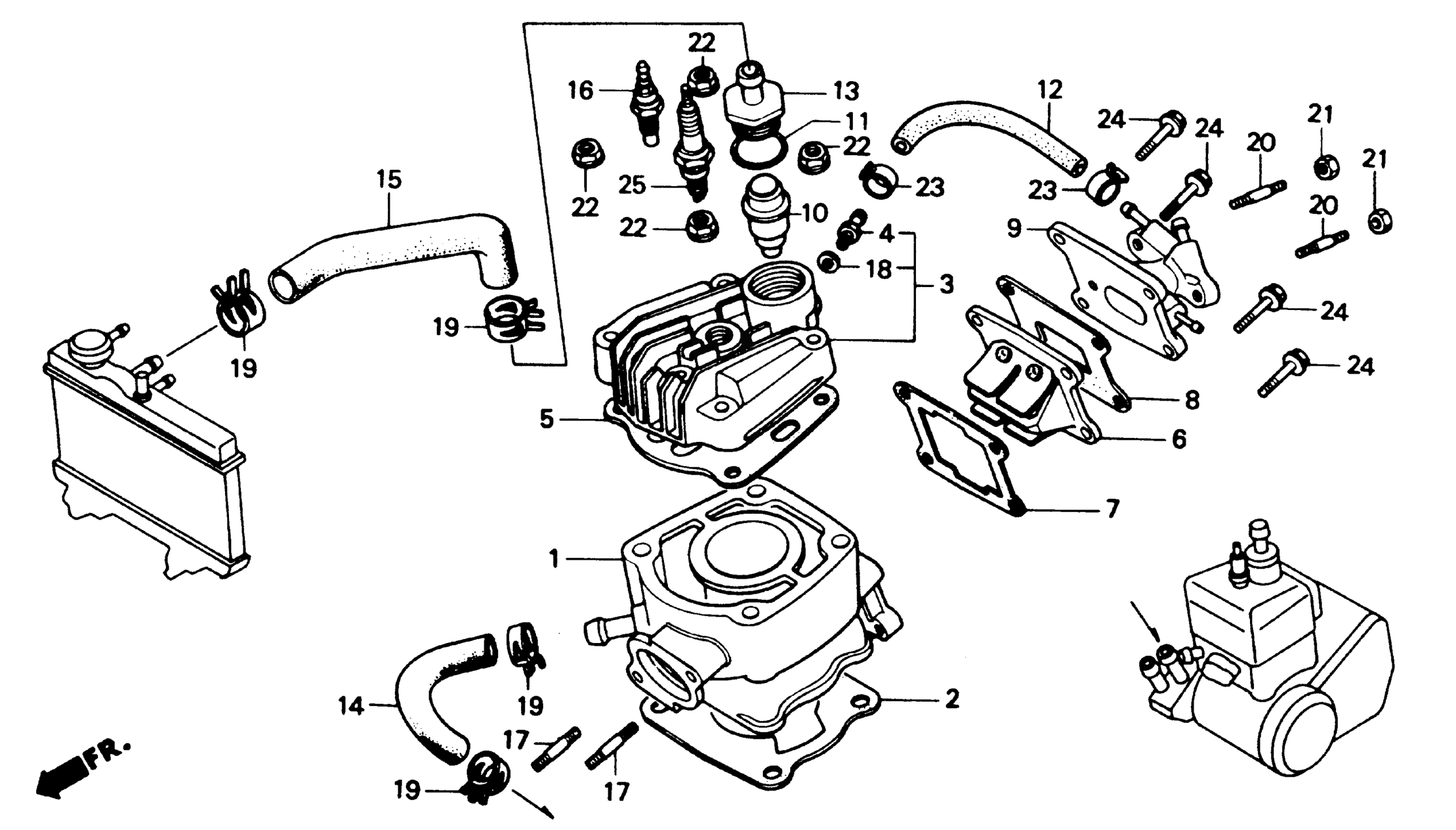

Honda NS50FA (90) MOTORCYCLE, JPN, VIN# JH2AC080-LK000004 CYLINDER Diagram

#

Description
Price

1

CYLINDER A

12110-GE2-890

Unavailable

1

CYLINDER A This part replaces 12120-GE2-890.

12110-GE2-890

Unavailable

1

CYLINDER A This part replaces 12130-GE2-890.

12110-GE2-890

Unavailable

2

GASKET, CYLINDER

12191-GAA-000

Unavailable

2

GASKET, CYLINDER This part replaces 12191-GT4-710.

12191-GAA-000

Unavailable

3

CYLINDER HEAD ASSY. (NOT AVAILABLE)

12210-GE2-670

Unavailable

4

JOINT, CYLINDER HEAD

12215-GE2-670

Unavailable

5

GASKET, CYLINDER HEAD

12251-GE2-013

Unavailable

6

VALVE, REED

14100-GE2-670

Unavailable

7

GASKET, REED VALVE This part replaces 14132-GAA-000.

14132-GT4-711

Unavailable

7

GASKET, REED VALVE This part replaces 14132-GE2-000.

14132-GT4-711

Unavailable

7

GASKET, REED VALVE This part replaces 14132-GE2-306.

14132-GT4-711

Unavailable

8

GASKET B, REED VALVE This part replaces 14133-GE2-000.

14133-GE2-010

Unavailable

8

GASKET B, REED VALVE

14133-GE2-010

Unavailable

9

PIPE, INLET

17100-GE2-670

Unavailable

10

THERMOSTAT ASSY.

19300-GE2-003

Unavailable

11

O-RING (27.4X2.4) (ARAI) This part replaces 19310-GE2-000.

91302-567-003

$7.96

12

TUBE, WATER (5.3X110)

19313-GE2-670

Unavailable

13

COVER, THERMOSTAT

19315-GE2-760

Unavailable

14

HOSE A, WATER

19501-GT4-000

Unavailable

15

HOSE B, WATER

19502-GE2-670

Unavailable

16

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$81.34

17

BOLT, STUD (6X25)

90032-399-000

$2.34

18

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

19

CLAMP, CANISTER HOSE

90682-SB0-671

$9.93

20

BOLT 2, STUD (8X22) This part replaces 92700-08035-1B.

92900-08022-1B

$2.13

20

BOLT 2, STUD (8X22)

92900-08022-1B

$2.13

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, FLANGE (8MM)

94050-08000

$1.49

23

CLIP, TUBE (D10.5)

95002-41050-04

$2.41

24

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

25

SPARK PLUG (BR7ES) (NGK) | (Optional). This part replaces 98079-57816.

98079-57877

$3.21

25

SPARK PLUG (W22ESR-U) (DENSO) | (Optional).

98079-57827

Unavailable

25

SPARK PLUG (BR7ES) (NGK) | (Optional). This part replaces 98079-57847.

98079-57877

$3.21

25

SPARK PLUG (BR7ES) (NGK) | (Optional).

98079-57877

$3.21

25

SPARK PLUG (BR8ES) (NGK) This part replaces 98079-58816.

98079-58846

$2.62

25

SPARK PLUG (W24ESR) (DENSO) This part replaces 98079-58827.

98079-58857

$2.61

25

SPARK PLUG (BR8ES) (NGK)

98079-58846

$2.62

25

SPARK PLUG (W24ESR) (DENSO)

98079-58857

$2.61

25

SPARK PLUG (BR9ES) (NGK) | (Optional). This part replaces 98079-59816.

98079-59847

$2.44

25

SPARK PLUG (W27ESR-U) (DENSO) | (Optional).

98079-59827

Unavailable

25

SPARK PLUG (BR9ES) (NGK) | (Optional).

98079-59847

$2.44

25

SPARK PLUG (BR9ES) (NGK) | (Optional). This part replaces 98079-59847-01.

98079-59847

$2.44
