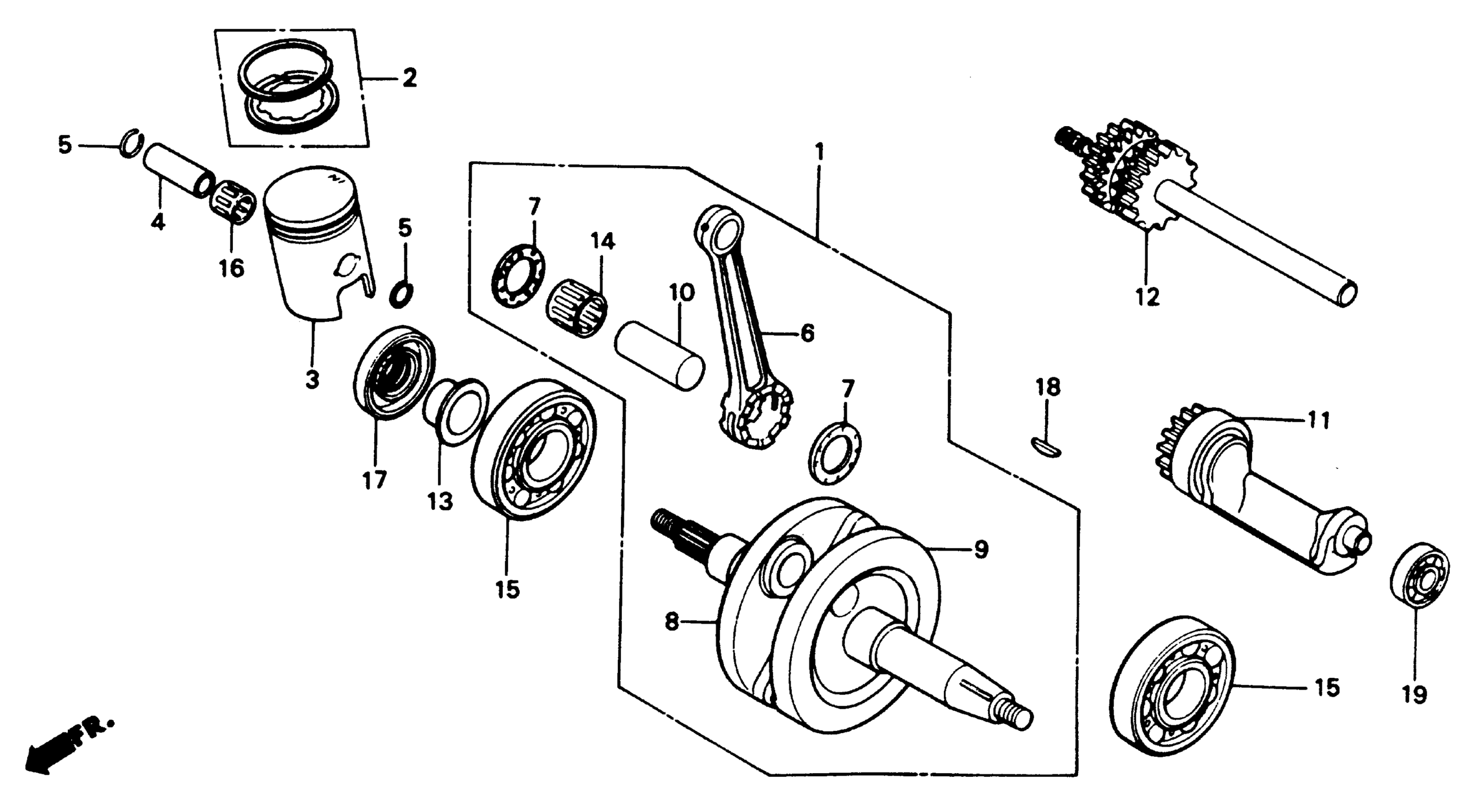

Honda NS50FA (90) MOTORCYCLE, JPN, VIN# JH2AC080-LK000004 CRANKSHAFT Diagram

CRANKSHAFT This part replaces 13000-GE2-030.

13000-GT4-690

Unavailable

CRANKSHAFT This part replaces 13000-GE2-040.

13000-GT4-690

Unavailable

CRANKSHAFT

13000-GT4-690

Unavailable

RING SET, PISTON (STD)

13011-GE2-305

Unavailable

RING SET, PISTON (OS 0.25) | (Optional).

13012-GE2-305

Unavailable

RING SET, PISTON (OS 0.50) | (Optional).

13013-GE2-305

Unavailable

PISTON (OS) (0.25) | (Optional). This part replaces 13102-GE2-305.

13102-GE2-505

$42.95

PISTON (OS 0.50) | (Optional).

13103-GE2-305

Unavailable

PISTON A This part replaces 13110-GE2-890.

13110-GE2-505

Unavailable

PISTON B This part replaces 13120-GE2-890.

13120-GE2-505

$38.72

PISTON C This part replaces 13130-GE2-890.

13130-GE2-505

Unavailable

PIN, PISTON This part replaces 13111-166-000.

13111-GZ0-000

$13.23

CLIP, PISTON PIN (12MM)

13115-156-000

$2.92

ROD, CONNECTING

13201-GE2-320

Unavailable

PLATE CON-ROD SID This part replaces 13202-166-003.

13202-GT4-691

$9.45

CRANKSHAFT, R.

13311-GE2-300

Unavailable

CRANKSHAFT, L.

13321-GE2-300

Unavailable

PIN, CRANK

13381-GT4-300

Unavailable

SHAFT, BALANCER

13420-GE2-000

$134.07

SHAFT, BALANCER IDLE

13430-GT5-690

Unavailable

SHAFT, BALANCER IDLE This part replaces 13430-166-000.

13430-GT5-690

Unavailable

COLLAR, DRIVE GEAR

13617-GE3-610

Unavailable

BEARING, CONNECTING ROD BIG END (RED) (TOMUSON)

91001-166-004

Unavailable

BEARING, CONNECTING ROD BIG END (BLUE) (TOMUSON) (NOT AVAILABLE)

91002-166-004

Unavailable

BEARING, CONNECTING ROD BIG END (WHITE) (TOMUSON) (NOT AVAILABLE)

91003-166-004

Unavailable

BEARING, RADIAL BALL (6205)

91004-GE3-000

$31.84

BEARING, CONNECTING ROD SMALL END (TOMUSON)

91102-GC8-004

$14.67

OIL SEAL (28X40X8)

91206-GE3-611

$13.46

KEY, WOODRUFF (25X14)

94401-25140

$1.75

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08
