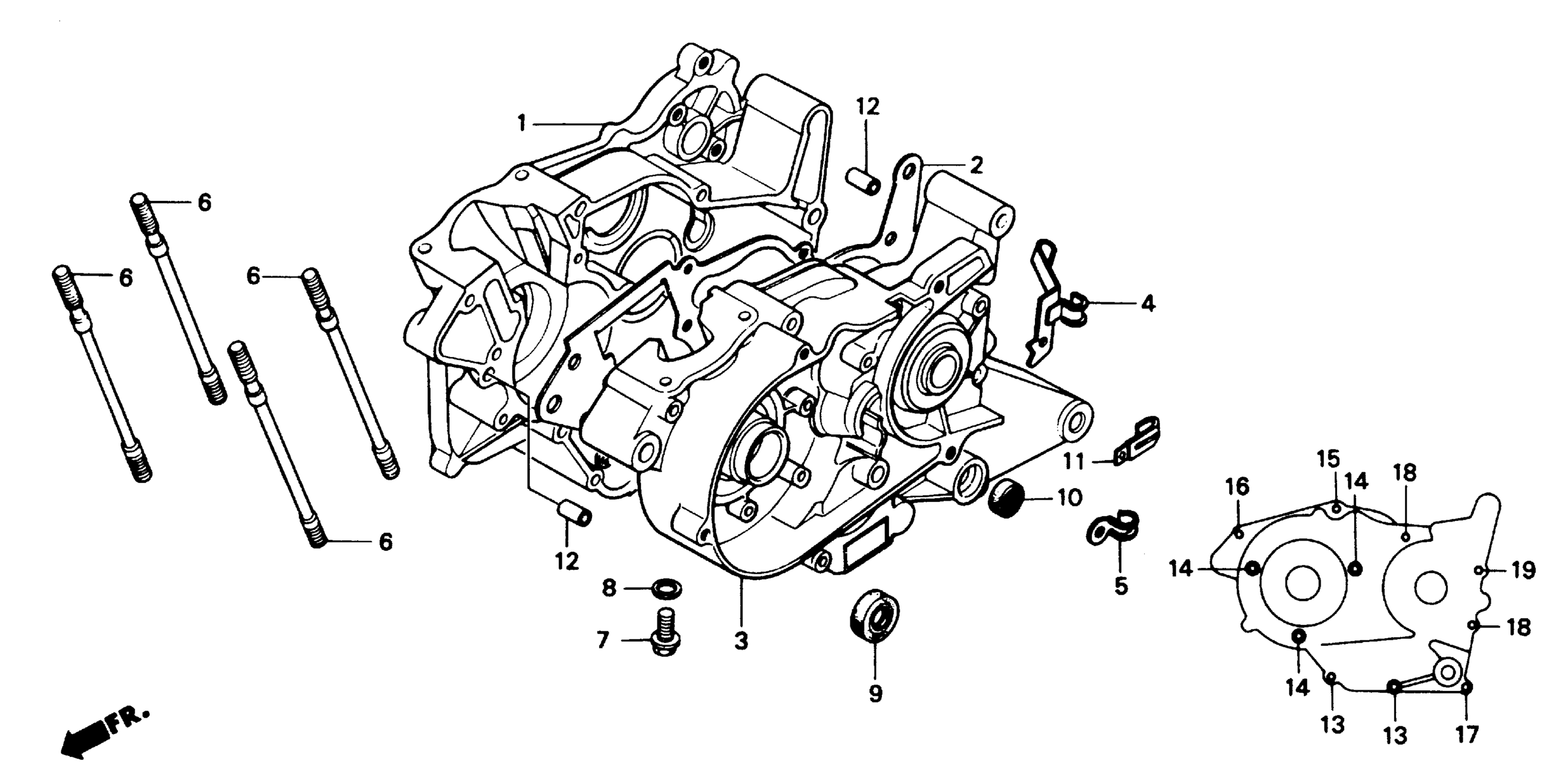

Honda NS50FA (90) MOTORCYCLE, JPN, VIN# JH2AC080-LK000004 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-GE4-040.

11100-GE4-050

$362.05

1

CRANKCASE, R.

11100-GE4-050

$362.05

2

GASKET, CRANKCASE

11191-GAA-000

$12.66

2

GASKET, CRANKCASE This part replaces 11191-GE2-010.

11191-GAA-000

$12.66

2

GASKET, CRANKCASE This part replaces 11191-GE2-306.

11191-GAA-000

$12.66

3

CRANKCASE, L.

11200-GE4-020

Unavailable

4

CLAMP, OVERFLOW TUBE

16236-GE2-670

Unavailable

5

CLIP, WIRE

32900-459-880

Unavailable

6

BOLT, CYLINDER STUD

90031-GE2-000

$5.89

7

BOLT, DRAIN PLUG (12MM) (NOT AVAILABLE)

90041-166-000

Unavailable

8

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

9

OIL SEAL (20X32X7) (NOK)

91205-166-004

$17.38

10

OIL SEAL (12X22X7) (ARAI) This part replaces 91209-612-000.

91209-612-003

$9.83

10

OIL SEAL (12X22X7) (ARAI)

91209-612-003

$9.83

10

OIL SEAL (12X22X7) (ARAI) This part replaces 91209-612-005.

91209-612-003

$9.83

11

CLIP, WIRE

91406-166-000

$3.83

12

PIN, DOWEL (8X20)

94301-08200

$2.25

13

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

14

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

15

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

16

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

17

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

18

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

19

BOLT, FLANGE (6X110)

96001-06110-00

$3.80
