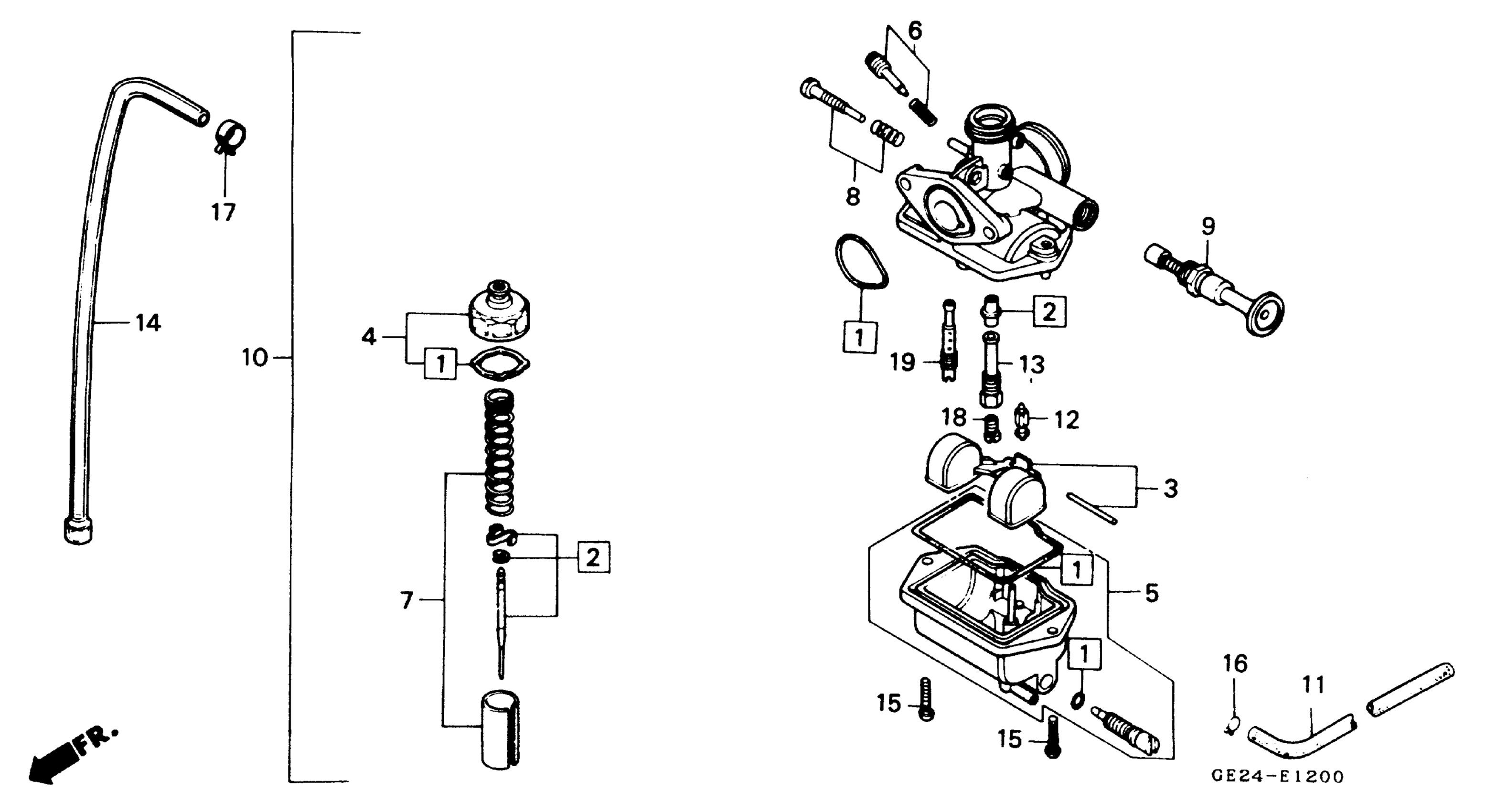

Honda NS50FA (90) MOTORCYCLE, JPN, VIN# JH2AC080-LK000004 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-166-004

$24.12

2

NEEDLE SET, JET

16012-GE2-670

Unavailable

3

FLOAT SET

16013-166-004

Unavailable

4

TOP SET

16014-GJ1-861

Unavailable

5

CHAMBER SET, FLOAT This part replaces 16015-166-004.

16015-166-014

$96.89

5

CHAMBER SET, FLOAT

16015-166-014

$96.89

6

SCREW SET, A

16016-GB4-003

$23.02

7

VALVE SET, THROTTLE

16022-GE2-761

Unavailable

8

SCREW SET B

16028-166-004

$19.87

9

VALVE, STARTER This part replaces 16046-166-004.

16046-166-014

Unavailable

9

VALVE, STARTER

16046-166-014

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-GE2-671.

16100-GE2-672

Unavailable

10

CARBURETOR ASSY.

16100-GE2-672

Unavailable

11

TUBE This part replaces 16144-MA1-671.

16199-MN5-405

$11.86

12

VALVE, FLOAT

16155-883-005

$20.11

13

HOLDER, NEEDLE JET

16165-GT4-003

Unavailable

14

TUBE, OIL

17504-147-010

$5.55

15

SCREW, PAN (4X16)

93500-04016-0H

$1.49

15

SCREW, PAN (4X16) This part replaces 93500-04016-08.

93500-04016-0H

$1.49

15

SCREW, PAN (4X16) This part replaces 93500-04016-1H.

93500-04016-0H

$1.49

16

CLIP, TUBE (B6.5)

95002-02650

$1.49

17

CLIP, TUBE (D8)

95002-40800-08

$2.25

18

JET, MAIN (#105) This part replaces 99101-166-1050.

99101-KFG-1050

$12.78

19

JET, SLOW (#40)

99103-168-0400

Unavailable
